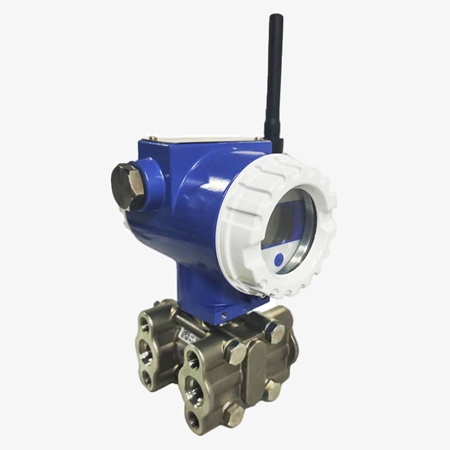

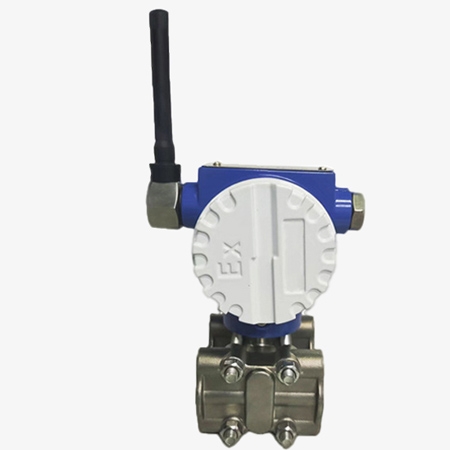

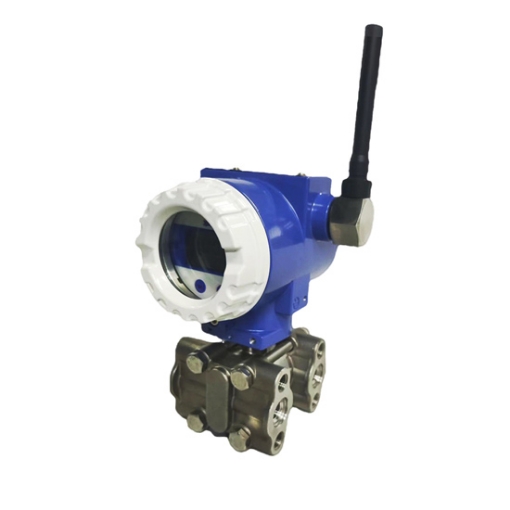

Wireless differential air pressure sensor is designed for remote pressure monitoring in industrial systems. It supports a 0–2000KPa pressure range with ±0.5%FS accuracy and uses a built-in 3.6V lithium battery for standalone operation. The IP65 design helps protect the sensor in demanding environments.
Hardware and Mechanical Performance
- Built‑in single‑silicon sensor core delivers low‑power operation and excellent signal penetration for tough industrial sites.
- Featuring die‑cast aluminum alloy housing and high protection rating, this wireless differential air pressure sensor withstands harsh on‑site working conditions.
- Lithium‑ion battery powered for standalone operation, eliminating the need for external power wiring.
- Boasts high measuring accuracy to ensure consistent, dependable measurement results.
Wireless Communication and Display Functions
- Comes with a 5‑digit LCD display to enable real‑time local data reading for the wireless differential air pressure sensor.
- Supports long‑range wireless transmission reaching up to 5000 m for wide‑area industrial deployment.
Enables automatic timed data upload, facilitating convenient remote monitoring of differential pressure values.
Application
Our wireless differential pressure sensor supports accurate measurement of gas and liquid media. It fits multiple industrial‑grade applications: wind pressure and flow velocity testing in industrial processes, dry‑gas measuring systems, pipe & furnace pressure measurement, and various pressure‑related monitoring projects in the petrochemical sector.

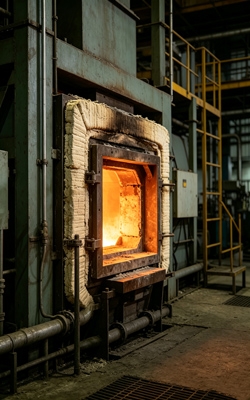

Furnace Pressure

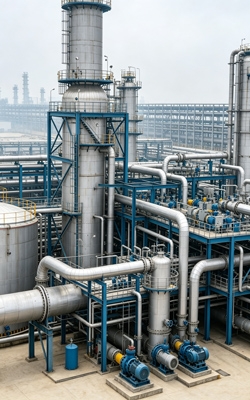

Petrochemical Industry

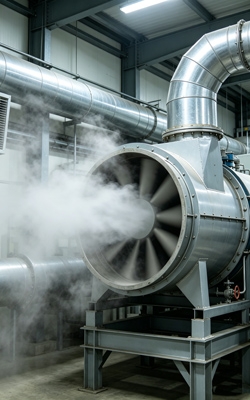

Wind Pressure

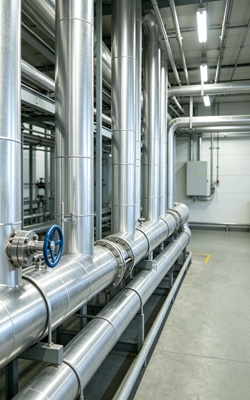

Pipe Pressure Measurement
Â
| Model | SISCO-DPS-GPT244 |
| Pressure Range | 0～2000KPa (Static Pressure < 20MPa) |
| Accuracy | ±0.5%FS |
| Measured Medium | Liquid / Gas |
| Power Supply | Built-in 3.6V Lithium Battery 7000mAh |
| Wireless Transmission | GFSK 433M 470M; Spread Spectrum 433M 470M; GPRS |
| Standby Power Consumption | < 0.03mA |
| Battery Life | 16 months (Tested at 25℃ with 1-second data sampling interval in GFSK mode) |
| Data Storage | 2000 records (Optional) |
| Data Retransmission | GPRS |
| Coordination Protocol | SWSN proprietary protocol |
| Transmission Distance | GFSK line-of-sight 1000 meters (80-160 meters in a conventional obstructed environment) |
| Spread Spectrum line-of-sight 5000 meters (500-1000 meters in a conventional obstructed environment) | |
| GPRS | |
| Working Environment | Temperature -30℃～80℃, Humidity < 95% non-condensing |
| Dimensions | 115 * 1 12 * 90mm (Header part, with antenna 115 * 112 * 220mm) |
| Protection Grade | IP65 |
| Explosion-proof Grade | dIICT6 (Optional) |
| Process Connection | M20*1.5 external thread, 1/2NPT external thread, flange, etc. |
| Probe Material | 304 stainless steel, 316, 316L, etc. |
| Weight | < 1500g (Header part) |

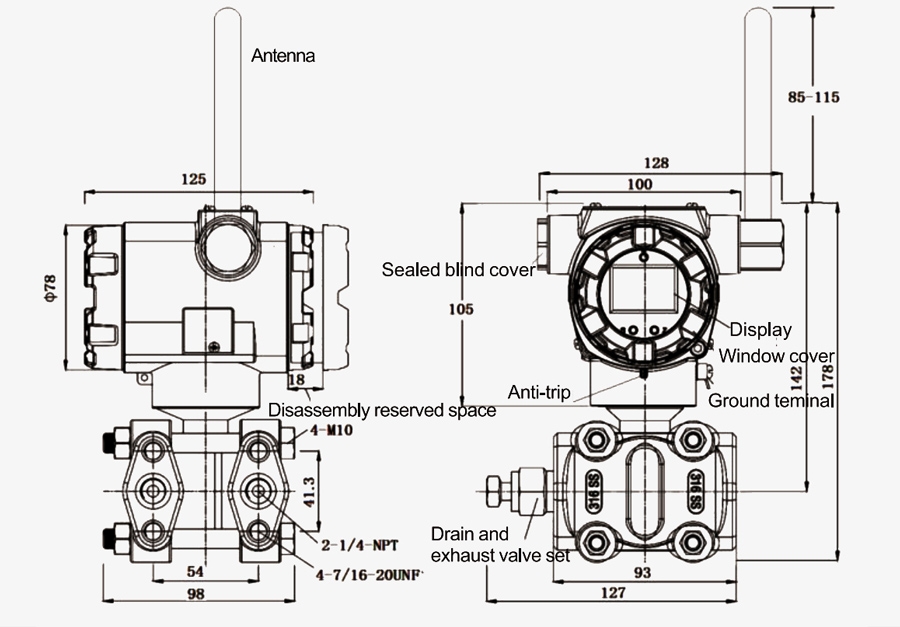

Dimensions (unit:Â mm)

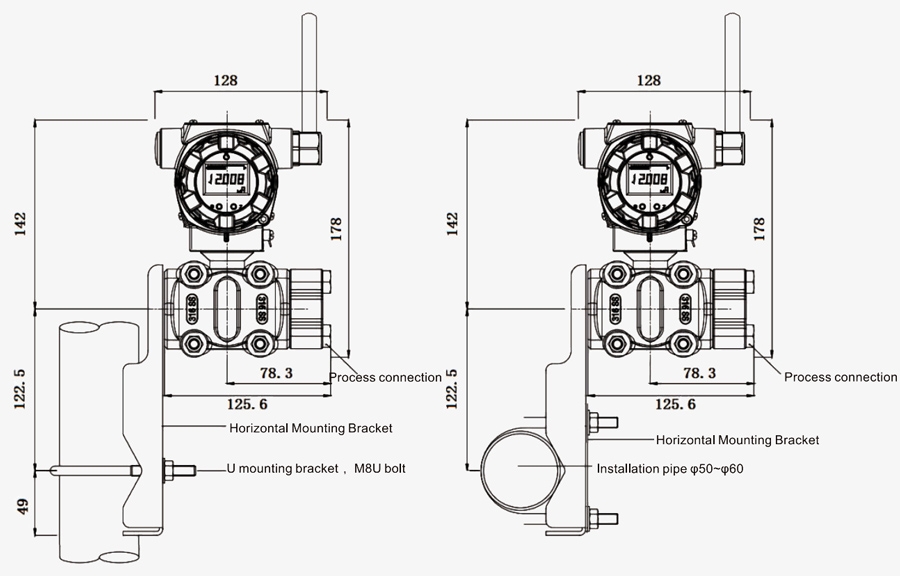

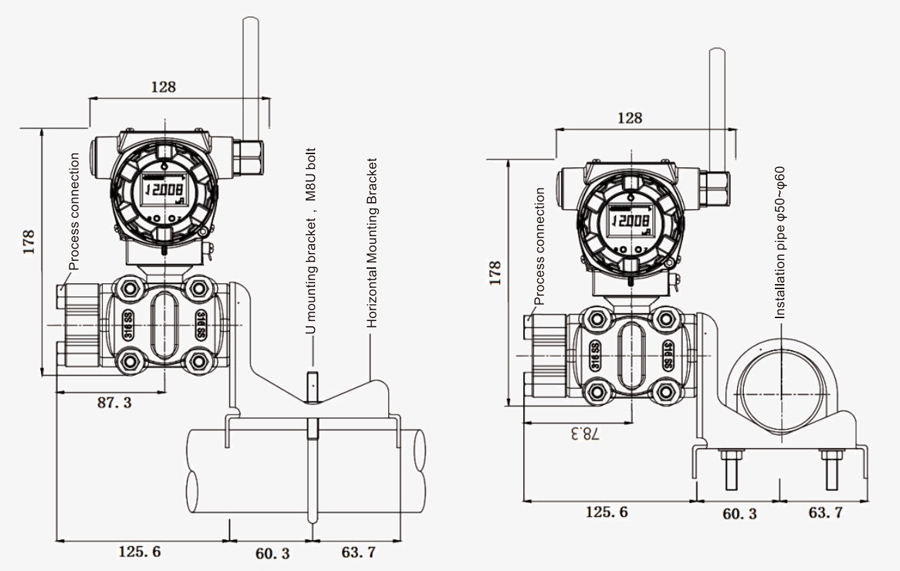

Installation
Q1: Can this wireless differential pressure sensor measure gas and liquid?
A1: Yes. The sensor can be used for pressure measurement involving gas and liquid media, provided that the selected probe and installation method are compatible with the specific medium and operating conditions.
Q2: What is the pressure range of this wireless differential air pressure sensor?
A2: This wireless differential air pressure sensor supports a 0–2000KPa pressure range. The static pressure should remain below 20MPa to ensure proper operation.
Q3: How much power does the wireless differential pressure sensor consume?
A3: The wireless differential pressure sensor has a standby power consumption of less than 0.03mA, helping extend battery life for long-term wireless monitoring applications.
Tips: Can this wireless differential pressure sensor be used for remote pressure monitoring?
Yes. This wireless differential pressure sensor is designed for remote pressure monitoring. Its wireless communication capability and built-in lithium battery make it suitable for remote and distributed pressure monitoring, especially where installing signal and power cables is difficult or costly.
