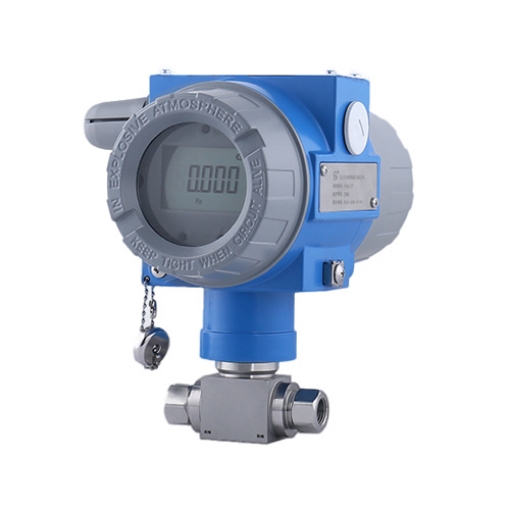

Differential pressure transmitter for liquid/gas is a wireless pressure monitoring solution designed for industrial process applications. Featuring NB-IoT connectivity, an LCD, and up to 10 years of battery life. With 0.5%FS accuracy and a 0~2.5MPa measurement range, it provides dependable differential pressure measurement for liquid and gas systems.
Hardware & Structural Performance
- Long-service-life 3.6V 19Ah*2 integrated lithium-thionyl chloride battery, fully sealed design, easy to replace for wireless differential pressure transmitter
- Imported wafer sensing core, low temperature drift, high stability for liquid & gas differential pressure measurement
- Isolated dust-proof explosion‑proof housing, suitable for various hazardous industrial working conditions

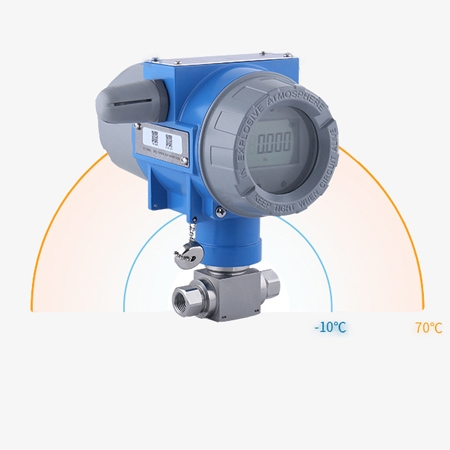

- Wide temperature compensation range: -10℃~70℃, algorithm‑driven correction minimizes temperature-related measuring deviation
Wireless Communication & Human-Machine Interaction
- NB-IoT wireless remote transmission, no field wiring needed for this differential pressure transmitter
- Remote parameter setup, data storage & historical data access via PC and mobile APP
- Compatible with signal base stations and intelligent data collectors for industrial pressure monitoring
- Button-free magnetic wake-up LCD with backlight, readable in dark environments for on-site quick inspection
Application
This wireless differential pressure transmitter measures the differential pressure of material‑compatible liquids and gases. Mainly applied in industrial, water supply & drainage pipe networks, smart fire‑water systems, comprehensive pipe galleries, smart medical, and smart park projects. Custom products are available for special working conditions.

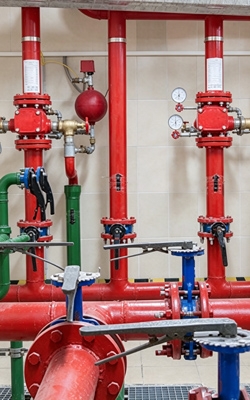

Fire-Fighting Water System

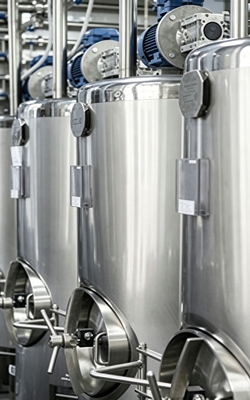

Water Supply Drainage
Building Intelligence System

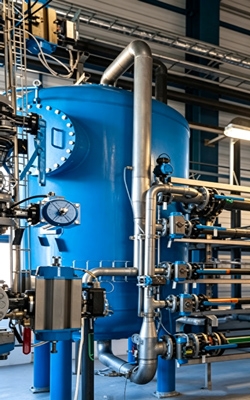

Water Supply Network
| Model | SISCO-DPS-CYYZ106 |
| Measuring medium | Liquid or gas (compatible with contact material) |
| Measurement range | 0~2.5MPa (optional) |
| Pressure mode | Differential pressure |
| Medium temperature | -40~85℃ |
| Accuracy | 0.5%FS (differential pressure range to rated range ratio <1:2.5) |
| Temperature compensation | -10~70℃ |
| Temperature drift | ±0.01%FS/℃ (within temperature compensation range) |
| ±0.05%PS/℃ (outside temperature compensation range) | |
| Stability | ±0.1% FS/year |
| Battery life | ≤ 10years |
| Network standard | NB-IoT |
| Protection level | IP66 |
| Display type | LCD display |
| Durability | 1X106 times (number of cycles from lower limit to upper limit of range) |
| Overall weight | About 2.5kg |
| Resolution | 0.05%FS |
| Environmental humidity | 0%~95%RH (no condensation and no condensation) |
| Diaphragm material | 316L stainless steel |

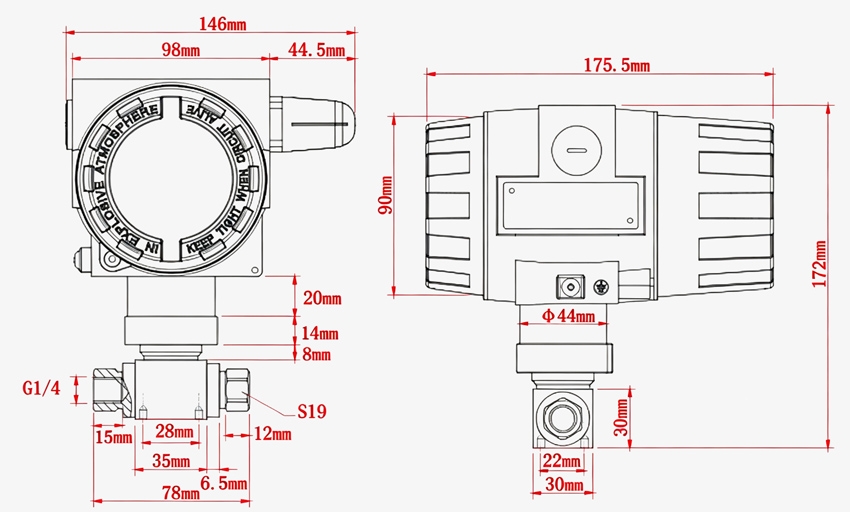

Dimensions (unit: mm)
Q1: Does the differential pressure transmitter support wireless communication?
A1: Yes, this differential pressure transmitter supports NB-IoT wireless communication. It enables remote data transmission without additional wiring, making it suitable for smart monitoring systems and remote industrial installations.
Q2: Does the differential pressure transmitter have temperature compensation?
A2: Yes, the differential pressure transmitter features temperature compensation from -10~70℃. The compensation function helps reduce measurement errors caused by temperature changes and improves long-term measurement stability.
Q3: What is the measuring range of the differential pressure transmitter?
A3: The measuring range of this differential pressure transmitter is 0~2.5MPa (optional). It is designed for measuring differential pressure in various liquid and gas applications, with flexible range selection based on different industrial process requirements.
Tips: What causes measurement errors in a differential pressure transmitter?
Measurement errors in a differential pressure transmitter are mainly caused by temperature changes, incorrect installation, pressure overload, medium compatibility issues, and sensor calibration deviation.
- Temperature variation: Changes in ambient or medium temperature can affect sensor output. A differential pressure transmitter with temperature compensation helps reduce errors caused by temperature fluctuations.
- Incorrect installation: Improper mounting, incorrect pressure connections, vibration, or air bubbles in the process line may lead to inaccurate differential pressure readings.
- Pressure overload: Operating beyond the rated pressure range can affect sensor performance and may cause measurement deviation or damage to the sensing element.
- Medium compatibility issues: If the measured liquid or gas is not compatible with the diaphragm material, it may cause corrosion or affect measurement stability. Selecting suitable materials, such as a 316L stainless steel diaphragm, helps improve reliability.
- Calibration and sensor aging: Long-term operation may cause small measurement drift. Regular calibration and using a stable sensor core help maintain measurement accuracy.
