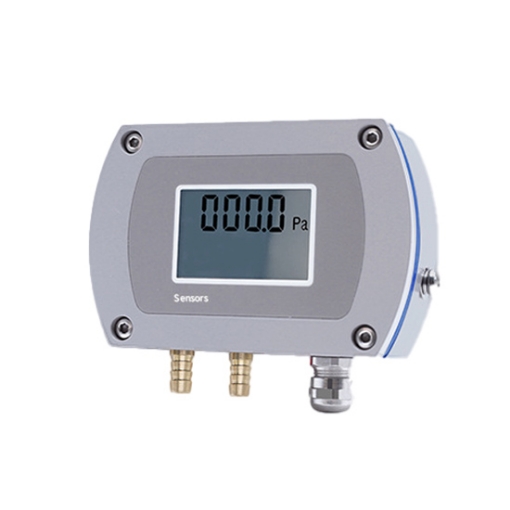

The explosion-proof differential pressure sensor measures gas differential pressure across a -100kPa to 100kPa range. Its 0.5%FS accuracy, 20ms turn-on time, and IP65 protection provide responsive and dependable pressure monitoring for industrial applications.
- Patented Appearance Design: This differential pressure sensor features a robust metal housing with concealed rear mounting holes to achieve a clean, neat look for field installation.

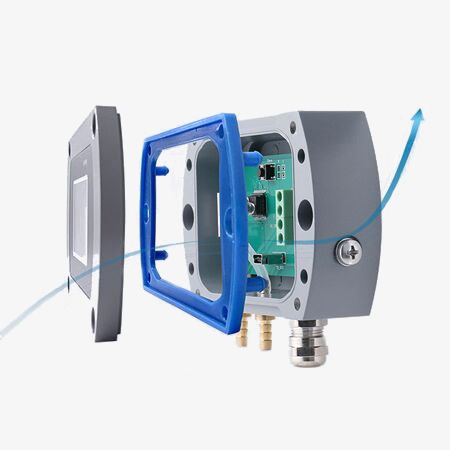

- Optimized Sealing Groove Structure: Adopts an upgraded sealing gasket rather than standard sealing rings, bringing superior protection performance to withstand harsh industrial site environments.
- Patented Buffer‑type Port Structure: Built‑in air damping inside this explosion‑proof differential pressure sensor effectively boosts long‑term overall working stability during pressure measurement.
- Traceable Metal Nameplate: Laser‑engraved stainless‑steel nameplate enables full product traceability, delivering anti‑wear performance and extended service life for on‑site industrial deployment.

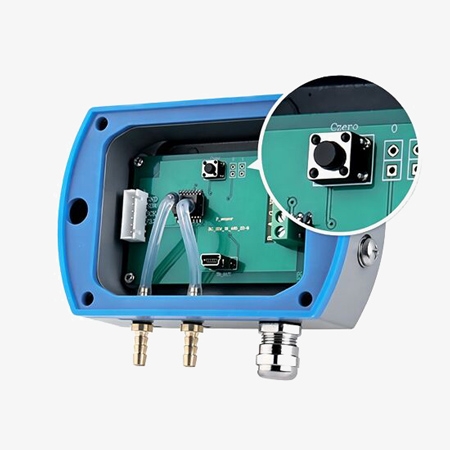

- Convenient Zero‑point Adjustment Button: Fitted with an on‑board zero‑trim button. Operators can quickly calibrate zero offset directly on‑site without extra tools, simplifying routine maintenance for the differential pressure sensor.
Applications
This explosion‑proof differential pressure sensor measures gases compatible with contacted materials, widely used for industrial equipment, blowers, air compressors, HVAC ventilation and heating systems, industrial gas supply & fire‑protection gas systems, as well as indoor‑outdoor environmental monitoring in commercial buildings, clean rooms, hospital wards, and agricultural greenhouses, and so on.
HVAC
Industrial Gases Monitoring
Outdoor Environmental
Industrial Equipment
| Model | SISCO-DPS-CCY30 |
| Measured Medium | Gas (compatible with wetted materials) |
| Measurement Range | -100kPa～0～100kPa |
| Output Signal | 4～20mA, RS485, 0～5VDC, 0～10VDC, 1～5VDC |
| Pressure Type | Differential Pressure |
| Medium Temperature | -40～100℃ |
| Accuracy Class | 0.5%FS or 0.25%FS (Range ≥1kPa); 1%FS or 0.5%FS (Range ＜1kPa) |
| Temperature Compensation | -10～60℃ |
| Turn-on Time | 20ms |
| Response Frequency | Analog signal output ≤20Hz; Digital signal output ≤5Hz |
| Stability | ±0.3%FS/year (Range ≥1kPa); ±0.5%FS/year (Range ＜1kPa) |
| Temperature Drift | ±0.03%FS/℃ (within temperature compensation range) |
| Ingress Protection | IP65. Note: The above protection rating is achieved after complete electrical connection. |
| Durability | 1×10⁶ cycles (full-range cycles from lower to upper limit) |
| Overall Weight | ≈380g (without display); ≈400g (with display) |
| Resolution | 0.01%FS for analog output; 0.05%FS for digital output |

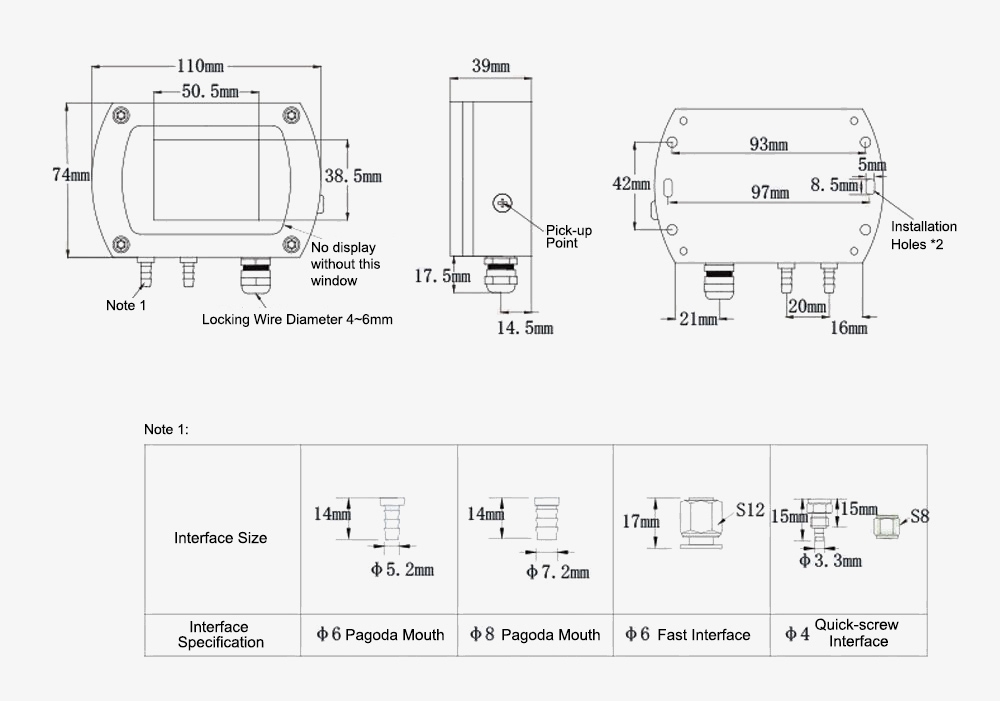

Dimensions (unit: mm)
Wiring Diagram

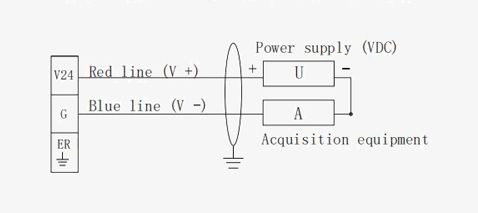

Current Output Wiring Diagram (Two‑wire System)

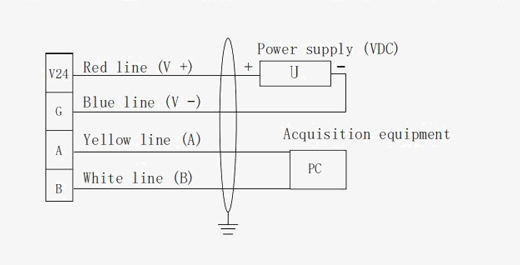

RS485 (Digital Signal) Output Wiring Diagram (Four‑wire System)

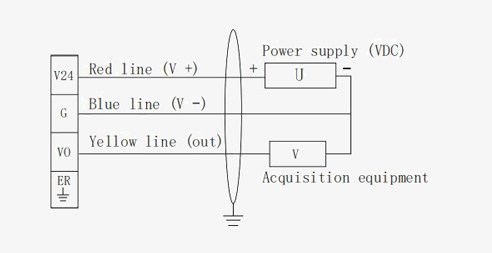

Voltage Output Wiring Diagram (Three‑wire System)
Q1: What should I check before installing an explosion-proof differential pressure sensor?
A1: Before installation, check the pressure range, gas compatibility, medium temperature, output signal, hazardous-area certification, pressure port connections, electrical wiring, and environmental conditions. Correct installation is essential for both measurement accuracy and safe operation.
Q2: Does the explosion-proof differential pressure sensor have temperature compensation?
A2: Yes. The explosion-proof differential pressure sensor provides temperature compensation within -10°C to 60°C. This helps reduce measurement errors caused by temperature changes within the specified compensation range.
Q3: What medium can this explosion-proof differential pressure sensor measure?
A3: This explosion-proof differential pressure sensor is designed for gas measurement, provided that the gas is compatible with the sensor's wetted materials. The media compatibility should be confirmed before selecting the sensor for a specific application.
Tips: Is this explosion-proof differential pressure sensor suitable for outdoor installation?
Yes. This explosion-proof differential pressure sensor can be used for outdoor pressure monitoring when the installation environment is within its specified operating conditions. Its IP65 protection rating helps protect the sensor against dust and water jets, making it suitable for many industrial outdoor applications. For hazardous locations, always confirm that the specific explosion-proof certification matches the site's classification and installation requirements.
