SISCO light meter not only measures illuminances and brightness but also allows for the measurement of color temperature, color renderingindex, and other related parameters, providing comprehensive optical information. Whether it's for photographyshoots, lighting engineering projects, or scientific laboratory experiments, this light meter offer accurate measurements of illuminances and brightness, enabling users to make informed decisions.

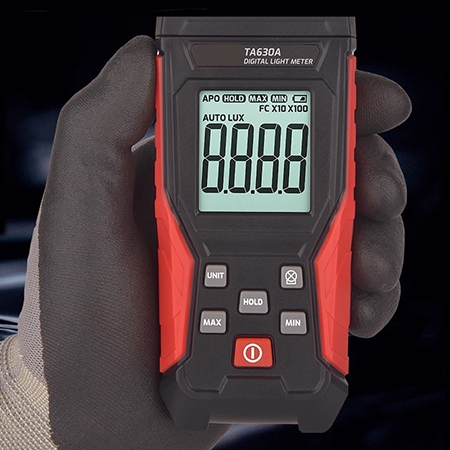

Small Size, Digital & Backlit Display
- Equipped with a high-definition digital display screen that delivers clear, sharp, and easy-to-read measurement results at a glance.
- Large LCD with high contrast and enhanced visibility, ensuring accurate readings even in low-light conditions.
- Display provides real-time illumination values with fast refresh speed for smooth and stable data presentation.
- Clear numeric layout minimizes reading errors and improves work efficiency during on-site inspections.
- Anti-glare screen design enhances readability in both indoor and outdoor environments. Backlit display option allows convenient operation in dim or dark areas.

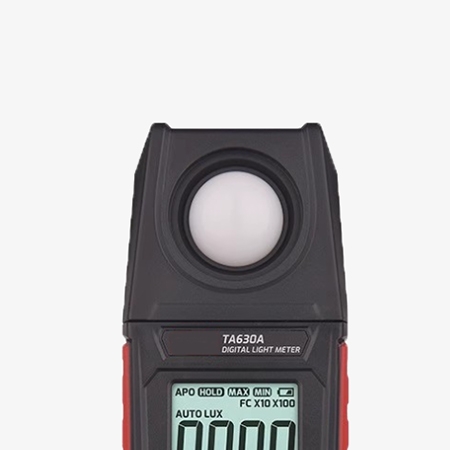

Equipped with a high-precision light sensor
- Built with a high-precision photosensitive sensor that ensures accurate and reliable light intensity measurements across a wide range of environments.
The advanced sensor offers exceptional sensitivity, allowing precise detection of even subtle changes in illumination. - The digital lux meter designed to closely match the human eye’s spectral response, reducing measurement errors caused by different light source types.
- Delivers stable and consistent readings with minimal fluctuation, even during continuous monitoring.
- High response speed enables real-time tracking of dynamic light variations.
- Optimized sensor structure minimizes interference from ambient noise and improves overall measurement accuracy.

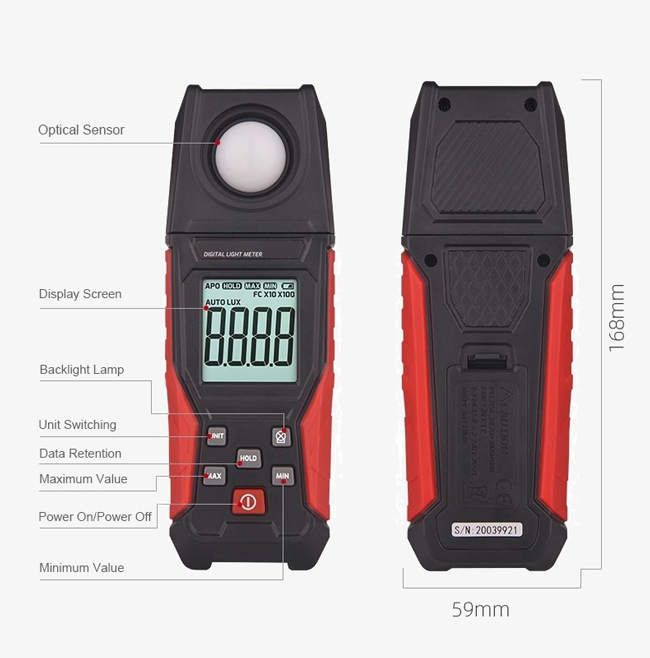

Dimension
Applications
SISCO's lux meters are widely used for light monitoring and measurement in lighting enterprises, agriculture and livestock, industry and mining, laboratories, offices, medical institutions, home applications, street lighting construction and other industries.
School
Factory
Workshop
Office

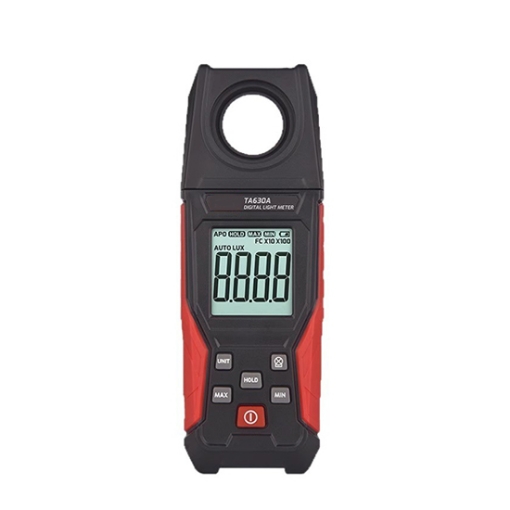

| Model | SISCO-LM-TA630A |
| Illuminance | 0~200000 lux |
| Accuracy | ±3% |
| Resolution | 0.1 lux |
| Sample Rate | 0.5 times/s |
| Response Time | 5s |
| Data Hold | No |
| Range Conversion | Manual |
| Dimensions | 168*59*34 mm |
| Weight | 200g |
Q1: What is a lux meter and how does it work?
A1: A lux meter, also known as an illuminance meter, is a device used to measure the amount of light falling on a surface. It works by using a photodiode or photovoltaic cell to convert light energy into an electrical signal, which is then processed and displayed as a reading in lux units.
Q2: What are some common applications of lux meters?
A2: Lux meters are commonly used in a variety of industries and settings, including photography, film production, architecture, and interior design. They are also used in industrial settings to ensure proper lighting levels for worker safety and productivity.
Q3: How to calibrate a lux meter?
A3: Calibrating a lux meter typically involves comparing its readings to a known standard light source of a specific brightness level. This can be done using a calibration light box or similar device, and the process may vary depending on the specific type and model of the lux meter being used. It is generally recommended to have a lux meter professionally calibrated on a regular basis to ensure accuracy.
Tips: How to use a digital light meter?
- Turn on the device: Press the power button to start the digital light meter.
- Position the sensor: Point the light sensor directly toward the light source or place it on the surface where you want to measure illumination.
- Hold steady: Keep the meter still to allow the reading to stabilize for a few seconds.
- Read the value: Check the measurement shown on the digital display, usually in lux (lx) or foot-candles (fc).
- Turn off after use: Switch off the meter or let the auto power-off function save battery life.
