This ultrasonic thickness tester supports storage of up to 107,000 measurements and 400 configuration files. The adjustable sound velocity (310–18,699 m/s) ensures precise calibration for different materials, improving measurement accuracy in real-world environments.
SISCO digital ultrasonic thickness gauge supports up to 400 user storage groups

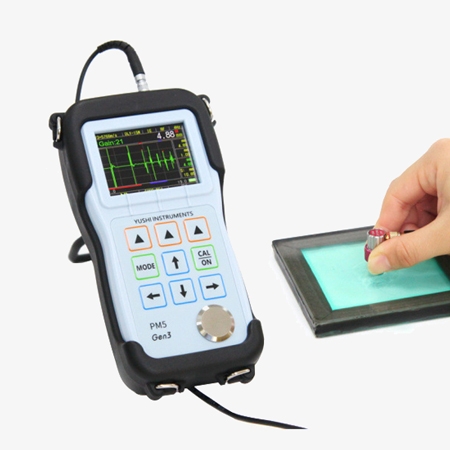

- SISCO digital ultrasonic thickness tester features real-time A-scan display. It provides full waveform visualization with advanced signal adjustment, allowing operators to lock onto any echo for precise thickness evaluation.
- The system can clearly distinguish thickness differences as small as 0.001mm, delivering excellent repeatability and long-term stability.
- 200MHz high-speed digital sampling technology guarantees accurate signal reproduction. This enables precise waveform capture with minimal distortion for reliable ultrasonic inspection results.
- Supports Pulse-Echo, Echo-Echo, Interface-Echo, and multiple echo verification modes for different testing conditions.
- Users can freely adjust waveform parameters and lock on any target echo for stable and repeatable readings.
- SISCO-PM5-Gen3 digital ultrasonic thickness tester allows storage of up to 400 user-defined configurations with one-key loading for fast operation.

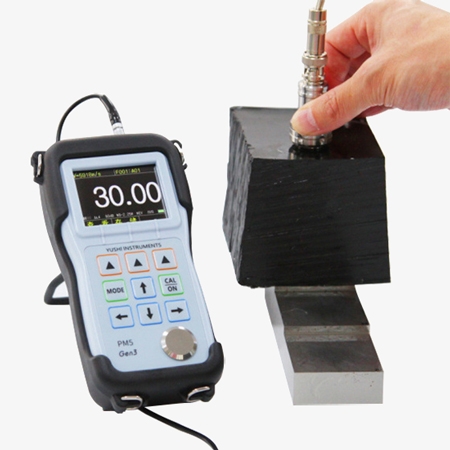

Industrial-grade IP67 protection design for harsh environments
- The digital ultrasonic thickness tester is dustproof and waterproof (up to 1 meter immersion for 30 minutes), suitable for field and industrial use.
- Measurement points include wave side, peak, pre-zero crossing, and post-zero crossing for higher accuracy under different conditions.
- Automatically or manually adjustable slope starting point improves near-surface resolution and reduces blind zone.
- High/low limit alarms support thickness, sound velocity, and time-of-flight monitoring for safe and controlled inspection.
- Includes minimum/maximum value tracking, difference mode, and reduction rate mode for comprehensive inspection evaluation.
Applications
SISCO handheld ultrasonic thickness gauge is used to measure metallic and non-metallic materials, including plastic, steel, PVC and glass plates and pipes. It can be widely used in manufacturing, metal processing and other fields, and can also perform corrosion and thinning detection on various pipes and pressure vessels in manufacturing facilities.
| Measurement Principle | |
| Model | SISCO-PM5-Gen3 |
| Measurement Mode | Pulse-Echo, Interface-Echo, Echo-Echo, Multi-echo verification, Automatic |
| Probe Types | Single probe (delay line probe, contact probe, protective membrane probe, pencil probe, immersion probe) |
| Probe Frequency Range | 0.5 MHz ~ 20 MHz |
| Thickness Measurement Range | 0.05 mm ~ 62 mm, depending on probe, surface condition, temperature, and configuration (for full range measurement, high frequency and optional settings required) |
| Sound Velocity Range | 310 m/s ~ 18,699 m/s, adjustable for known material |
| Resolution | 0.1 mm / 0.01 in |
| 0.01 mm / 0.001 in | |
| 0.001 mm / 0.0001 in / 1 μm / 0.1 mil | |
| Units | mm, inch, μs |
| m/s, inch/μs, μs, ns (selectable with sound velocity & transit time) | |
| Display Update Rate | 4 Hz, 8 Hz, 16 Hz |
| Data Logger | Stores up to 107,000 thickness values, 400 parameter setup files, with PC software and USB disk |
| Digitizing Frequency | 200 MHz |
| Display | |
| Screen | 2.4" (320 × 240 pixels) IPS wide viewing angle display |
| Rectification Modes | RF, Full-wave, Positive half-wave, Negative half-wave |
| Display Modes | A-scan, B-scan, A-scan + grid, Large digits |
| Interface | |
| Probe Connector | Lemo 00 |
| I/O Connector | Lemo 00, 4-pin |
| Communication Interface | Mini USB (optional RS232) |
| General Specifications | |
| Housing | Impact-resistant, waterproof, sealed enclosure, compliant with IP67 standard |
| Dimensions | 153 mm × 76 mm × 37 mm (H × W × D) |
| Weight | Approx. 280 g (including battery) |
| Power Supply | Two AA batteries or USB power (real-time communication option) |
| Auto Power Off | Optional 5, 10, or 20 minutes auto shutdown, or manual power off |
Dimension
Q1: What is an ultrasonic thickness gauge?
The ultrasonic thickness gauge is improved based on the principle of ultrasonic measurement. It can measure the thickness of metals and other materials and can measure the sound speed of the material. The sisco ultrasonic thickness gauge is a portable thickness meter that can measure the thickness of various pipes and pressure vessels in production equipment, as well as accurately measure various sheets and machined parts.
Q2: How does an ultrasonic thickness gauge work?
sisco ultrasonic thickness gauge offers through-coating thickness measuring capability. It measures the thickness of an object by precisely calculating the times the probe sends an ultrasonic pulse to the object and passes through the object until the probe receives the reflection from the boundary. The ultrasonic pipe thickness gauge adopts the most advanced microprocessor and ultrasonic technology and has the characteristics of zero drift, reliable and stable reading, and no need for zero calibration. You can now test painted objects without removing paint or correcting paint thickness.
Q3: 4 Measurement methods of ultrasound thickness gauge
- Single-point measurement method: It means that the ultrasound thickness gauge is used to measure any point of the measured material with a probe, and the display value is the thickness value.
- Two-point measurement method: The ultrasound thickness meter is used to make two measurements at the same point of the measured material with a probe. In the second measurement, the probe's split surface is 90 degrees, and the smaller value in the two measurements is the thickness value.
- Multi-point measurement method: When the measurement value is unstable, take a measuring point as the center and make multiple measurements in a circle with a diameter of about 30 mm. The minimum value is the thickness value.
- Continuous measurement method: It uses a single-point measurement method to measure continuously along a designated line with an interval of not less than 5 mm. The minimum value is the thickness value.
Tips: Functions of ultrasonic thickness gauge probe
- It is the transmitted ultrasonic pulse.
- The probe of the ultrasonic thickness gauge converts the returned sound waves into electrical pulses.
- The probe can control the working frequency, suitable for different material measurements.
