The handheld vibration meter is designed for measuring the vibration of periodic motionmeasures velocity, acceleration, and displacement. The vibration analysis meter offers Bluetooth data output for wireless transmission and can connect to a computer, the velocity frequency measurement range is 10Hz-1kHz. Handheld vibration analyzer is widely used to detect vibration imbalances and deviations in mechanical equipment.

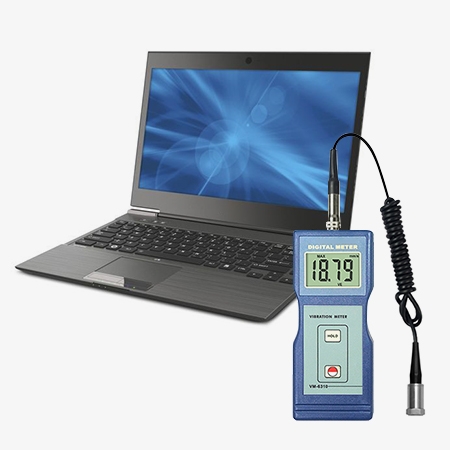

Connection to PC, supporting wireless transmission
- The digital vibration meter is equipped with a high-performance accelerometer, ensuring high accuracy and repeatability of measurement results. It also features AC signal output and USB data cable output for easy real-time monitoring, recording, and analysis of vibration data.
- The wireless vibration meter supports connection to PC smart devices for convenient data storage and remote transmission.
- The handheld vibration meter also offers a Bluetooth data output option, supporting wireless transmission and enhancing flexibility in field use.

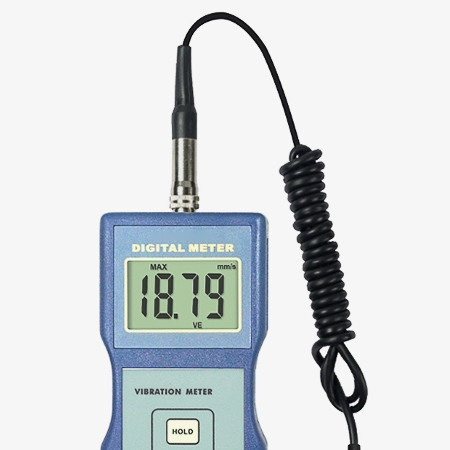

Compact and durable design, accurate measurement
- The vibration check meter conforms to ISO 2954 standards, guaranteeing measurement accuracy and reliability.
- Its compact and durable design makes the vibration analyzer adaptable to various working environments, and its operation is simple and intuitive.
- The portable vibration meter's precise detection function can promptly identify problems such as imbalance and deviation in machinery and equipment.
- The vibration frequency meter provides real-time data on equipment operating status, aiding in preventative maintenance and fault diagnosis.
Application
This vibration meter is widely used in industries such as power, construction, manufacturing, transportation, and petrochemicals. It is suitable for vibration detection and maintenance of mechanical equipment such as electric motors, fans, pumps, compressors, and reducers, helping users improve the reliability and safety of equipment operation. The vibration check meter can display vibration values in real time and, through its maximum and minimum value recording functions, assists in analyzing vibration data to predict equipment failures or perform preventative maintenance.
Industrial Manufacture
Automobile
Construction
Aerospace

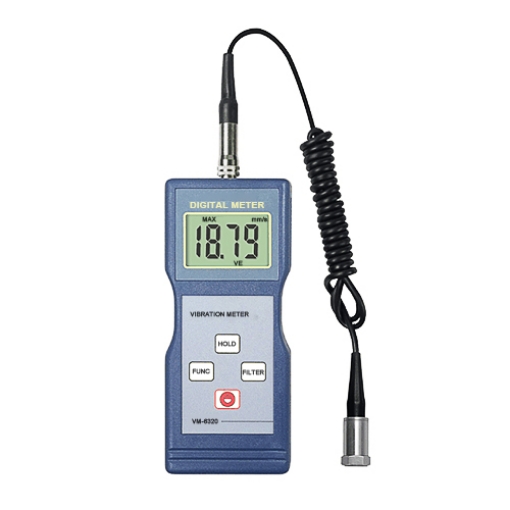

| Model | SISCO-VIBRO-VM-6320 | |
| Sensor | Piezoelectric vibration sensor | |
| Measurement Range | Acceleration | Peak value: 0.1~199.9 m/s² |
| Velocity | Effective value: 0.01~199.9 mm/s | |
| Displacement | Effective value: 0.001~1.999 mm² | |
| Frequency Range | Acceleration | 10Hz-10kHz |
| Velocity | 10Hz~1kHz | |
| Displacement | 10Hz~1kHz | |
| Accuracy | ± (5%n+2) characters | |
| Working Environment | Temperature | 0~50°C |
| Humidity | < 90%RH | |
| Power Supply | 4 AA batteries | |
| Dimensions | 160 x 68 x 32mm | |
| Weight | 181g (batteries not included) | |
| Standard Configuration | Main Unit | |
| Piezoelectric Vibration Sensor | ||
| Magnetic Holder | ||
| Probe (Spherical/Conical) | ||
| Portable Case (B04) | ||
| Instruction Manual | ||
| Optional Accessories | Headphones | |
| USB connection cable and software | ||
| Bluetooth adapter and software | ||
Q1: What is a Vibration Meter?
A1: A handheld vibration meter is an instrument used to measure the mechanical vibration of an object. It typically measures parameters such as vibration velocity, acceleration, and displacement, displaying the data digitally or graphically. Portable vibration meters are commonly used for the detection and analysis of vibrations in mechanical equipment, engineering structures, and the environment, serving as an important tool for diagnosing equipment operating conditions.
Q2: What are the uses of a vibration meter?
A2: Handheld vibration analyzers are primarily used to monitor and assess the operational health of mechanical equipment. They help engineers detect potential faults such as bearing wear, rotor imbalance, looseness, and misalignment problems, allowing for proactive maintenance. Furthermore, vibration analysis meters can be used in construction projects such as building construction, bridge construction, and subway construction to monitor environmental vibration levels to ensure safety and compliance with regulations.
Q3: What is the function of a vibration meter?
A3: The function of a vibration check meter is to capture vibration signals from equipment or structures and convert these signals into quantifiable data, such as vibration acceleration (g), vibration velocity (mm/s), and vibration displacement (μm). It can display vibration intensity in real time, helping users determine the presence of abnormal vibrations and analyze the frequency components of the vibration for fault diagnosis and operational status assessment.
