A digital Webster hardness tester is a precision instrument used to measure the hardness of very small metal parts, thin sheets, wires, and delicate components. Unlike traditional hardness testers designed for bulk materials, the Webster tester is specifically engineered for tiny specimens that cannot withstand large-scale indentation tests. It is commonly used in the electronics, aerospace, and precision engineering industries. Digital Webster tester is valued for its high precision, ease of use, and portability.
Webster Hardness Tester With Digital Display
- Enhanced Accuracy. A digital display significantly improves reading accuracy compared to traditional analog scales. Measurements are shown numerically, reducing human error caused by misreading needles or scales. This ensures consistent and reliable results for quality control and laboratory applications.
- Time-Saving. With instant digital readouts, there's no need for manual calculation or conversion. This efficiency is particularly beneficial in industrial production environments where speed and accuracy are crucial.
- Data Storage and Analysis. This digital Webster tester offers memory functions to store readings (9 groups). This feature allows operators to track material consistency over time and perform statistical analysis without manually recording each result.
6 Hardness Scales Conversion & App For Data Storage
- Multi-Scale Measurement Flexibility. Digital Webster hardness tester providing 6 kinds of hardness scales, which can be converted between Webster (HWA), Rockwell (HRE), Rockwell (HRF), Rockwell (HRB), Vickers (HV), and Brinell (HB).
- Ease of Switching Between Scales. The freely switchable function allows operators to change hardness scales quickly and efficiently, without recalibration or using additional equipment.
- Enhanced Analysis and Reporting. The app supports data storage, allows data grouping. Users can track testing history, generates inspection reports, and supports instant sharing, better for reporting and analysis.
Applications
SISCO's Webster hardness tester is primarily used for measuring the hardness of metals and metallic components in various industrial and laboratory settings. Its applications span multiple fields due to its simplicity, portability, and ability to provide quick hardness readings. In manufacturing and metalworking, it is used to test steel, brass, aluminum, and other alloys, ensuring that components meet required hardness specifications for durability and wear resistance.
Mechanical Manufacturing
Mold Treatment
Quality Test
Scientific Experiment
| Model | SISCO-HT-255 |
| Hardness Scale | HWA, HRE, HRF, HRB, HV, HB |
| Measurement Range | HWA(0-20); HRE(23.5-110); HRF(26.2-105.5); HRB(0-85.3); HV(49-155); HB(35.2-153) |
| Resolution | 0.1HWA |
| Accuracy | ±0.5HWA |
| Repeatability | 0.5HWA |
| Thickness of Measured Material | 0.6mm-8mm |
| Inner Diameter of the Measured Material | >10mm |
| Display | 128 * 64 dot matrix OLED |
| Power Supply | Rechargeable lithium battery 3.7V@400mAh |
| Charging Port | USB (Type-C) |
| Supply Voltage | DC 5V |
| Working Temperature | -10 ℃~50 ℃, 0~85%RH (no condensation) |
| Storage Temperature | -10 ℃~60 ℃, 0~85%RH (no condensation) |
| Size | 203*97*30mm |
| Weight | 484g (main unit).1kg (a whole set) |

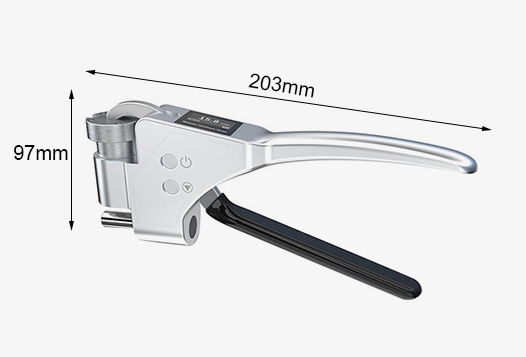

Dimension:
Q1: What is a Webster hardness tester?
A1: The Webster hardness tester, also known as the Webster hardness clamp or Webber hardness tester, can be used for rapid testing of aluminum alloy hardness on the production site and is the preferred instrument for inspecting the mechanical properties of aluminum alloy profiles. It can also measure the hardness of brass and stainless steel. It is a handheld and efficient tool.
Q2: What material is a Webster hardness tester made of?
A2: The Webster tester is primarily made of aluminum alloy, which provides a strong yet lightweight structure, making it easy to handle and durable for long-term use. Aluminum alloy ensures resistance to corrosion and wear, maintaining the instrument's accuracy and reliability over time. Its lightweight nature allows for convenient portability in laboratory or field environments, while still providing a stable frame for precise hardness measurements.
Q3: Are there any safety precautions to follow when using the Webster hardness tester?
A3: Safety precautions are important when using a Webster hardness tester. Always ensure the tester is placed on a stable, flat surface to prevent slipping or inaccurate readings. Wear safety glasses to protect your eyes from any material fragments that might chip during testing. Keep hands and fingers clear of the impact area when operating the device. Regularly inspect the tester for wear or damage.
Tips: Is this digital Webster tester battery-powered or rechargeable?
Yes, this digital Webster tester is a rechargeable model. Unlike traditional battery-operated testers, it comes with a built-in rechargeable battery, allowing for convenient use without frequent battery replacements. This makes it both eco-friendly and cost-effective, eliminating the need for disposable batteries while maintaining reliable functionality.
