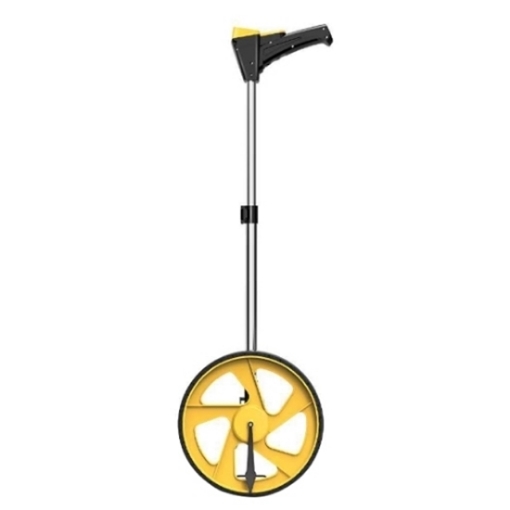

Digital Distance Measuring Wheel, 12 Inch

The digital distance measuring wheel has a diameter of 12 inches, extends to 43 inches and folds to 27 inches, and provides a measuring range of up to 9,99.9 feet per meter. The measuring wheel is lightweight, ergonomic, portable and easy to use.
SKU: SISCO-MW-DG318
$109.76
i h
Overview


The 12 inch measuring wheel has a large LCD screen with backlight for easy reading, and the measuring wheel memory can store up to 5 sets of data. The digital measuring wheel is widely used for measuring and evaluating construction work in road projects, pipe laying projects, wire and cable projects, etc.


Measuring wheel detail

Accurate measurement, folding structure, easy to carry.

  • Rolling measure wheel without extra battery power supply, more convenient to use.
  • The reading window is designed with a magnifying glass to enlarge the font for easy reading.
  • Key reset zero/magnifying glass setting for easy reading.
  • The digital measuring wheel counts by electromagnetic induction principle, and the data is displayed on the LCD screen for easy reading.
  • Scroll the wheel forward to increase the number, and backward to reduce the number.
  • The folding structure can be easily put into the carry bag, easy to carry.
  • HD digital display, measuring range 99999.9 meters, storage of 5 groups of data, digital measuring wheel can be converted to metric and imperial standard.




Application


Distance measuring wheels are widely used in professional mapping operations, road works, pipeline laying works, wire and cable works and other construction operations for measurement and evaluation.

Measuring wheel applications

Specs
  • Model: SISCO-WM-DG318
  • Extension Height: 110cm (43 inch)
  • Folded Height: 70cm (27 inch)
  • Wheel Diameter: 32cm (12 inch)
  • Accuracy:+0.5%
  • Net Weight: 1.3kg
  • Tire Thickness: 9mm
  • Measuring Range: 9999.9mm



Dimension Unit (mm)

12 Inch digital measuring wheel dimension

FAQs

Q1: How is the measuring wheel measured?
A1: By pressing the reset button of the measuring wheel counter, then starting measuring, the count increases when moving forward and decreases when moving backward, and finally the distance can be obtained by the number of revolutions of the wheel. The mechanical distance-measuring wheel is designed with high quality and precision, small, light, and durable, and is widely used for measuring and evaluating construction work such as road works, pipeline laying works, wire and cable works, etc.

Q2: What is the measuring wheel used for?
A2: The measuring wheel is mainly used for land surveying and mapping, road construction, cable laying, and course marking. It can also be used for the construction measurement of landscape and golf courses, the measurement of traffic accident distance and location, and the measurement of farmland construction management, etc.

Q3: What is a measuring wheel?
A3: A measuring wheel also known as a surveyor's wheel, click wheel, odometer, or trundle wheel – is a tool used to measure distances. Measuring wheels have a counting mechanism that counts the number of rotations and uses the circumference of the wheel to calculate the distance covered.

Tips: 3 ways to measure with distance-measuring wheels

1. Wall-to-wall measurement method

Place the distance-measuring wheel against the wall, turn the wheel in a straight line to the end wall, record the dial measurement and add the diameter of the wheel (2R) to the wall-to-wall distance.

2. Wall-to-point measurement method

Place the distance measuring wheel against the wall only, turn the wheel in a straight line to the end position, let the pointer coincide with the end of the ground and record the dial measurement data, then add the radius of the distance measuring wheel (R)

3. Point-to-point measurement method

Point the pointer of the measuring wheel vertically to the starting point on the ground, turn the wheel in a straight line to the endpoint and let the pointer coincide with the endpoint on the ground, this reading is the correct distance.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.


What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


What is not covered?

  • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
  • Expendable parts.
  • Routine cleaning or normal cosmetic and mechanical wear.
  • Damage from misuse, abuse or neglect.
  • Damage from use of parts other than sisco approved.
  • Damage from use outside the product’s usage or storage parameters.
  • Damage from use of parts not sold by sisco.
  • Damage from modification or incorporation into other products.
  • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
  • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
