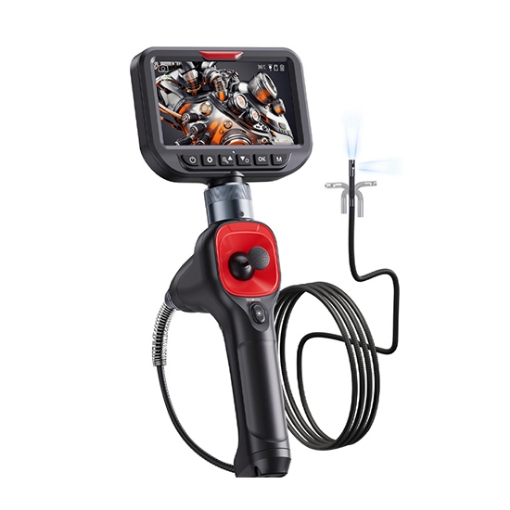

The dual-lens industrial articulating borescope provides a practical solution for inspecting confined spaces and complex internal structures without unnecessary disassembly. 360° rotation function offers greater flexibility when adjusting the viewing direction, helping users observe internal components, corners, and hidden surfaces more effectively. Whether used by professional technicians, maintenance teams, mechanics, or DIY users, this dual-lens industrial endoscope offers a convenient way to investigate internal areas and support more informed maintenance decisions.

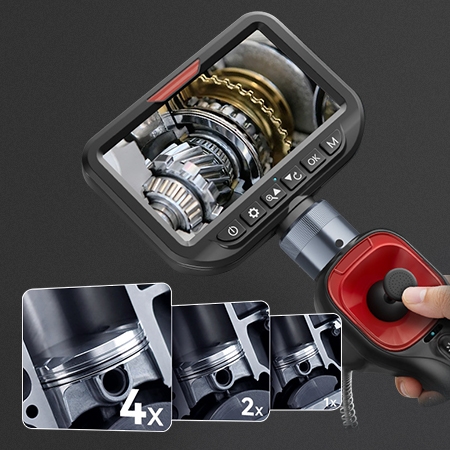

Flexible Zoom Levels Adapt to Different Inspection Needs
- 1x Zoom Get a Clear View of the Overall Scene. The 1x zoom mode is ideal for viewing the overall condition of pipes, machinery interiors, and other confined spaces, helping users quickly locate areas that require inspection.
- 2x Zoom Focus on Important Details. The 2x digital zoom enlarges selected areas of interest, making it easier to examine component surfaces, connection points, and potential irregularities for more convenient routine inspections.
- 4x Zoom Examine Small Features More Closely. The 4x digital zoom is suitable for inspections that require closer attention to specific details. It helps users examine small features in confined spaces and assists in identifying visible signs of wear, cracks, or other irregularities.

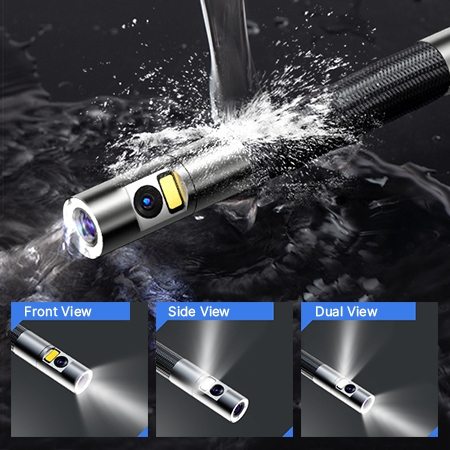

Articulating Endoscope With IP67 Waterproof Lens
- Reliable Waterproof Protection. Equipped with an IP67-rated camera lens, this dual-lens industrial endoscope provides reliable protection against dust and temporary water immersion.
- One Device, Multiple Viewing Options. Switchable front view, side view, and dual view, the three selectable view modes offer greater flexibility for different inspection tasks. Whether examining straight pipe sections, checking sidewalls, or investigating complex internal structures, users can select the appropriate viewing mode for the task.

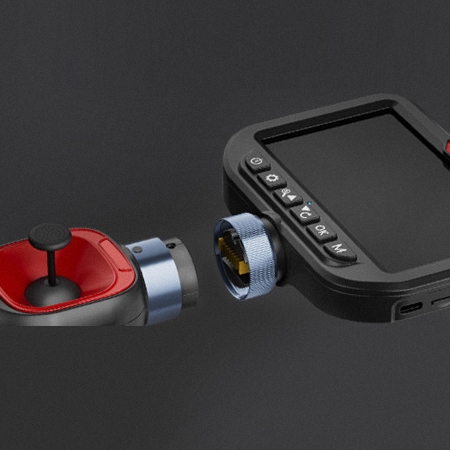

Articulating Borescope Camera Adopts a 5-inch Detachable Screen
- Clear and Comfortable Viewing. The 5-inch display provides a larger viewing area, making it easier to inspect internal structures and identify potential defects.
- Easy Storage and Space-Saving. The screen can be separated from the inspection camera body after use, helping reduce storage space requirements. It is convenient to store in toolboxes, equipment cabinets, or workshop drawers.
Applications
The industrial endoscope is widely used in automotive inspection, allowing users to check engine cylinders, valves, and oil leaks without disassembly and quickly pinpoint faults. During carbon buildup inspection, it observes valves and pistons through the spark plug hole, preventing unnecessary engine damage. In home appliance repair, the inspection camera helps examine circuit boards and compressors for faults. For pipeline or drain inspection, the pipe endoscope locates blockages or foreign objects.
Carbon Check
Appliance Repair
Clog Detection
Auto Repair
| Model | SISCO-IC-F6068D-MAX | |
| Display | Screen | 5.0" IPS |
| Function | Photos/ recording/ playback/ image rotation | |
| TF Card (32g) | √ | |
| Real-time Temperature | √ | |
| Camera & Probe | Camera Resolution | 1280*720 |
| Zoom | 1x /2x /4x | |
| Steering Radius | 35mm | |
| Steering Angle | Four-way 360° | |
| Steering Life | ≥20000 times | |
| Cable Length | 1.5m/ 3m | |
| Lens Type | Dual lens | |
| Lens Diameter | φ6.5mm | |
| FOV | 90° | |
| DOF | 15~∞ | |
| Adjustable LED Light | High-lumen LED beads (6+1 LED) | |
| Waterproof | IP67 | |
| High Temperature Protection Over 90℃ will Shutdown Automaticaly | √ | |
| Operating Environment | Battery Charging | DC5V*2A; 3.7V; 16.3Wh |
| Charging Interface | Typc-c | |
| Working Time | About 4 hours | |
| Temperature | -10℃~50℃ | |
| Relative Humidity | Less than 90% | |
| Package | Box Size | 34.5*28*9cm |
| Carton Box | 58*47*37.5cm | |
| Weight | About 2kg | |
| Certification | CE, FCC | |

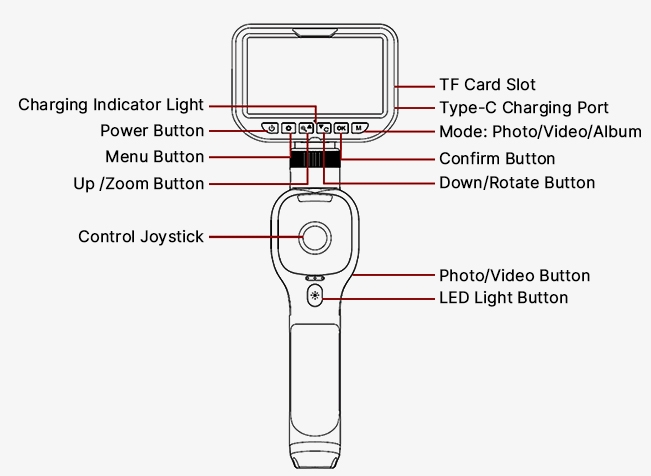

Structure:
Q1: Are the borescope buttons easy to use when wearing work gloves?
A1: When wearing thin work gloves, users can generally operate the buttons without much difficulty. However, thick gloves may reduce finger sensitivity and make it harder to press small buttons accurately. For the best operating experience, we recommend using thinner work gloves when conditions permit.
Q2: What operating temperature range does this 360° articulating borescope support?
A2: This articulating borescope supports an operating temperature range of -10°C to 50°C. For optimal performance and reliable inspection results, use the device within the specified limits and avoid exposing it to temperatures outside the recommended operating range.
Q3: Does this industrial borescope support split-screen display?
A3: Yes, this industrial borescope supports split-screen display when switched to dual-lens (front & side view) mode. This feature allows users to view images from both lenses simultaneously on the screen, making it easier to inspect different angles and compare visual details during inspections.
Tips: How Should I Store the Articulating Borescope Inspection Camera When It is Not in Use?
To keep your inspection camera in good condition, store it in a clean, dry, and well-ventilated place away from direct sunlight, excessive heat, moisture, and dust. Before storage, turn off the device and gently clean the probe, lenses, and display with a soft, lint-free cloth. Ensure the probe is completely dry before placing it in its protective case. Avoid sharply bending, twisting, or pulling the probe, as this may damage internal components. Keep the camera away from heavy objects and corrosive substances.
