Buy a high-precision digital height gauge online. The digital display offers clear and easy-to-read results, while the fine adjustment mechanism ensures smooth and precise measurements. This electronic height gauge is perfect for applications where high accuracy is critical, such as in machining, engineering, and tooling.

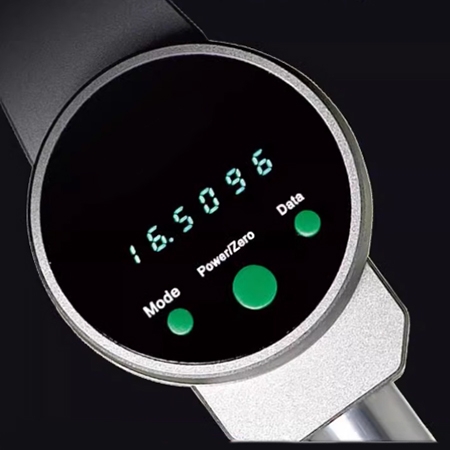

Large LED Display with Clear, Soft Colors
- LED Large Display: SISCO electronic height gauge features a bright LED large screen that ensures clear and easy-to-read measurements, even in low light conditions.
- Soft, Gentle Colors: The display utilizes soft, gentle colors to reduce eye strain during long periods of use, providing a comfortable viewing experience.
- High Contrast: The screen is designed with high contrast for clear readability, even from a distance or at different angles.
- Multiple Display Modes: The digital height gauge offers options for showing measurements in millimeters, inches readings, providing versatility based on user preference.

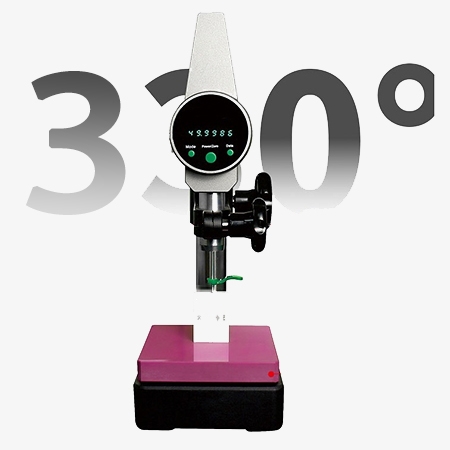

330° Rotating Display for Unlimited Readings
- 330° Rotating Display: The 330° rotating display allows users to view measurements from any angle, ensuring that the reading is never obstructed, even in tight spaces or awkward positions.
- Flexible Viewing: The rotating display ensures that measurements can be easily read from multiple angles, reducing the need to reposition the gauge during use.
- Enhanced User Convenience: This feature improves overall ergonomics, making it ideal for both left- and right-handed users.
- Improved Accessibility: Users can effortlessly adjust the display orientation to suit their specific work environment, enhancing convenience and precision.
Applications
Height gauges are a precision measuring tool widely used in many fields. In the field of industrial manufacturing, height gauges are an indispensable measuring tool. It can be used to measure the size of parts to ensure that the quality of the product meets the requirements. In the field of automobile maintenance, height gauges are used to measure whether the size of automobile parts meets the standard specifications. By regularly measuring the size changes of key parts, the wear and tear of the parts can be determined and repaired or replaced in time. When installing some precision parts, height gauges are used to ensure the accuracy of the installation position and size. In the field of scientific research, scientists often need to measure the size of tiny objects.
Mobile Manufacturing
Mold Manufacturing
Scientific Research
Machinery Manufacturing
| Model | SISCO-DHG-DSF505 | SISCO-DHG-DSF1005 | SISCO-DHG-DSF504 | SISCO-DHG-DSF1004 | SISCO-DHG-DSF503 | SISCO-DHG-DSF1003 |
| Measuring Range | 0-50mm | 0-100mm | 0-50mm | 0-100mm | 0-50mm | 0-100mm |
| Accuracy | ≤1μm | ≤2μm | ≤1.5μm | ≤3μm | ≤2μm | ≤4μm |
| Minimum Reading | 0.1/1μm | 0.5/1μm | 1μm | |||
| Repeatability | ≤0.2μm | ≤0.5μm | ≤1μm | |||
| Measurement Speed | Maximum 5000m/s | |||||
| Measuring Force | 0.8-1.2N | |||||
| External Output | Type-C | |||||
| Display | Green high-brightness digital display | |||||
| Stylus | Spherical stylus | |||||
| Working Environment | Temperature: 0-40°C; Humidity: 20-80% | |||||
| Units | mm/inch switchable | |||||
| Power Supply | Input: AC100-240V 50-60Hz; Output: DC5V/2V | |||||
| Standard Configuration | Altimeter, stand, spherical stylus, handle, power adapter | |||||
Q1: What is a digital height gauge?
A1: A height gauge is one of the most used accuracy and precision tools in different industries. Some of these industries are manufacturing, automobile, metalworking, and healthcare. Typically, they’re used in production stages, such as in cutting and marking raw materials. In some cases, height gauges are utilized in quality control to check if products have met particular standards.
Q2: Is the digital height gauge accurate?
A2: Standard height gauges provide readings accurate to one-hundredth of an inch, but precision-engineered digital height gauges can determine accurate measurements up to the thousandth of an inch and beyond.
Q3: Why do we use digital height gauges?
A3: A digital height gauge is used for measuring the height of objects. Vernier height gauges are used in metrology and metalworking to detect or measure vertical distances. The height gauges are often used to measure a granite surface or scribe part features from a datum plane.
Tips: What can I measure with an electronic height gauge?
With an electronic height gauge, you can measure:
- Height: The vertical dimension of objects or parts, ensuring they match required specifications.
- Step Measurements: The difference in height between different levels or steps in a component.
- Thickness or Depth: The thickness of materials or depth of cavities, such as measuring the depth of a groove or cut.
- Internal/External Dimensions: Measuring the height or depth of inner or outer surfaces of a part, often used in precision engineering.
- Flatness: Checking the flatness or uniformity of surfaces, especially in machining or quality control.
- Parallelism: Ensuring two surfaces are parallel to each other with accurate measurements.
