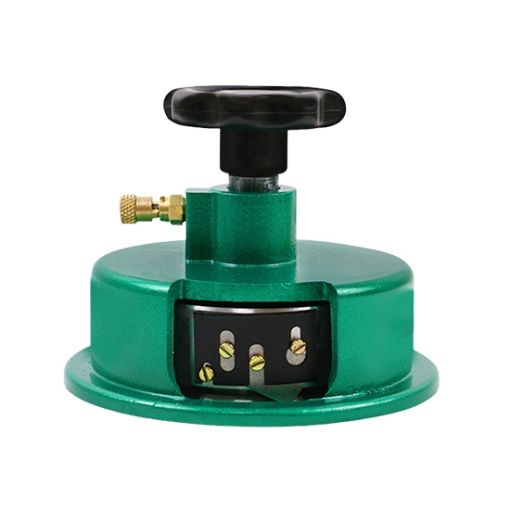

Fabric sample cutter is designed to simplify the preparation of precise, repeatable samples for textile and material weight testing. Whether used for GSM testing, incoming material inspection, production quality control, or laboratory sample preparation, the Fabric Sample Cutter provides a practical and efficient solution for obtaining uniform circular specimens before weighing and analysis.

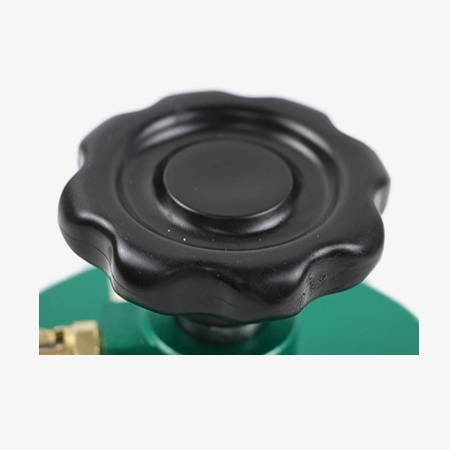

Adopts Durable Aluminum Alloy Handle
- Durable and Long-Lasting. The aluminum alloy handle provides excellent structural strength and durability, making the textile sample cutter suitable for frequent use in textile testing and laboratory environments.
- Corrosion Resistant. The aluminum alloy construction offers good corrosion resistance, helping the handle withstand moisture and everyday exposure to the working environment for longer service life.
- Impact Resistant. The sturdy aluminum alloy handle is more resistant to impact than ordinary plastic handles. If accidentally dropped during handling or transportation, it is less likely to crack or break.

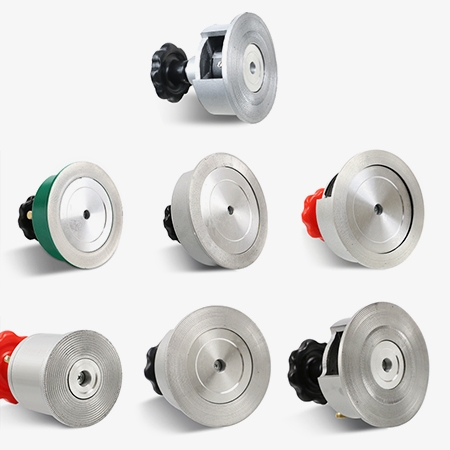

Circular Sample Cutter With Anti-slip Base
- It Improves Sampling Stability. The serrated anti-slip base helps keep the sample cutter stable, reducing movement during cutting for smoother circular sample preparation.
- It Reduces Movement During Cutting. The serrated base provides additional grip during operation, helping reduce the possibility of displacement caused by pressing or rotating the cutter.
- Suitable for Quick Fabric Sampling. The stable base design helps users quickly cut circular fabric samples, improving efficiency in routine testing and sampling.
Application
SISCO round fabric sample cutter is designed for quickly and accurately cutting circular samples from textiles, fabrics, leather, carpets, felt, and other sheet materials. It is widely used in textile manufacturing, fabric testing laboratories, garment production, quality control, and material inspection. By preparing samples with a consistent cutting area, the cutter helps users perform GSM testing, fabric weight measurement, and material comparison more efficiently. It is suitable for common materials such as cotton, wool, linen, denim, nylon, canvas, and knitted fabrics, making it a practical tool for routine sample preparation and quality testing.
Nylon Fabric
Linen Fabric
Cotton Fabric
Textile
Â
| Model | SISCO-SC-FSC | ||||||
| Sample Cutting Area | 10cm2 (adjustable) | 20cm2 | 25cm2 | 50cm2 | 100cm2 (adjustable) | 100cm2 (non-adjustable) | 154cm2 |
| Sample Diameter | 35.7mm | 50.47mm | 56.4mm | 79.8mm | 112mm | 112mm | 140mm |
| Cutting Thickness | 0~5mm | 0~5mm | 0~5mm | 0~5mm | 0~5mm | 0~5mm | 0~5mm |
| Number of Blades | 2 double-edged blades | 2 double-edged blades | 3 double-edged blades | 3 double-edged blades | 4 double-edged blades | 4 double-edged blades | 4 double-edged blades |
| External Dimension | 85*135mm | 128*135mm | 128*135mm | 128*135mm | 162*135mm | 162*135mm | 182*135mm |
| Net Weight | 713g | 890g | 940g | 980g | 1093g | 1177g | 1732g |

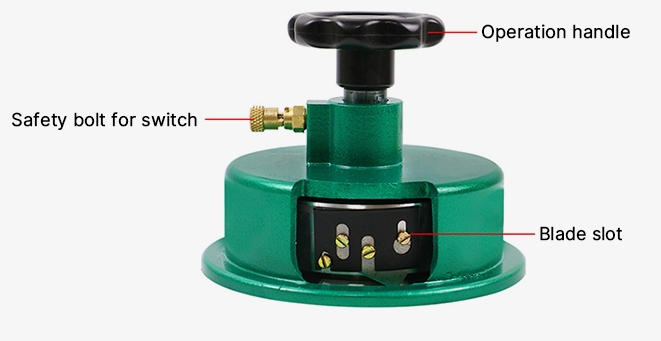

Structure:
(Taking the 100cm2 standard model as an example)
Q1: What is a round fabric sample cutter?
A1: SISCO fabric sample cutter is a cutting tool used to quickly and accurately prepare circular fabric samples for textile testing. Also known as a rotary fabric sample cutter or circular sample cutter, it typically uses sharp double-edged blades to cut a consistent sample size from fabrics, textiles, paper, felt, carpets, and other sheet materials. The cutter helps laboratories and quality control teams obtain uniform specimens for tests such as GSM, and material comparison.
Q2: What is the cutting thickness range of this sample cutter?
A2: This sample cutter has a cutting thickness range of 0–5 mm, making it suitable for accurately cutting samples from a wide variety of fabrics and textiles.
Q3: Does the fabric need to be flat before cutting?
A3: Yes. The fabric should be laid flat and reasonably smooth before cutting with a Fabric Sample Cutter. Flattening the fabric helps prevent wrinkles, folds, stretching, or overlapping layers from affecting the sample size and cutting accuracy. Do not excessively stretch the fabric, as this may change its original structure and affect test results.
Tips: Cautions of Using Fabric Sample Cutter
- The blade of this fabric sample cutter is extremely sharp. Always operate the sample cutter on the rubber pad provided. Never place your hands underneath the cutter during operation to avoid injury.
- Make sure the material being cut does not contain any metal objects, as contact with metal may damage or break the blade.
