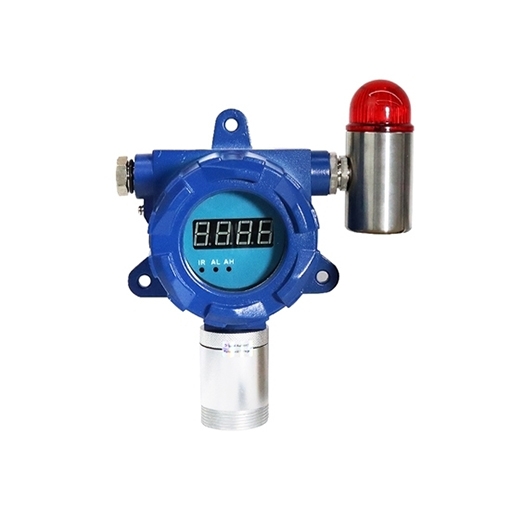

Good price ClO2 gas detector with detecting range 0-1/5/10/20/50/100ppm for ClO2 detection, output signal 4-20mA&RS485 for remote control. Fixed chlorine dioxide gas detector featuring a high-precision electrochemical sensor, provides fast and reliable detection with visual and audible alarms when gas levels exceed safety thresholds.
Anti-magnetic interference
- The fixed carbon dioxide gas detector can resist the strong magnetic interference of 15V/meter.
- In areas with dense magnetic products or dense electronic products, such as tunnels, mines, confined spaces, etc., the data is guaranteed to be stable and reliable.
Using high-precision sensors
- The fixed online CO2 gas detector is equipped with an infrared remote control as standard, which can realize the functions of alarm point setting, zero point calibration, and address modification without opening the cover.
- Compatible with various control alarms, PLC, DCS and other control systems to realize remote monitoring.
Variety of installation methods
- Wall mounted type, installed on the wall directly, real time monitoring.
- Piping type, installed on the pipeline, monitoring the gas concentration inside.
- Flow type, connected with external sampling pump and tube, measure the gas concentration in enclosed space.
Applications
SISCO fixed chlorine dioxide gas detector is a stationary device designed to continuously monitor and detect ClO₂ gas concentrations in a specific area. It is typically used in industries such as water treatment plants, paper and pulp manufacturing, food processing, and chemical production—anywhere chlorine dioxide is used for disinfection or bleaching.
Water Treatment Plants
Paper Manufacturing
Chemical Production
Food Processing
Â
| Model | GD300-ClO2 |
| Detection Principle | Electrochemistry |
| Gas | Chlorine Dioxide (ClO2) |
| Range (Optional) | 0 to 1ppm, 0-5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm |
| Resolution | 0.001ppm (0-1/5ppm), 0.01ppm (0-10/20/50ppm), 0.1ppm (0-100ppm) |
| Calibration Kit | Gas pressure regulator (calibration gas cylinder NOT included) |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Signal Output (Optional) | 4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional). |
| Alarms | Sound, light |
| Display | High light nixie tube display |
| Installation | Wall-mounted, piping type, flow-type (according to the detected environment) |
| Connection | Power connection type: G1/2 male thread explosion-proof flexible pipe Pipe-mounted type: M45*P2.0 |
| Operating Time | 24h |
| Explosion-proof Grade | â…¡ 2G Ex ia â…¡ CT4 Ga |
| Protection Grade | IP65 |
| Certification | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Working Voltage | 12-36V DC |
| Case Material | Die-casting aluminum housing |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Dimension | 206*179*90mm |
| Weight | ≤1.6kg |
| Accessories | Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug) |
Note:Â To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

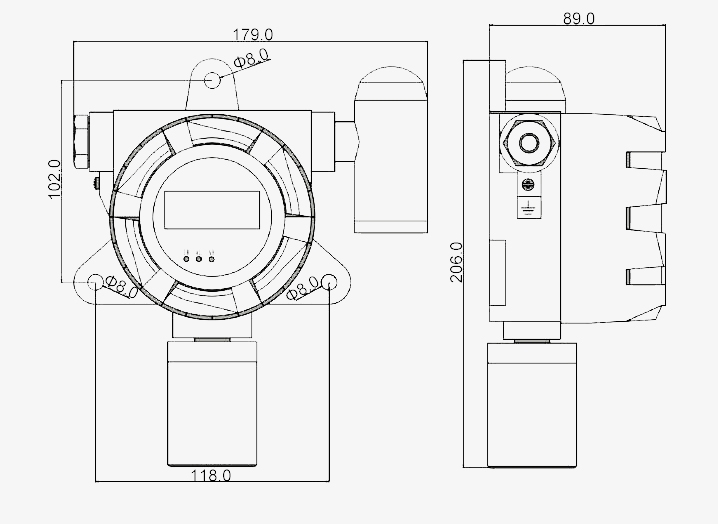

Fixed Chlorine Dioxide (ClO2) Gas Detector Dimension (Unit: mm)
Gas Detector Catalog & User Manual
SISCO Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500 Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
- SISCO Gas Detector Data Downloading Operation Instruction
Q1: What is a fixed gas detector?
A1: The fixed gas detector is composed of sensors and transmitters, and is installed at the detection site. The secondary instrument consisting of circuit, power supply and display and alarm device is installed in a safe place, which is convenient for staff to monitor. In industrial installations and production processes, fixed gas detectors are generally used, because fixed gas detectors can be installed at specific detection points to detect specific gas leaks.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: Difference between fixed gas detector and portable gas detector
A3: The biggest advantage of fixed gas detectors is 24-hour uninterrupted measurement. As long as the power is turned on, the fixed gas detector is in normal detection work. Portable gas detectors are usually used in confined spaces and confined spaces, but the gas environment in these spaces is usually very complex, and there will be situations such as lack of oxygen and high concentrations of harmful gases.
Tips: Why Choose a Fixed Chlorine Dioxide Gas Detector?
A Fixed Chlorine Dioxide Gas Detector provides continuous, real-time monitoring of ClOâ‚‚ levels in industrial and commercial environments where chlorine dioxide is used or stored. It enhances workplace safety by offering immediate alerts when gas concentrations exceed safe limits, reducing the risk of exposure to this highly toxic and reactive gas. Fixed detectors are ideal for long-term deployment, integrating easily with ventilation systems, alarm relays, and centralized monitoring platforms (like SCADA). Their durability, accuracy, and automation make them essential for ensuring regulatory compliance and protecting personnel, equipment, and facilities.
