The CH3OH gas detector supports multiple signal outputs such as 4-20mA, RS485, and relay, allowing seamless integration into existing alarm or control systems. Engineered for precision, the detector features a high resolution of 1% LEL and an accuracy of ≤±3% F.S., providing reliable and consistent performance even in demanding conditions.
Anti-magnetic interference
- The fixed methanol gas detector can resist the strong magnetic interference of 15V/meter.
- In areas with dense magnetic products or dense electronic products, such as tunnels, mines, confined spaces, etc., the data is guaranteed to be stable and reliable.
Using high-precision sensors
- The fixed methanol gas detector is equipped with an infrared remote control as standard, which can realize the functions of alarm point setting, zero point calibration, and address modification without opening the cover.
- Compatible with various control alarms, PLC, DCS and other control systems to realize remote monitoring.
Variety of installation methods
- Wall mounted type, installed on the wall directly, real time monitoring.
- Piping type, installed on the pipeline, monitoring the gas concentration inside.
- Flow type, connected with external sampling pump and tube, measure the gas concentration in enclosed space.
Applications
The fixed methanol gas detector delivers continuous, real‑time monitoring of methanol vapors in environments such as chemical and pharmaceutical plants, biodiesel or fuel‑cell production lines, paint and coating workshops, solvent storage rooms, distilleries, and research laboratories—safeguarding personnel and ensuring regulatory compliance.

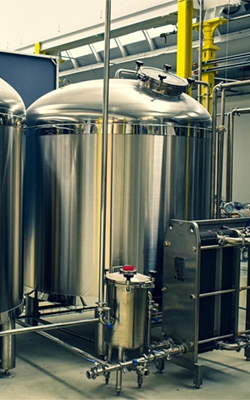

Brewery

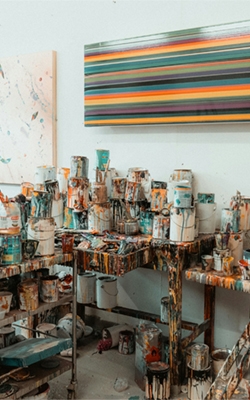

Painting Plant
Pharmaceutical Plant

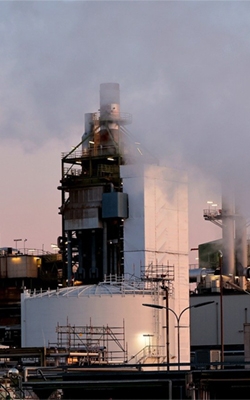

Chemical Plant
| Model | GD300-CH3OH |
| Detection Principle | Catalytic Combustion |
| Gas | Methanol (CH3OH) |
| Range (Optional) | 0 to 100% LEL |
| Calibration Kit | Gas pressure regulator (calibration gas cylinder NOT included) |
| Resolution | 1% LEL |
| Accuracy | ≤±3% F.S. |
| Responce Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Signal Output (Optional) | 4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional). |
| Alarms | Sound, light |
| Display | High light nixie tube display |
| Installation | Wall-mounted, piping type, flow-type (according to the detected environment) |
| Connection | Power connection type: G1/2 male thread explosion-proof flexible pipe Pipe-mounted type: M45*P2.0 |
| Operating Time | 24h |
| Explosion-proof Grade | Exd IC T6 Gb |
| Protection Grade | IP65 |
| Certification | CE, ATEX |
| Working Voltage | 12~36V DC |
| Case Material | Die-casting aluminum housing |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Dimension | 206*179*90mm |
| Weight | ≤1.6kg |
| Accessories | Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 2A (Optional USA plug, Europe plug or UK plug) |
Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.
Fixed Methanol Gas Detector Dimension (Unit: mm)
Gas Detector Catalog & User Manual
SISCO Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500 Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
- SISCO Gas Detector Data Downloading Operation Instruction
Q1: What is a fixed gas detector?
A1: The fixed gas detector is composed of sensors and transmitters, and is installed at the detection site. The secondary instrument consisting of circuit, power supply and display and alarm device is installed in a safe place, which is convenient for staff to monitor. In industrial installations and production processes, fixed gas detectors are generally used, because fixed gas detectors can be installed at specific detection points to detect specific gas leaks.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: Difference between fixed gas detector and portable gas detector
A3: The biggest advantage of fixed gas detectors is 24-hour uninterrupted measurement. As long as the power is turned on, the fixed gas detector is in normal detection work. Portable gas detectors are usually used in confined spaces and confined spaces, but the gas environment in these spaces is usually very complex, and there will be situations such as lack of oxygen and high concentrations of harmful gases.
Tips: What is a fixed methanol gas detector?
A fixed methanol gas detector is a permanently mounted safety device designed to continuously monitor the presence of methanol (CH₃OH) gas in the air. It is commonly used in industrial environments such as chemical plants, pharmaceutical factories, paint workshops, and distilleries to detect gas leaks early and trigger alarms, helping to prevent fire, explosion, or health hazards.
