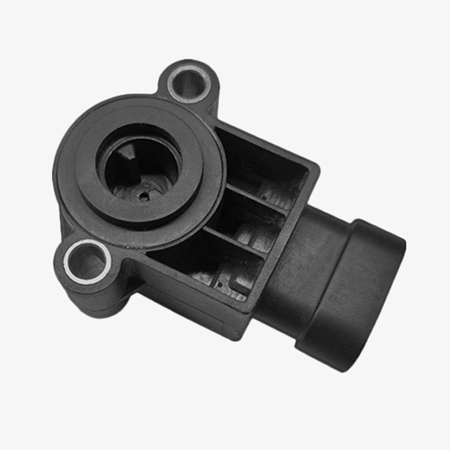

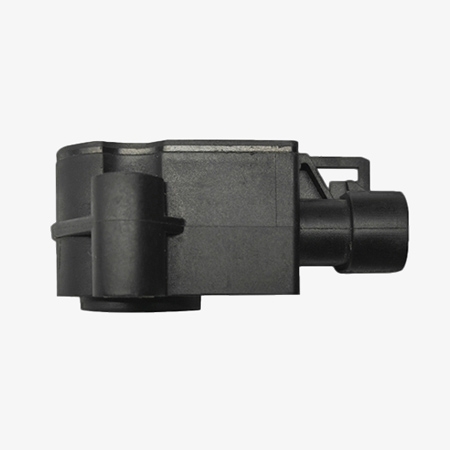

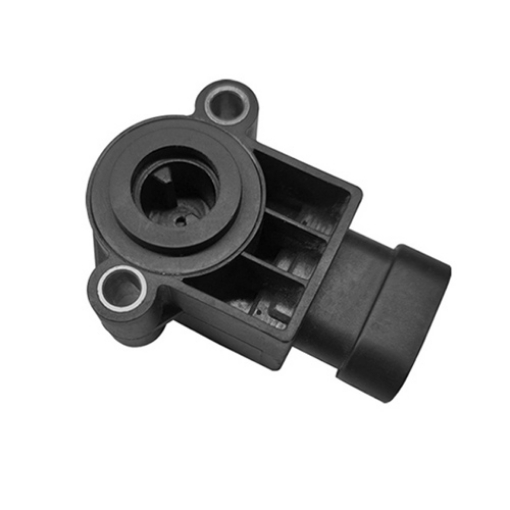

SISCO Hall effect angle sensor uses non-contact magnetic sensing for continuous angular position detection. It operates across a -40°C to +125°C working temperature range and supports the same -40°C to +125°C storage temperature range. The 4ms output delay enables fast response for real-time angular position detection.
- Non-Contact Hall Effect Sensing: The Hall effect angle sensor uses Hall effect magnetic sensing to detect angular position without physical contact between sensing components. The non-contact structure eliminates contact abrasion and supports long-term angle measurement.
- High-Precision Angle Measurement: Provides accurate angular position detection with good linearity and output consistency, supporting applications that require stable rotary position feedback.
- Fast Response for Real-Time Detection: Delivers a fast electrical response to changing shaft positions, making the Hall effect angle sensor suitable for real-time monitoring and dynamic motion control.
- Controlled Reset Torque: Provides controllable reset torque for applications requiring predictable return action after shaft movement, supporting consistent mechanical positioning.
- IP67 Dust and Water Protection: The IP67-rated housing provides complete protection against dust ingress and protection against temporary water immersion, making the sensor suitable for outdoor and heavy-duty applications.
Applications
Our Hall effect angle sensor is ideal for commercial vehicles, machinery equipment, gear inspection, and steer-by-wire systems. It can be integrated into smart toilets, induction faucets, smart trash cans, and other household appliances, as well as security monitoring, intelligent lighting, and remote control toys, to meet angular position feedback requirements in industrial and smart consumer applications.
Commercial Vehicle
Induction Faucet
Household Appliance
Remote Control
| Model | SISCO-AS-TAH12-V2 |
| Supply Voltage | 5±0.2V DC |
| Output Voltage | 10%~90% of supply voltage |
| Output Accuracy | ±2% |
| Linearity | ≤2% |
| Output Delay | 4ms |
| Working Temperature | -40℃~+125℃ |
| Storage Temperature | -40℃~+125℃ |
| Protection Grade | IP67 |
| Effective Electrical Angle | 77.6° |
| Mechanical Limit Angle | 120±2° |
| Reset Torque | 6.5±2N.cm at 1V, 14±2N.cm at 4.5V |

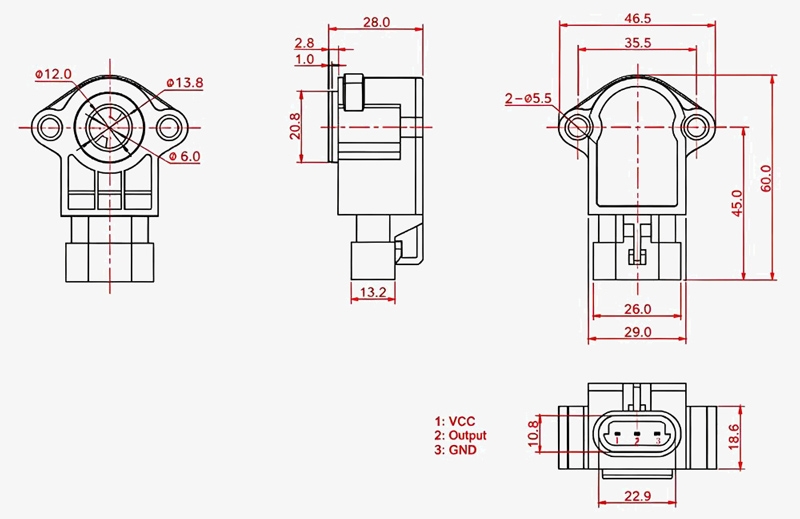

Dimensions (unit: mm)

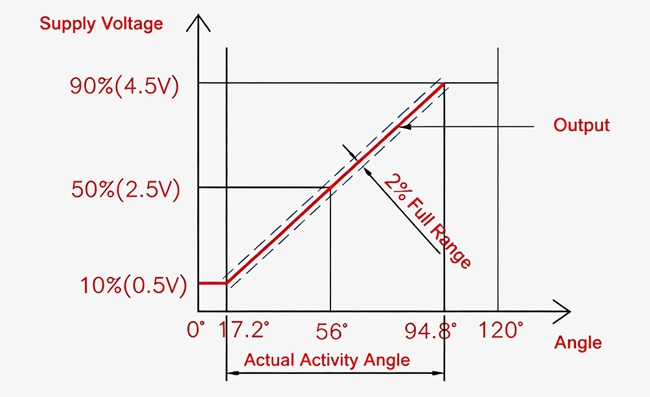

Output Characteristics
Q1: How fast does a Hall effect angle sensor respond?
A1: This Hall effect angle sensor has a 4ms output delay, allowing the sensor to respond quickly to changes in shaft position for real-time angular position monitoring.
Q2: How accurate is this Hall effect angle sensor?
A2: The Hall effect angle sensor provides ±2% output accuracy with linearity of ≤2%. Actual system accuracy can also depend on installation, magnetic positioning, wiring, and operating conditions.
Q3: Can a Hall effect angle sensor be used in smart home appliances?
A3: Yes. Its compact angular position sensing principle can be integrated into products such as smart toilets, induction faucets, smart trash cans, and other appliances where rotary or positional feedback is required.
Tips: Can a Hall effect angle sensor be used in commercial vehicles?
Yes. This Hall effect angle sensor can provide angular position feedback in commercial vehicle systems, including steering mechanisms and other rotary control components where non-contact position detection is required.
