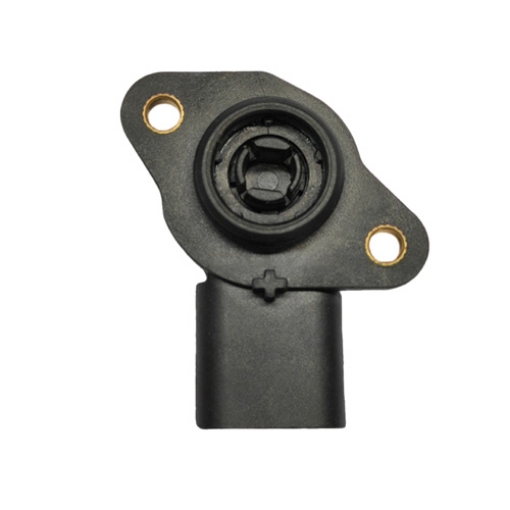

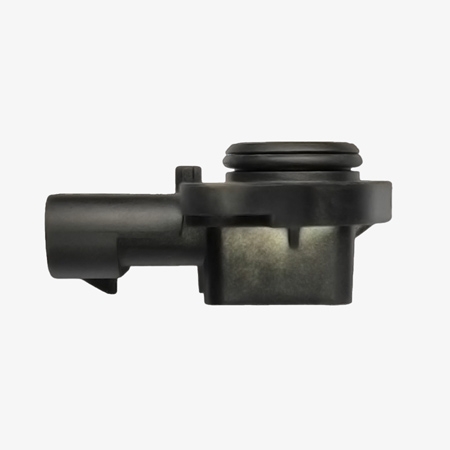

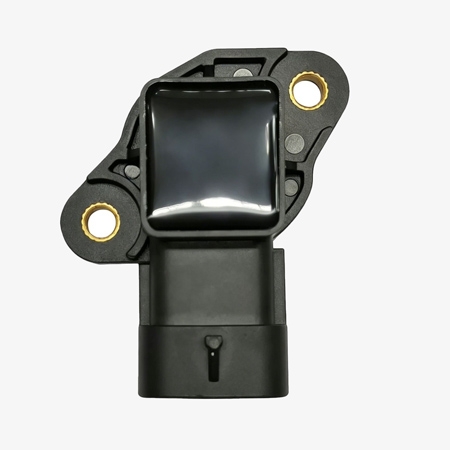

The inductive position angle sensor operates at 5.0 VDC ±10% and supports 0.5–4.5 VDC, PWM, and SENT outputs. With a maximum measuring angle of 120° and ±2% F.S. output linearity, it can provide continuous rotary position information for compatible controllers. The sensor is suitable for actuators, machinery, and automotive position feedback systems.
- Built-In Return Spring: The inductive position angle sensor features a built-in return spring for smooth mechanical reset after rotation. Moderate reset torque provides consistent return action and stable performance during repeated rotary movements.
- Glass Fiber Reinforced Housing: The housing uses glass fiber reinforced plastic for a strong and durable structure. The material provides a practical balance of mechanical strength and long-term durability.
- IP67 Dust and Water Protection: IP67 protection helps prevent dust ingress and allows the sensor to withstand temporary immersion in water. This makes the inductive position angle sensor suitable for exposed machinery and outdoor position feedback applications.
- Strong Vibration and Shock Resistance: The inductive angle sensor can continue operating under wide-frequency vibration and mechanical impact. This feature is useful for industrial machines, mobile equipment, and other systems subject to mechanical disturbance.
- Wide Operating Temperature Range: The inductive position angle sensor supports a wide operating temperature range for applications exposed to both low and high ambient temperatures. Its broader storage temperature capability also helps accommodate demanding transportation and storage conditions.
Applications
The inductive position angle sensor provides rotary position feedback for mechanical equipment, commercial vehicles, gear detection, and steer-by-wire systems. Its application range extends to automotive electronics, biomedical equipment, office automation, and self-service devices.
Commercial Vehicle
Induction Faucet
Household Appliance
Remote Control
| Model | SISCO-AS-TAH11-V1 |
| Input Voltage | 5.0 VDC ±10% |
| Measuring Angle | Maximum rotary120° |
| Load Capacity | >4KΩ |
| Output Signal | 0.5-4.5V DC, PWM, SENT (Optional) |
| Output Clamping Function | 0°~5° 10% of input voltage, 85°~120° 90% of input voltage |
| Output Linearity | ±2%F.S |
| Rotary Torque | Max. rotary torque of return spring 0.21N.m |
| Shell Material | Fiberglass-reinforced plastic |
| Protection Grade | IP67 |
| Seismic Performance | 1gRMS axial, 5gRMS horizontal, 8gRMS vertical, 20Hz to 2000Hz |
| Working Temperature | -40℃~125℃ |
| Storage Temperature | -40℃~135℃ |

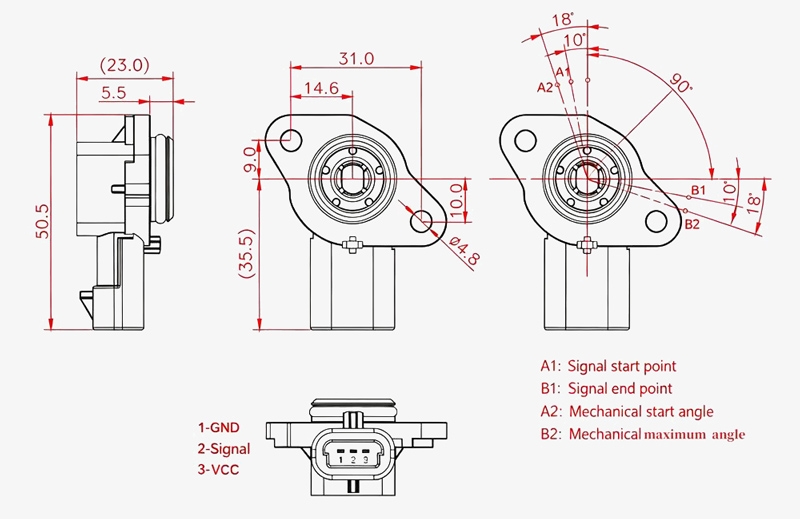

Dimensions (unit: mm)

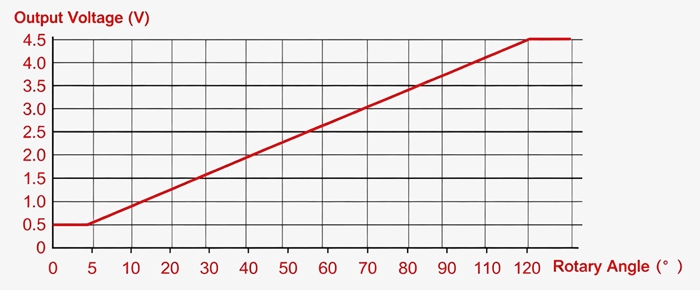

Output Characteristics
Q1: What is the maximum measuring angle of the inductive position angle sensor?
A1: The maximum rotary measurement angle is 120 degrees, which can meet most rotary position monitoring requirements for machinery and vehicle systems.
Q2: How accurate is this inductive position angle sensor?
A2: The sensor provides ±2% F.S. output linearity. Actual angle measurement performance can also be affected by mechanical installation, shaft alignment, electrical connections, and the operating environment.
Q3: What output signals does this inductive position angle sensor support?
A3: The sensor supports 0.5–4.5V DC, PWM, and SENT output options. These signal interfaces provide flexibility for connecting the inductive position angle sensor to automotive electronics, controllers, and other compatible control systems.
Tips: Can this inductive position angle sensor be used for steer-by-wire systems?
Yes. The inductive position angle sensor can provide angular position feedback for steer-by-wire systems when its electrical and mechanical specifications match the application. Vehicle-level safety, redundancy, diagnostics, and qualification requirements should be evaluated separately.
