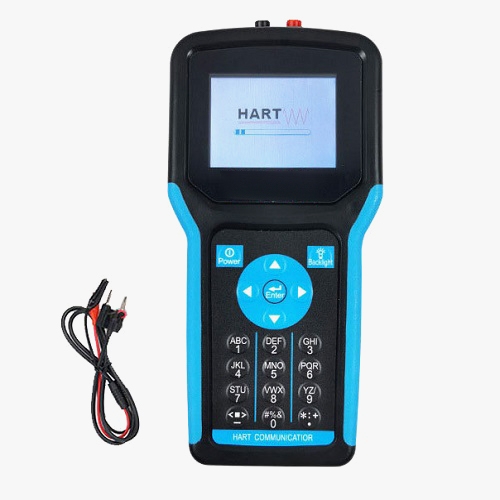

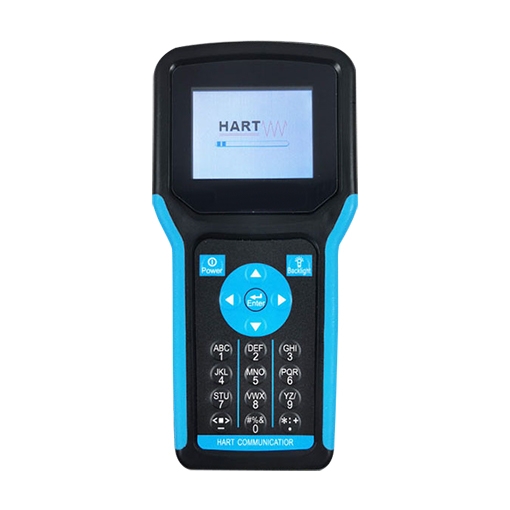

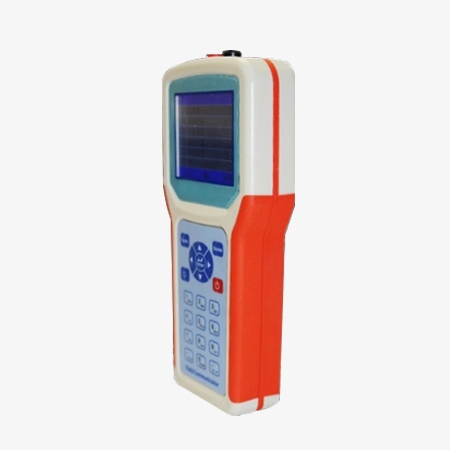

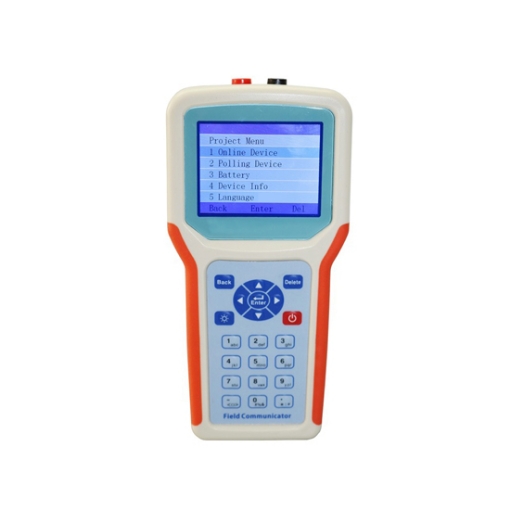

The HART communicator is a handheld field device designed for HART device configuration, parameter checking, and field maintenance. It works with HART-enabled transmitters and other compatible field instruments, providing convenient access to device parameters and configuration functions. The communicator supports field commissioning, troubleshooting, and routine maintenance for industrial instrumentation systems.
Standard HART Protocol Compatibility

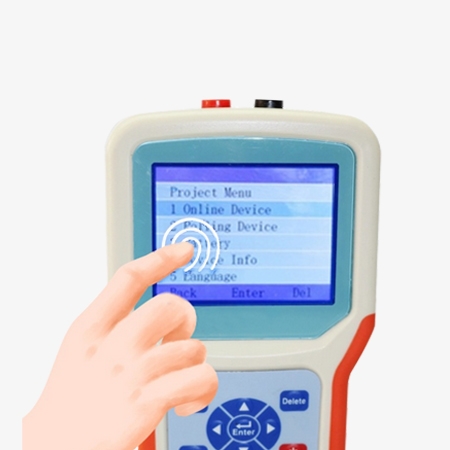

- The HART communicator features a 3.5-inch TFT color screen with a 480 × 320 resolution for clear and intuitive parameter viewing.
- The HART communicator complies with the standard HART protocol and supports communication with HART-enabled field devices.
- Supports 1200 bit/s two-way semi-duplex communication for convenient device configuration and parameter management.
- Built-in 3000mAh lithium battery provides more than 10 hours of continuous operation, supporting extended field use.
EMC Protection and Automatic Amplitude Multiplication
- Low power consumption helps extend battery life during field testing, commissioning, and maintenance.
- The HART interface supports a communication distance of up to 1500m, providing flexibility for industrial field applications.
- Measuring only 165 × 80 × 32 mm, the HART Communicator is compact and easy to carry for on-site testing and maintenance.
- The HART interface features anti-EMC protection and an automatic amplitude multiplication function for reliable field communication.
Applications
The SISCO HART communicator is widely used in water supply systems, the chemical industry, the natural gas industry, and pharmaceuticals. It enables real-time monitoring and control of key parameters, such as water level, pressure, and flow, ensuring stable operations in water supply systems; enhancing safety and efficiency in the chemical and natural gas industries; and ensuring product quality in pharmaceuticals. Through precise data transmission, the HART communicator helps various industries achieve efficient and safe production and management.

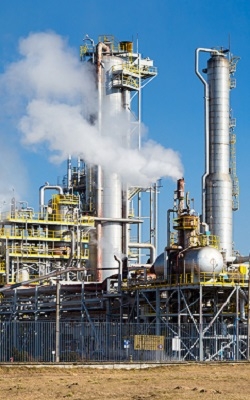

Chemical Industry

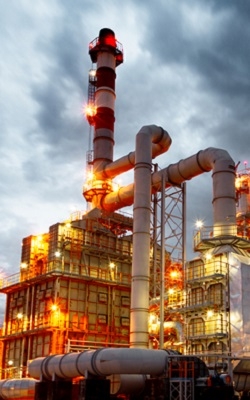

Natural Gas Industry
Pharmaceuticals

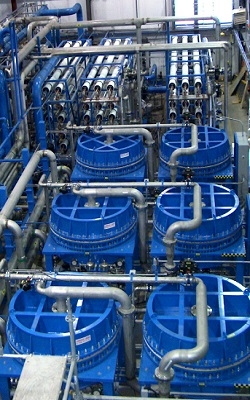

Water Supply Systems
| Model | SISCO-HC-HART475 |
| Protocol Compliance | Complies with the standard HART protocol |
| Battery | 5V lithium battery, 3000mAh |
| Continuous Working Time | More than 100 hours |
| Power Consumption | 4.5V DC, 30mA typical working current; 0.5µA typical shutdown current |
| Display | 3.5-inch TFT color screen |
| Display Resolution | 480 × 320 pixels |
| HART Interface | Complies with HCF HART communication specifications |
| Communication Mode | 1200 bit/s, two-way semi-duplex |
| Common-Mode Voltage | ±40V |
| Leakage Current | Less than 10µA @ 20°C |
| Communication Distance | Less than 1500m |
| EMC Protection | Anti-EMC measures |

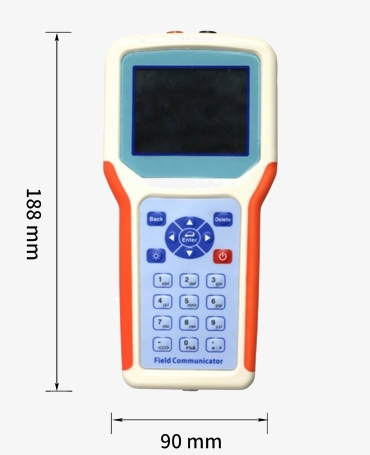

Dimension (unit: mm)

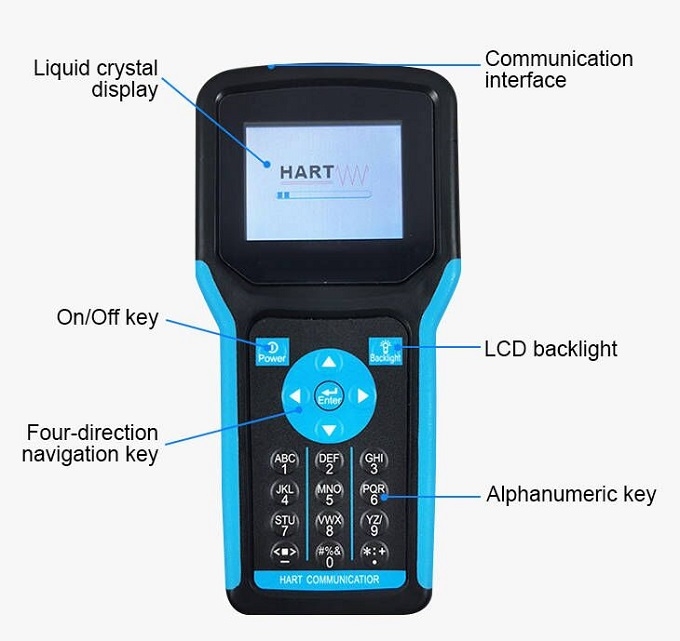

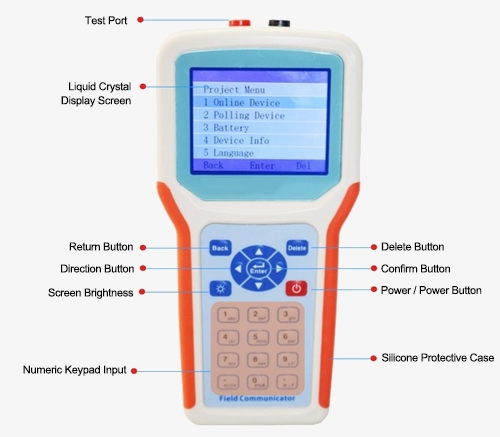

Details
Q1: What is a HART communicator?
A1: The HART communicator is a handheld device for industrial automation used to configure, calibrate, and diagnose HART-protocol field devices, such as transmitters, flowmeters, and control valves. The HART protocol is a widely used communication protocol in process control that allows devices to transmit data via analog signals. The HART communicator can read device parameter information, adjust device settings, and display device operating status and diagnostic information to help technicians perform maintenance and troubleshooting. Its portability and versatility make it a popular tool for field engineers and technicians in their daily work.
Q2: How does the HART communicator work?
A2: The HART communicator is a handheld device for device communication and configuration in industrial automation.HART stands for Highway Addressable Remote Transducer, a field device communication protocol. HART stands for Highway Addressable Remote Transducer and is a field device communication protocol. The HART communicator provides bi-directional communication with smart transmitters, actuators, and other devices by superimposing a digital signal on a 4-20mA analog signal. When in use, technicians can use it to read the device's operating data, and diagnostic information, or modify the device's configuration parameters. Usually, the HART communicator has a built-in database of devices, which can automatically recognize and be compatible with various brands and models of HART devices. The HART communicator is mainly used for debugging, maintenance and troubleshooting of field devices, improving the efficiency and reliability of industrial process control systems.
Q3: What are common uses for a HART communicator?
A3: A HART communicator is a handheld device used in industrial settings
- Device Configuration: It allows technicians to configure and reconfigure various field devices. This includes setting parameters such as measurement ranges, units of measurement, alarm settings, and device tags.
- Calibration: A HART Communicator is used for calibrating instruments like pressure transmitters, temperature sensors, and flow meters. This involves adjusting the device settings to ensure accurate measurements and performance.
- Diagnostics and Troubleshooting: It helps in diagnosing issues by accessing real-time data, device status, and diagnostics information. This can include identifying faulty sensors, communication errors, or abnormal operating conditions.
- Loop Testing: Used to perform loop checks to verify that the device and control system are communicating correctly. It can also simulate different process variables to test the response of the control system.
- Firmware Updates: A HART Communicator can be used to upload new firmware to devices, ensuring they are up-to-date with the latest features and security patches.
Tips: How to connect a HART field communicator to a device?
- Turn off Power: Ensure the device is powered off.
- Connect Cable: Attach the HART communicator's leads to the device’s terminals (usually across the 4-20 mA signal wires).
- Power On: Turn on the device and the communicator.
- Configure Communicator: Follow the communicator’s prompts to establish communication with the device.
- Always refer to the specific device and communicator manuals for detailed instructions.
