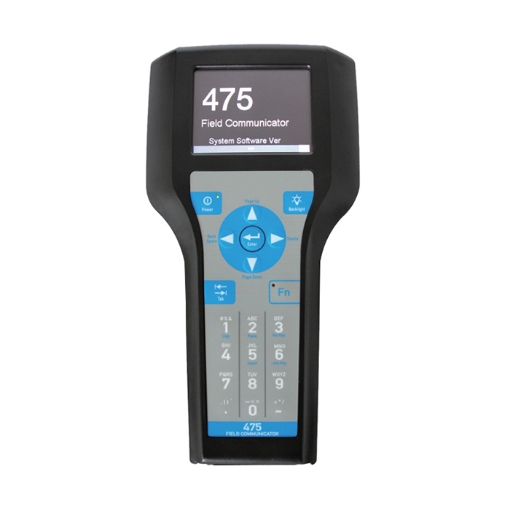

The HART communicator is a handheld HART field communicator designed for communication with HART-compatible smart transmitters and field instruments. It supports HART protocol communication with pressure, flow, temperature, and level transmitters, providing convenient access to device parameters and process information for industrial instrumentation applications.
Note: Bluetooth communication requires an app installed on an Android smartphone. iOS devices are not supported.
Standard HART Protocol Communication
- The HART communicator supports standard HART protocol communication with compatible smart transmitters and field instruments, including pressure, flow, temperature, and level transmitters.

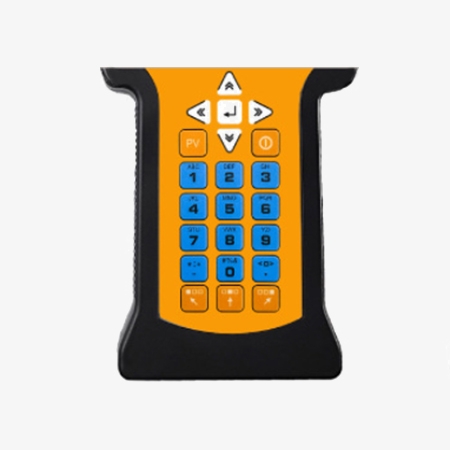

- Designed for 4–20 mA HART communication, the HART field communicator provides access to device parameters and process data during field testing and commissioning.
- The HART communicator supports HART transmitter configuration, allowing users to set or modify device parameters, measurement ranges, units, tags, and other configuration data.
- Supports HART device diagnostics, status checking, fault information reading, sensor parameter viewing, and output value monitoring for troubleshooting and field maintenance.
HART Device Calibration & Maintenance
- Provides functions for HART device calibration, testing, commissioning, and maintenance, supporting routine servicing of compatible industrial instruments.

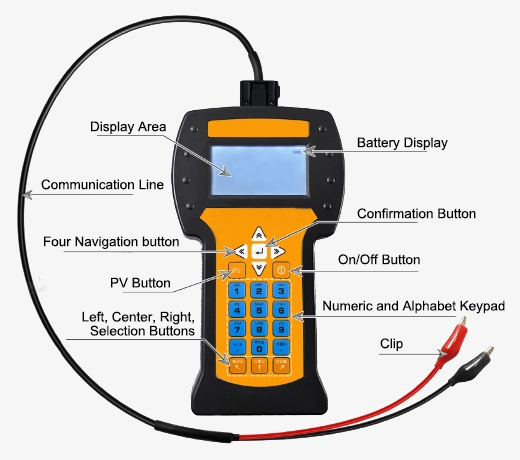

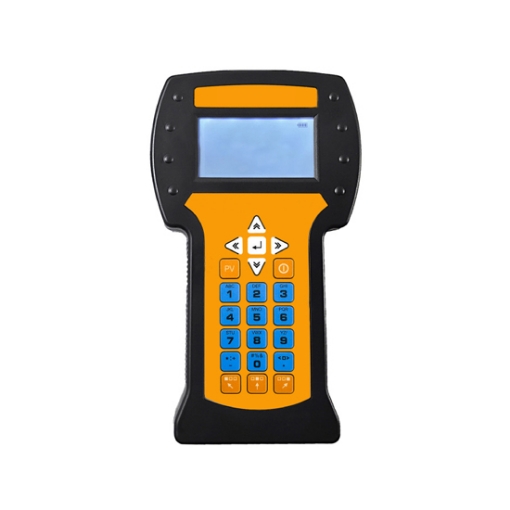

- The Bluetooth HART communicator connects with an Android smartphone through a dedicated app, providing convenient wireless communication for
- HART device configuration and field operation.

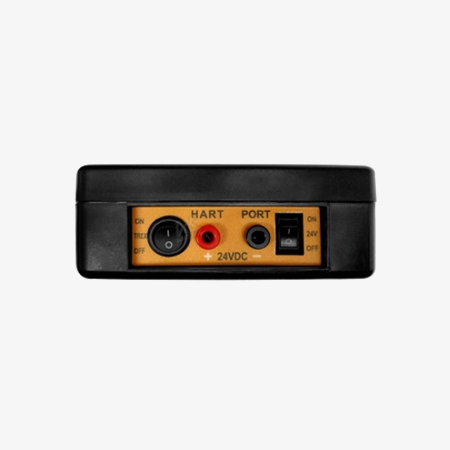

A built-in 24 V DC output provides power for compatible devices under test, supporting HART transmitter testing and commissioning in field applications. - Supports online communication and monitoring while maintaining the 4–20 mA DC signal, providing a practical solution for HART instrument parameter checking and field diagnostics.
Applications
The SISCO HART communicator is widely used in water supply systems, the chemical industry, the natural gas industry, and pharmaceuticals. It enables real-time monitoring and control of key parameters, such as water level, pressure, and flow, ensuring stable operations in water supply systems; enhancing safety and efficiency in the chemical and natural gas industries; and ensuring product quality in pharmaceuticals. Through precise data transmission, the HART communicator helps various industries achieve efficient and safe production and management.
Chemical Industry
Natural Gas Industry
Pharmaceuticals
Water Supply Systems
| Model | SISCO-HC-ALK475TREX-D7 |
| Digital Communication | HART Protocol |
| Accuracy | 0.05% F.S. |
| Battery Storage Temperature | -20 to 50°C |
| Operating Temperature | -10 to 50°C |
| Relative Humidity | 0–95% RH (Non-condensing) |
| Power Supply | Built-in Rechargeable Battery |
| Net Weight | 0.48 kg |
| Dimensions | 230 × 130 × 45 mm |
| DC Output | 24 V DC (Power supply for the device under test) |
| Communication | Bluetooth communication via Android smartphone app |
| Accessories | 250 Ω Resistor, Test Leads, Charger, Alligator Clips, Carrying Case |
| Weight | 2kg |
Details
Q1: What is a HART communicator?
A1: The HART communicator is a handheld device for industrial automation used to configure, calibrate, and diagnose HART-protocol field devices, such as transmitters, flowmeters, and control valves. The HART protocol is a widely used communication protocol in process control that allows devices to transmit data via analog signals. The HART communicator can read device parameter information, adjust device settings, and display device operating status and diagnostic information to help technicians perform maintenance and troubleshooting. Its portability and versatility make it a popular tool for field engineers and technicians in their daily work.
Q2: How does the HART communicator work?
A2: The HART communicator is a handheld device for device communication and configuration in industrial automation.HART stands for Highway Addressable Remote Transducer, a field device communication protocol. HART stands for Highway Addressable Remote Transducer and is a field device communication protocol. The HART communicator provides bi-directional communication with smart transmitters, actuators, and other devices by superimposing a digital signal on a 4-20mA analog signal. When in use, technicians can use it to read the device's operating data, and diagnostic information, or modify the device's configuration parameters. Usually, the HART communicator has a built-in database of devices, which can automatically recognize and be compatible with various brands and models of HART devices. The HART communicator is mainly used for debugging, maintenance and troubleshooting of field devices, improving the efficiency and reliability of industrial process control systems.
Q3: What are common uses for a HART communicator?
A3: A HART communicator is a handheld device used in industrial settings
- Device Configuration: It allows technicians to configure and reconfigure various field devices. This includes setting parameters such as measurement ranges, units of measurement, alarm settings, and device tags.
- Calibration: A HART Communicator is used for calibrating instruments like pressure transmitters, temperature sensors, and flow meters. This involves adjusting the device settings to ensure accurate measurements and performance.
- Diagnostics and Troubleshooting: It helps in diagnosing issues by accessing real-time data, device status, and diagnostics information. This can include identifying faulty sensors, communication errors, or abnormal operating conditions.
- Loop Testing: Used to perform loop checks to verify that the device and control system are communicating correctly. It can also simulate different process variables to test the response of the control system.
- Firmware Updates: A HART Communicator can be used to upload new firmware to devices, ensuring they are up-to-date with the latest features and security patches.
Tips: How to connect a HART communicator to a device?
- Turn off Power: Ensure the device is powered off.
- Connect Cable: Attach the HART communicator's leads to the device’s terminals (usually across the 4-20 mA signal wires).
- Power On: Turn on the device and the communicator.
- Configure Communicator: Follow the communicator’s prompts to establish communication with the device.
- Always refer to the specific device and communicator manuals for detailed instructions.
