SISCO digital lux meter has a friendly man-machine interface that can be activated with the push of a button. The illuminance meter has a LCD backlight design, measurement and reading measurement in low light conditions. Analog bar indication, auto range, manual range, auto power off, / MIN function and light source adjustment. The light meter can measure the visible light generated by fluorescent lamps, metal halide lamps, high-pressure lamps or incandescent lamps to achieve vivid and intuitive image display.

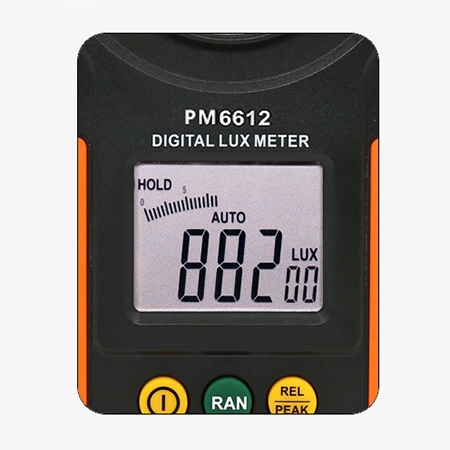

Small Size, Digital & Backlit Display
- Equipped with a high-definition digital display screen that delivers clear, sharp, and easy-to-read measurement results at a glance.
- Large LCD with high contrast and enhanced visibility, ensuring accurate readings even in low-light conditions.
- Display provides real-time illumination values with fast refresh speed for smooth and stable data presentation.
- Clear numeric layout minimizes reading errors and improves work efficiency during on-site inspections.
- Anti-glare screen design enhances readability in both indoor and outdoor environments. Backlit display option allows convenient operation in dim or dark areas.

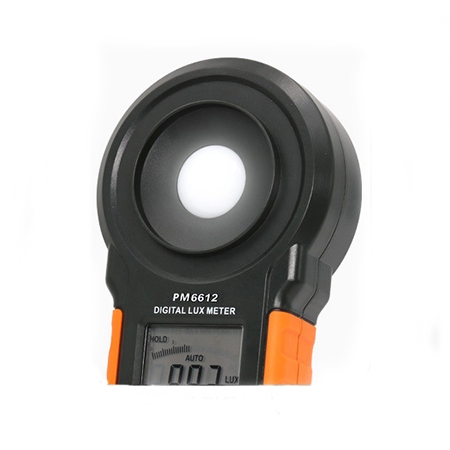

Equipped with a high-precision light sensor
- Built with a high-precision photosensitive sensor that ensures accurate and reliable light intensity measurements across a wide range of environments.
The advanced sensor offers exceptional sensitivity, allowing precise detection of even subtle changes in illumination. - The digital lux meter designed to closely match the human eye’s spectral response, reducing measurement errors caused by different light source types.
- Delivers stable and consistent readings with minimal fluctuation, even during continuous monitoring.
- High response speed enables real-time tracking of dynamic light variations.
- Optimized sensor structure minimizes interference from ambient noise and improves overall measurement accuracy.
Dimension
Applications
SISCO's lux meters are widely used for light monitoring and measurement in lighting enterprises, agriculture and livestock, industry and mining, laboratories, offices, medical institutions, home applications, street lighting construction and other industries.
School
Factory
Workshop
Office
Â
| Model | SISCO-LM-PM6612 |
| Illuminance | 0~200000 lux |
| Accuracy | 3% |
| Resolution | 0.01 lux |
| Display | 2000 counts |
| Auto/Manual Span | √ |
| Maximum/Minimum Measurement | √ |
| Auto Power Off | √ |
| Relative Measurement | √ |
| Peak Measurement | √ |
| Low Voltage Indication | √ |
| Data Hold | √ |
| Dimensions | 170*89*43 mm |
| Weight | 200g |
Handheld Digital Lux Meter User ManualQ1: What is a lux meter and how does it work?
A1: A lux meter, also known as an illuminance meter, is a device used to measure the amount of light falling on a surface. It works by using a photodiode or photovoltaic cell to convert light energy into an electrical signal, which is then processed and displayed as a reading in lux units.
Q2: What are some common applications of lux meters?
A2: Lux meters are commonly used in a variety of industries and settings, including photography, film production, architecture, and interior design. They are also used in industrial settings to ensure proper lighting levels for worker safety and productivity.
Q3: How to calibrate a lux meter?
A3: Calibrating a lux meter typically involves comparing its readings to a known standard light source of a specific brightness level. This can be done using a calibration light box or similar device, and the process may vary depending on the specific type and model of the lux meter being used. It is generally recommended to have a lux meter professionally calibrated on a regular basis to ensure accuracy.
Tips: What precautions should be taken when using a hanheld lux meter?
- Avoid exposing the sensor to extremely strong light sources such as direct sunlight or lasers for long periods, as this may damage the photosensitive element and affect accuracy. Always keep the sensor surface clean and free from dust, oil, or fingerprints, since any obstruction can interfere with light detection and lead to incorrect readings.
- Make sure the sensor is positioned correctly and faces the light source or the area being measured. Do not block the sensor with your hand, clothing, or nearby objects, as this will reduce the amount of light reaching it. When moving between areas with different lighting levels, allow the meter a few seconds to stabilize before taking a reading.
- Use the device in recommended temperature and humidity conditions, and avoid exposure to water or excessive moisture unless the model is designed to be waterproof. Handle the meter carefully to prevent drops or strong impacts that could affect its internal calibration.
- For consistent accuracy, periodically calibrate the meter if it is used for professional purposes, and always store it in a dry, shaded place when not in use. Turning off the device after use or relying on its auto power-off function will also help extend battery life and maintain optimal performance.
