SISCO surface roughness meter features high measurement accuracy, wide measurement range, simple operation, portability, and stable operation. It also has features such as large data storage capacity, low power consumption, and automatic sleep mode. It can realize data measurement, display, storage, Bluetooth printing and other functions.
Intuitive HD Color Display & Real-Time Feedback

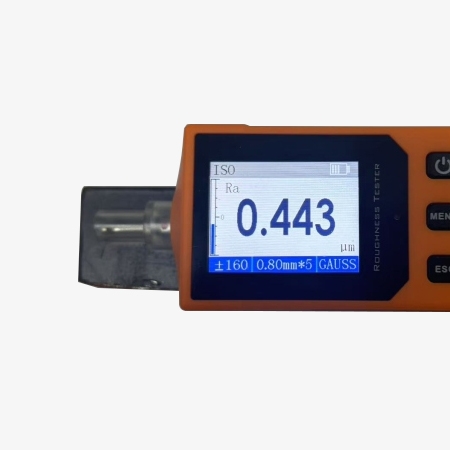

- Intuitive HD Color Display & Real-Time Feedback: Features a high-definition color LCD screen that clearly presents real-time roughness values (e.g., Ra, Rz) and graphical waveforms. The intuitive interface also displays essential parameters like sampling length and measurement mode (e.g., ISO, GAUSS), ensuring excellent visibility and quick reading in various workshop environments.

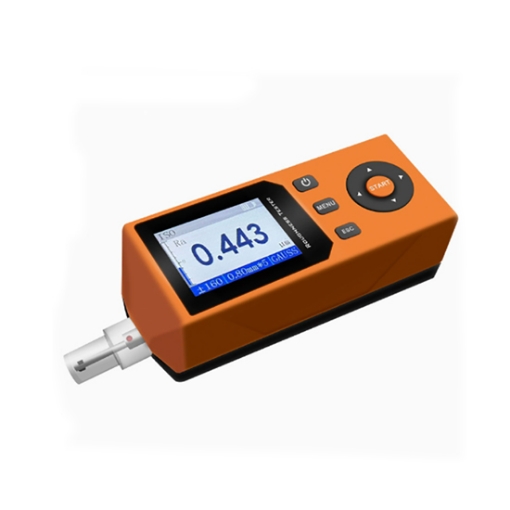

- Portable & Ergonomic Handheld Design: Built with a robust orange protective casing and a compact form factor, this roughness tester is designed for easy one-handed operation. Its lightweight and ergonomic structure make it highly portable for on-site inspections and measurements in hard-to-reach areas.
- Precision Probe for Accurate Surface Detection: Equipped with a high-precision stylus probe that ensures reliable contact with the test surface. The optimized probe design guarantees accurate data collection for a wide range of materials, improving the reliability of your quality control tasks.
Industrial Connectivity

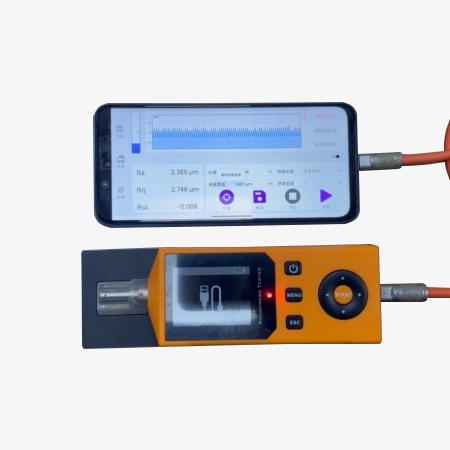

- Seamless Software Integration: Connects with dedicated measurement software for real-time data viewing, advanced analysis, report generation, and measurement result management.
- Data Storage & Sharing: Supports saving measurement data, profiles, and analysis reports for future reference, quality tracking, and team collaboration.
- Real-Time Measurement Monitoring: Enables instant transmission of measurement results to a computer, allowing operators to monitor surface parameters and analyze trends efficiently.
- Professional Data Analysis: The software provides comprehensive evaluation of roughness parameters, profile curves, statistical analysis, and customized measurement reports.
- Easy Data Export: Measurement results can be exported in common formats for documentation, quality control systems, and production process management.
Applications
The digital surface roughness gauge can be widely used in:
- Construction Site
- Transportation Terminal
- Oil Extraction
- Production Workshop
Transportation Terminal
Oil Extraction
Production Workshop
Construction Site
| Model | SISCO-SRT-SSR220 |
| Measuring Principle | Inductive |
| Measuring Range | 320 μm |
| Stylus Angle | 90° |
| Max Drive Length | 17.5 mm |
| Stylus Tip Radius | 5 μm |
| Stylus Material | Diamond |
| Resolution | 0.001 μm |
| Evaluation Length | Selectable (1–5 sampling lengths) |
| Parameter Range | Rz, Ry, Rt, Rp, Rm: 0.02–320 μm; Rsm, Rs: 1 mm; Rmr: 0–100%; Ra, Rq: 0.005–32 μm |
| Indication Error | ≤ ±10% |
| Measuring Force | ≤ 4 mN |
| Repeatability | ≤ 4% |
| Guide Skid Radius | 45 mm |
| Power Supply | Built-in rechargeable lithium battery / External power adapter |
| Measured Parameters | Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rsk, Rku, RPc, Ry, Rmax, R3z, Rk, Rpk, Rvk, Mr1, Mr2 |
| Data Output | Bluetooth / USB |
| Cut-off Length | 0.25 mm / 0.80 mm / 2.50 mm |
| Size | 156*55*46mm |
| Weight | 400g |
Q1: What is a 3.2 RA finish?
A1: 3.2 RA finish refers to a surface roughness measurement where the roughness average (RA) is 3.2 micrometers (µm) or 125 microinches. RA is a common parameter used to quantify the smoothness or texture of a surface, indicating the average deviation of the surface profile from the mean line over a specified length.
3.2 RA finish is often considered a moderately smooth finish and is typically used in various industries where a certain level of surface smoothness is required for functional or aesthetic reasons. This level of roughness can be achieved through different machining processes such as grinding, polishing, or other finishing techniques.
Q2: What is the difference between surface finish and surface roughness?
A2: Surface finish and surface roughness are related but distinct concepts. Surface roughness specifically refers to the fine irregularities on the material's surface, which are a result of the manufacturing process. These irregularities are usually quantified in micrometers (µm) or microinches (µin) using parameters such as Ra (roughness average) and Rz (average maximum height). Surface finish, on the other hand, is a broader term that includes surface roughness, waviness, texture, and flaws. Waviness refers to larger-scale surface deviations, texture indicates the directionality of surface patterns, and flaws include defects such as cracks and scratches. In summary, surface roughness is a part of surface finish, and surface finish provides a comprehensive assessment of surface quality.
Q3: What is SA and SQ in surface roughness?
A3:Â In surface roughness measurement, Sa and Sq are parameters used to quantify three-dimensional surface texture. Sa (Arithmetic Mean Height) represents the arithmetic mean of the absolute values of surface height deviations measured from the mean plane, analogous to the 2D parameter Ra .Sq (Root Mean Square Height), on the other hand, is the root mean square (RMS) value of surface height deviations from the mean plane, akin to the 2D parameters Rq or Rms.
Sa provides a measure of the average height variation on the surface, while Sq emphasizes larger deviations due to squaring and averaging the deviations. These parameters are crucial for comprehensively assessing surface texture and roughness in three dimensions, widely applied in fields such as materials science, manufacturing, and quality control.
Tips: What are the advantages of a pocket surface roughness tester?
 A pocket surface roughness tester offers a compact, lightweight, and convenient solution for quick surface finish inspection. Its main advantages include:
- Ultra-Compact & Portable Design: The small and lightweight structure makes it easy to carry and operate, allowing users to perform measurements anytime and anywhere.
- Fast On-Site Inspection: It enables direct measurement on production lines, workshops, and maintenance locations without moving workpieces to a laboratory.
- Easy Operation: The integrated design combines the sensor, measurement system, and display into one unit, providing simple setup and efficient testing.
- Reliable Surface Quality Evaluation: It provides accurate measurement of key roughness parameters such as Ra, Rz, Rq, and Rt, helping users monitor machining quality and surface finish consistency.
