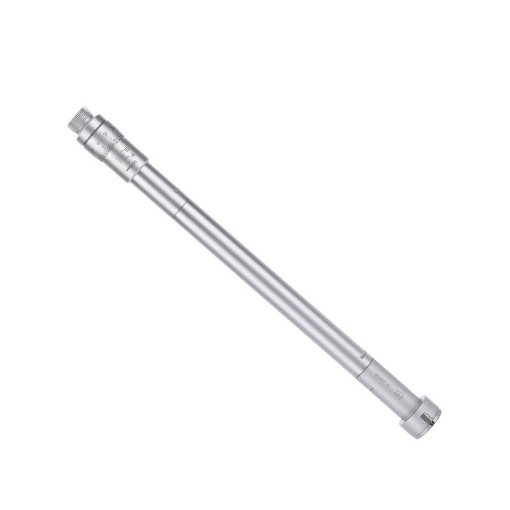

    Inside Micrometer, 3 Point, 30~40 mm Range

    The inside micrometer is a precision micrometer for measuring the internal size of an object and is suitable for small and medium-sized direct inner wall measurement. 3-point internal micrometer adopts durable bearing steel materials, comes with a 30~40mm range, and 0.005mm resolution. Clear scale for an accurate reading, 150mm extension rod for precision measurement of blind and through holes.
    SKU: SISCO-IM-3040
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days

    High precision inside micrometer for sale online. Buy it with 30~40mm range, resolution 0.005mm, 150mm extension rod, durable and stable bearing steel materials. Clear scale for an accurate reading. 3 point internal micrometers are mainly used to measure inside dimensions like the inside diameter of a hole or tube in mechanical engineering, machining and most mechanical industries.

    Inside micrometer details

    Inside micrometer with 30~40mm measuring range, suitable for the precision measurement of blind holes and through holes.

    • 3 -point internal micrometer is equipped with a 150mm extension rod, which can measure the size of deep holes easily and conveniently.
    • Highly durable because of carbide-tipped measuring surfaces.
    • Clear graduations laser-etched on a satin chrome finish for easy reading.
    • Spindle hardened ground and lapped for ultimate accuracy.
    • SISCO inside micrometer built-in force limiter ensures accurate and repeatable readings.


    SISCO inside micrometers is an instrument for making precise linear measurements of dimensions such as diameter, thickness, and lengths of solid bodies. 3 point internal micrometers are mainly used to measure inside dimensions like the inside diameter of a hole or tube, widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts.

    Dial bore gauge application

    • Model: SISCO-SHAN-3040
    • Range: 30~40mm
    • Types: 3-Point Internal Micrometer
    • Material: Bearing Steel
    • Measurement Type: Internal Diameter Measurement
    • Resolution: 0.005mm
    • Extension rod length: 150mm
    • Scale Process: Laser Scale
    • Accuracy: 0.004/0.005mm
    • Package: Plastic Box

    Q1: What is an inside micrometer?
    A1: An inside micrometer is a device designed to precisely measure things such as the inner diameter of holes. They look like fountain pens with a rotating thimble in the middle. Every time the thimble is turned, the micrometer expands. The thimble expands until the end of each tool touches the inside of the pipe, then a numbering system is used to find the measurement on the thimble.

    Q2: How does an inside micrometer work?
    A2: The picture below shows a 3-point inside micrometer with a measuring range of 11~14mm. When the force measuring device 6 is rotated clockwise, it will drive the micrometer screw 3 to rotate and make it move along the helical direction of the threaded sleeve 4, so the square conical thread at the end of the micrometer screw will push the three measuring jaws 1 For radial movement. The elastic force of the torsion spring 2 makes the measuring claw fit tightly on the square conical thread, and expands and contracts with the advance and retreat of the micrometer screw. The radial pitch of the square conical thread of the 3-point internal diameter micrometer is 0.25mm. When the force-measuring device rotates clockwise for one revolution, the measuring jaw 1 will move outward (radially) by 0.25 mm, and the diameter of the circle formed by the three measuring jaws will increase by 0.5 mm. When the microtube rotates once, the measurement diameter increases by 0.5mm and 100 equal divisions are engraved on the circumference of the microtube, so its reading value is 0.5mm÷100=0.005mm. This is how an inside micrometer works.

    Inside micrometer working principle

    Tips: Advantages of Inside Micrometer

    • Inside micrometer can provide an accurate measurement.
    • Internal micrometers have integrated scales.
    • 3 point inside micrometer is durable and long-lasting.
