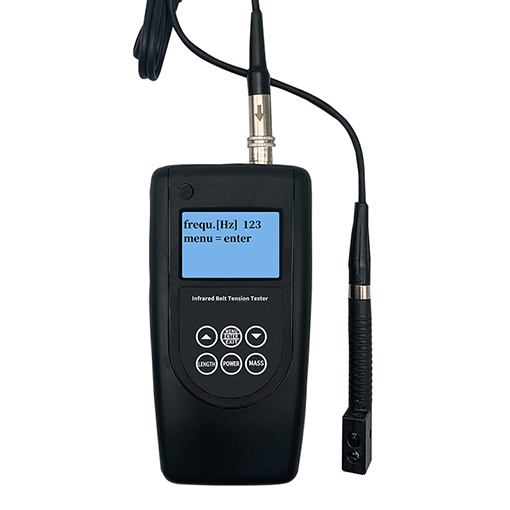

Laser Belt Tension Meter, 10-500 Hz

High-performance laser belt tension meter with 10-500 Hz measuring range, the belt tension meter uses a laser sensor, for direct measurement, more convenient than the mechanical sensor. The size of the split sensor is small, and suitable for measurement in small spaces.
SKU: SISCO-TM500
$832.54
i h
Free shipping
Delivery date: 7-12 days
Overview


Laser belt tension meter with ±5% accuracy, max frequency 500Hz. The belt tension meter can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.

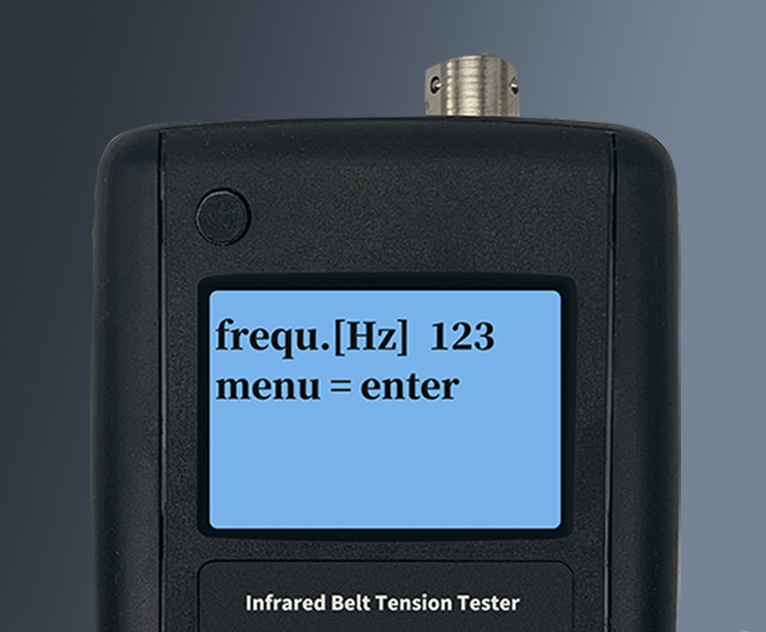

Laser belt tension meter detail

HD backlit screen display design

  • Readings are clearly visible even in dark environments
  • Easier to use

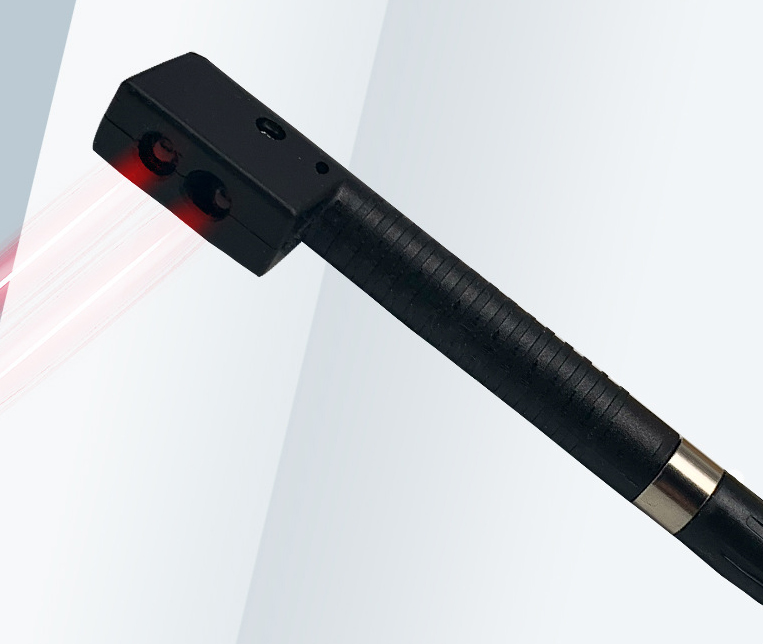

Laser belt tension meter detail

With laser sensor design

  • The remote sensor is small and suitable for measuring in tight spaces
  • Easy and fast measurement


Applications

Tension meters are instruments that measure tension in cable, fiber, belts and webs, or sheets. sisco tension meter mainly used in belt tension measurement can also be applied to measure the tension of objects such as tapes, and wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

Tension meter application

Specs



Model SISCO-BTT2880R5
Measuring Range 10-500 Hz
Input Range Max. 99.9 m
Belt Quality Max. 999.9 g/m
Digital Sampling Error <1%
Display Error ±1 Hz
Total Error <5%
Operating Temperature 10℃~50℃
Transport Temperature -5℃~70℃
Display LCD
Units of Measurement m, kg/m, N
Power Supply 4*1.5V AAA
Optical Path Measurement Distance 3-20mm
Sensor Depth about 66mm
Meter Size

Host: 178*72*34mm

Sensor: 124*21*12mm

FAQs

Q1: What is a tension meter?
A1: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models. Single-roll tension sensors and sonic tension meters are other types of tension meters. Tension may also be inferred from the frequency of vibration of the material under stress by solving the "Vibrating String Equation". Tension meters are available as handheld devices or as equipment for fixed installations. These are basically necessary to build up a tension-controlled closed loop.

Q2: What is the purpose of the tension meter?
A2: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models.

Q3: How does a tension meter work?
A3: Tension meters measure the dynamic tension in a moving yarn and regulate the tension of the yarn on a winding machine. Tension sensors are dynamic tension devices. The piezoelectric element mounted on a flexible beam is the most important part of tension sensors.

Tips: How to calibrate the tension meter?

Calibration with 2-point type: When the tensiometer is not under any tension, adjust the reading of the tensiometer to point 0, then use a weight equivalent to 80% of the range of the tensiometer (such as the tensiometer range of 10 kg, then use a weight of 8 kg) or a weight slightly larger than the tension of the material, hang it below the measured material, then hang the other end of the measured material, at this time, the tension of the measured material that is the weight of the weight. At this point, the tension value of the tensiometer can be adjusted to the weight of the weight. In this way, the calibration of the tensiometer is completed.
