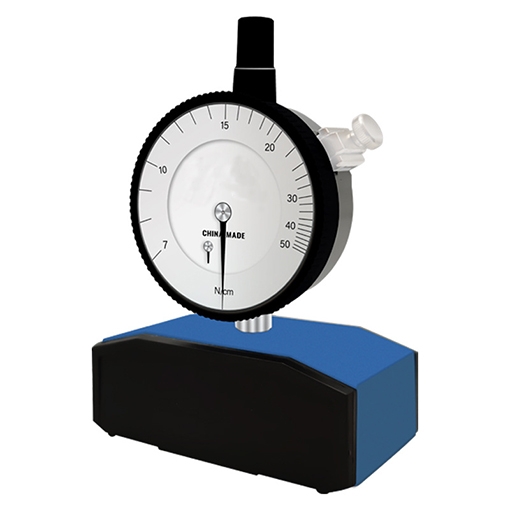

    Screen Tension Meter, 7-50N/ cm

    High-resolution screen tension meter with a measuring range of 7~50N/cm. The stencil tension meter is suitable for high-tension silk screen and stencil tension measurement, with high accuracy, it is an ideal tester for making a precision stencil and steel stencil.
    SKU: SISCO-TM50
    $372.22
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    SISCO screen tension meter with an accuracy of ±5% of full-scale, resolution 1N. The silk screen tension meter with good quality, which is easy to use, and accurate checking of the tension of the mesh is the best tool for checking tension when stretching.

    Screen tension meter detail

    Screen tension meter with 7-50N/cm measuring range.

    • Very easy to use and accurately checking the tension of the mesh is the best tool for checking tension when stretching.
    • Used for testing the mesh tension of N/cm which is a very dependable and affordable accuracy tool, with no adjustment necessary.
    • Item also includes a good packing box Good for screen printing stretching mesh and applying proper tension to make good quality long lasting frames.


    Applications

    Tension meters are instruments that measure tension in cable, fiber, belts and webs, or sheets. sisco tension meter mainly used in belt tension measurement can also be applied to measure the tension of objects such as tapes, and wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

    Screen tension meter application

    Specs



    Model SISCO-AG7-50
    Measuring Range 7-50 N/ cm
    Measurement error ±5% full range
    Operating Temperature 10℃~50℃
    Transport Temperature -5℃~70℃
    Units of Measurement N/cm
    Measurement Accuracy 1N
    Meter Size 76*42*108mm


    Dimension

    Screen tension meter dimension



    FAQs

    Q1: What is a tension meter?
    A1: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models. Single-roll tension sensors and sonic tension meters are other types of tension meters. Tension may also be inferred from the frequency of vibration of the material under stress by solving the "Vibrating String Equation". Tension meters are available as handheld devices or as equipment for fixed installations. These are basically necessary to build up a tension-controlled closed loop.

    Q2: What is the purpose of the tension meter?
    A2: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models.

    Q3: How does a tension meter work?
    A3: Tension meters measure the dynamic tension in a moving yarn and regulate the tension of the yarn on a winding machine. Tension sensors are dynamic tension devices. The piezoelectric element mounted on a flexible beam is the most important part of tension sensors.

    Tips: How to use a screen tension meter?

    Due to the constant power, mechanically measure the tightness of the screen tension meter before use:

    1. Clean the calibration glass to ensure that there is no foreign matter on the glass;
    2. Put the tensiometer on the front of the zero adjustment plate glass;
    3. If the dial pointer is not aligned with the calibration point;
    4. Twist G counterclockwise by hand until the scale-rotating disk can rotate. Rotate the scale turntable until the calibration point of the dial is aligned with the pointer, and then twist the scale lock clockwise to lock the scale turntable;
    5. Repeat the calibration again, if the calibration is normal. The tensiometer can be used for tension testing (Note: The tensiometer has been calibrated to zero before leaving the factory, and the user does not need to adjust it by himself).
    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
