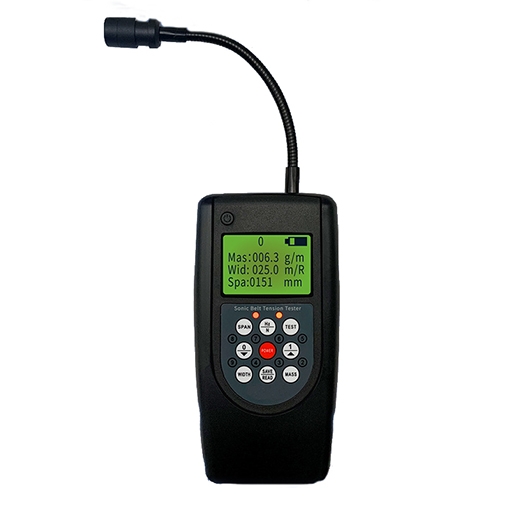

    Sonic Belt Tension Meter, 10-680 Hz

    High-quality sonic tension meter with 10-680 Hz measuring range, the belt tension meter can store 20 set belt parameters, the probe can be adjustable. The sonic belt tension meter can be used to measure the vibration frequency of the transmission belt when it is hit or moving fast.
    SKU: SISCO-TM680
    $668.25
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    Sonic belt tension meter with ±5% accuracy, max frequency 680Hz. The belt tension meter is an optically measuring maintenance tool for determining the belt tension force, a small impulse on the belt is sufficient to set the belt vibrating.

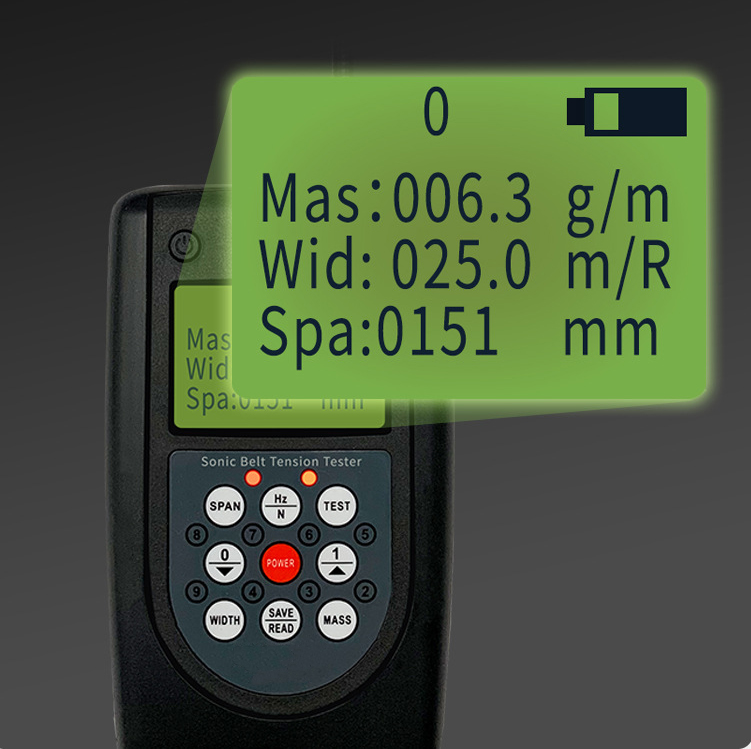

    Belt tension meter detail

    HD backlit screen display design

    • Readings are clearly visible even in dark environments
    • Easier to use

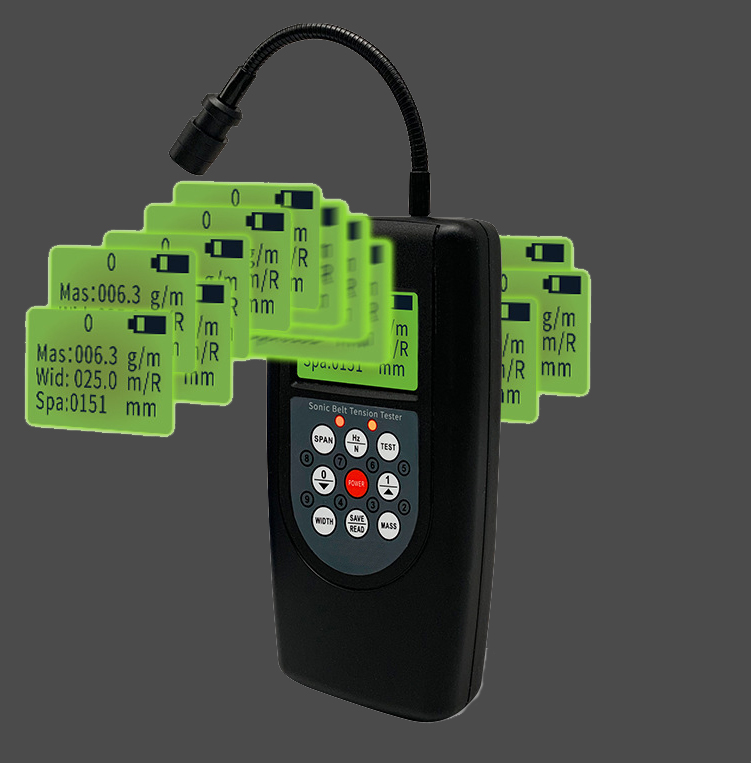

    Belt tension meter detail

    20 sets of belt data storage

    • Effective storage of frequency values for the next measurement
    • High sensitivity and fast response, more stable measurement


    Applications

    Tension meters are instruments that measure tension in cable, fiber, belts and webs, or sheets. sisco tension meter mainly used in belt tension measurement can also be applied to measure the tension of objects such as tapes, and wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, and printing.

    Tension meter application

    Specs



    Model SISCO-BTT2880S
    Measuring Range 10-680 Hz
    Free Segment Belt Length Max. 999.9 mm
    Belt Width Max. 999.9 mm/ R
    Belt Quality Max. 999.9 g/m
    Precision ±1 Hz<100Hz, ±1%>100Hz
    Digital Sampling Error <1%
    Display Error ±1 Hz
    Total Error <5%
    Operating Temperature 10℃~50℃
    Transport Temperature -5℃~70℃
    Display LCD
    Units of Measurement Hz/N
    Power Supply 4*1.5V AAA
    Shell ABS
    Meter Size 140*72*34mm
    FAQs

    Q1: What is a tension meter?
    A1: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models. Single-roll tension sensors and sonic tension meters are other types of tension meters. Tension may also be inferred from the frequency of vibration of the material under stress by solving the "Vibrating String Equation". Tension meters are available as handheld devices or as equipment for fixed installations. These are basically necessary to build up a tension-controlled closed loop.

    Q2: What is the purpose of the tension meter?
    A2: A tension meter is a device used to measure tension in wires, cables, textiles, Mechanical belts, and more. Meters commonly use a 3-roller system where the material travels through the rollers causing deflection in the center roller that is connected to an analog indicator or load cell on digital models.

    Q3: How does a tension meter work?
    A3: Tension meters measure the dynamic tension in a moving yarn and regulate the tension of the yarn on a winding machine. Tension sensors are dynamic tension devices. The piezoelectric element mounted on a flexible beam is the most important part of tension sensors.

    Tips: What is a belt tension meter?

    A belt tension meter, as the name implies, is a tool for measuring belt tension. But in general, the measurement method contains contact and non-contact; the data acquisition contains electronic and digital display types; from the belt, the state contains dynamic and static measurement; the accuracy contains high precision and low precision. In short, the user can ask the professional belt tension meter business to choose according to the actual requirements, so as to meet their own requirements, but also economical, while not worrying about the product after-sales service and other issues.
