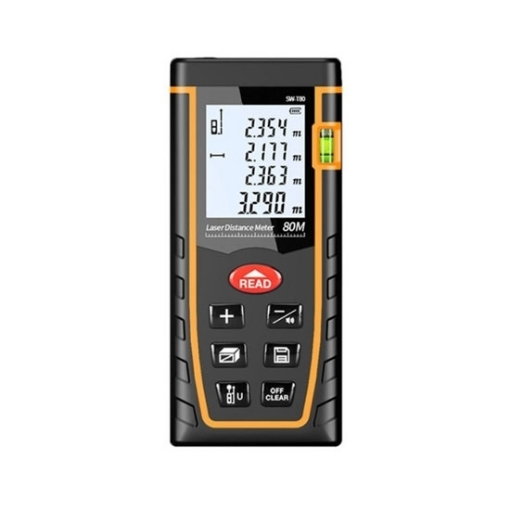

The laser distance meter has the ability to save and retrieve up to 30 records to get the job done easily, measuring distance up to 80 meters. One-piece molding, aspheric optical focusing mirror to enhance the reception of reflected light. High-quality laser components, accurate and stable measurement/ fast low power consumption.
HD backlight design
- Convenient to use in the dark environment
- Using more comfortable and convenient
30 sets of data storage
- Save at any time
- View and compare at any time
Dimension Unit (mm)
Application
Laser distance meter is widely used in terrain measurement, battlefield measurement, ranging of tanks, aircraft, ships and artillery to targets, measuring the height of clouds, aircraft, missiles and artificial satellites, etc. It is an important technical equipment to improve the accuracy of high tanks, aircraft, ships and artillery. As the price of laser distance meter continues to drop, industry is also gradually starting to use laser distance meter, which can be widely used in industrial measurement and control, mining, ports and other fields.
Â
| Basic Specification | |
| Model | SISCO-DM-T80 |
| Laser measure | 80m (262Ft) |
| Accuracy | ±2mm |
| Laser Leve | â…¡ |
| Laser Type | 635nm, < 1mW |
| Automatically Cut Off Laser | 20s |
| Automatic Shutdown | 150s |
| Storage Temperature | -20°C-60°C |
| Working Temperature | -0°C-40°C |
| Storage Humidity | 20%~ 80%RH |
| Battery | 1.5V 2*AAA |
| Battery Life | 8000 times for single measurement |
| Weight (including battery) | 110g |
| Dimension | 112* 50* 25mm |
| Certificate | CE |
| Functions | |
| Continuous Measurement Function | Yes |
| Max Storage | 30 Units |
| Area Measurement Function | Yes |
| Volume Measurement Function | Yes |
| Pythagorean Proposition Measurement Function | Full mode |
| Add and Subtract Measurement Function | Yes |
| Min/Max Value | Yes |
| Automatic Backlight | Yes |
| Buttons/Keys Sound | Yes |
Packing List
- 1 x Package color box
- 1 x Rangefinder mainframe
- 1 x Portable cloth bag
- 1 x Portable lanyard
- 2 x 7# dry battery
- 1 x Reflective plate
- 1 x Instruction manual
- 1 x Certificate of Conformity
Q1: Is laser distance meter accurate?
A1: The laser measure is accurate to within 1/8" and measures to 50 feet. It makes this measuring tool more accurate, easier and faster than a tape measure.
Q2: How do I choose a laser distance meter?
A2: Most lasers measurers are easy to fit into the palm of your hand, but some are bigger than others. If you have small hands and want a small unit that is easily controlled, or if you have big hands and need a larger laser for ease of use, check on the exact size of any model you are considering.
Q3: Do laser distance meter work outside?
A3: If you work outside, an optical scope or digital point finder is a must. Without a scope or a point finder, you can see a laser point at a maximum distance of about 30 feet on a bright day. Chances are, if you are measuring outside, 30 feet isn't going to cut it.
Tips: How to use laser distance meter?
- Install the battery, make sure the positive and negative poles are installed correctly, and also make sure the power supply is sufficient.
- Turn on the power switch, long press the mode key to select the appropriate unit.
- Through the eyepiece for debugging, aim at the measured object, press the launch button, the measured object on the display is not very clear, you can adjust the clarity through the regulator.
- Debugging is complete, by rotating the adjustment of the distance can measure the distance of different measured objects.
