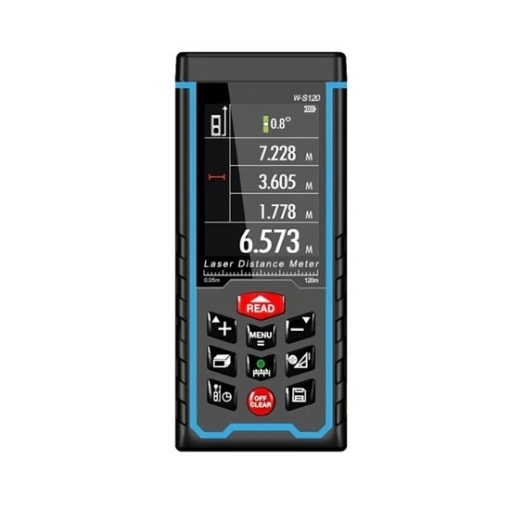

Laser Distance Meter with Camera, Digital Type, 120m

Highly accurate laser distance meter with camera, measuring range up to 120 meters, features adjustable zoom to locate the laser spot at far distances, even outdoors or in busy backgrounds. 120m digital laser distance meter provides increased durability and damage resistance.
SKU: SISCO-LDM-100C
$382.97
i h
Free shipping
Delivery date: 7-12 days
Overview


Rechargeable laser distance meter with a camera, 100 sets of data memory, illuminates numbers in dark areas with the distinct resolution, allowing work in low-light or no-light conditions.

Detail of 120m laser distance meter with camera

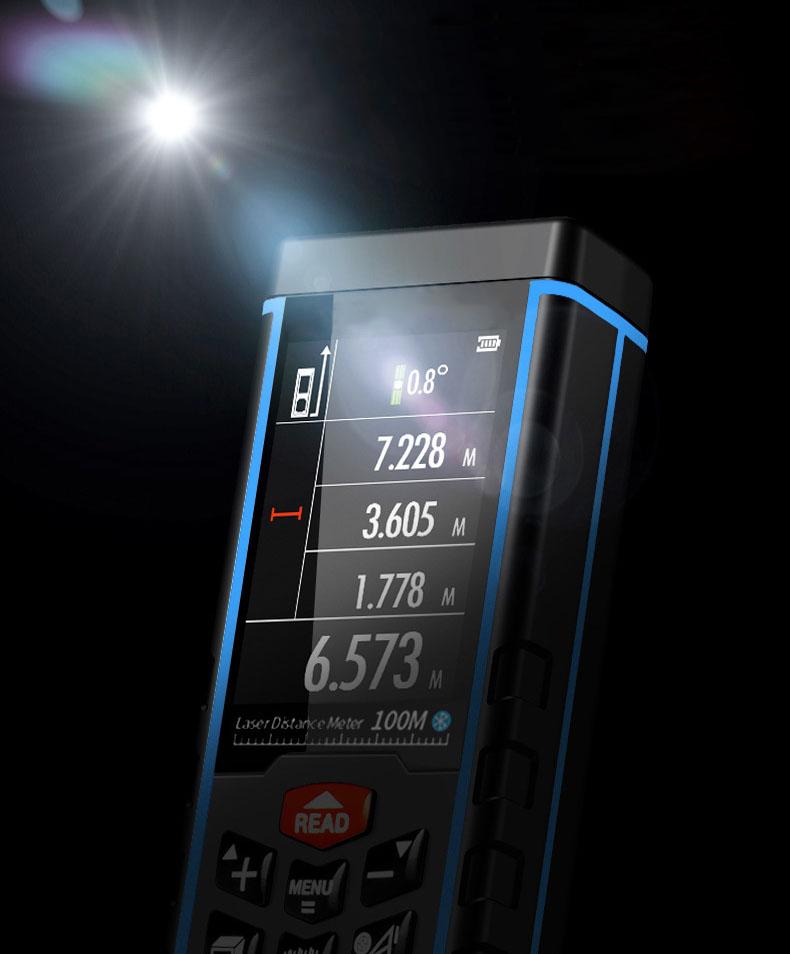

HD backlight design

  • Convenient to use in the dark environment
  • Using more comfortable and convenient

Detail of 120m laser distance meter with camera

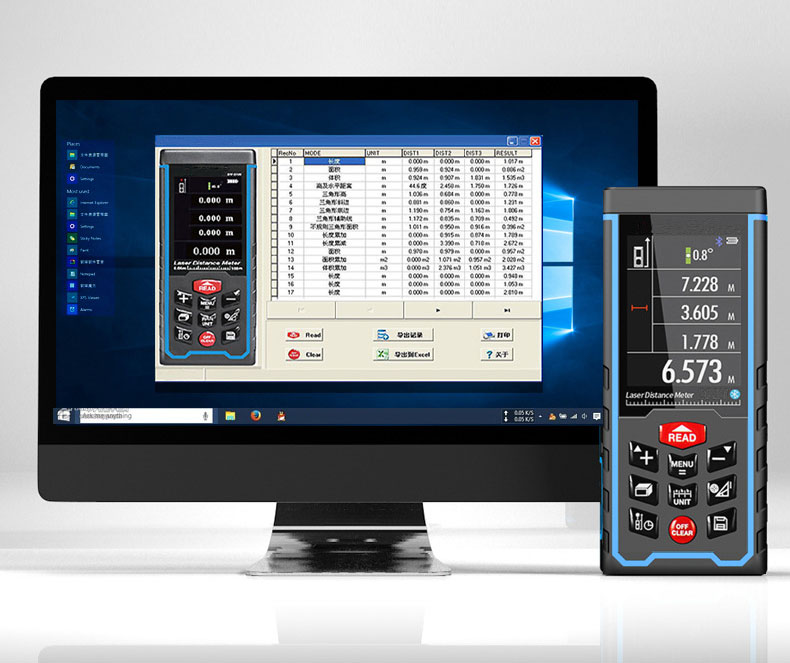

Large data storage

  • 100 sets of data storage
  • Connectable to PC via USB cable
  • Remote measurement, data export and printing

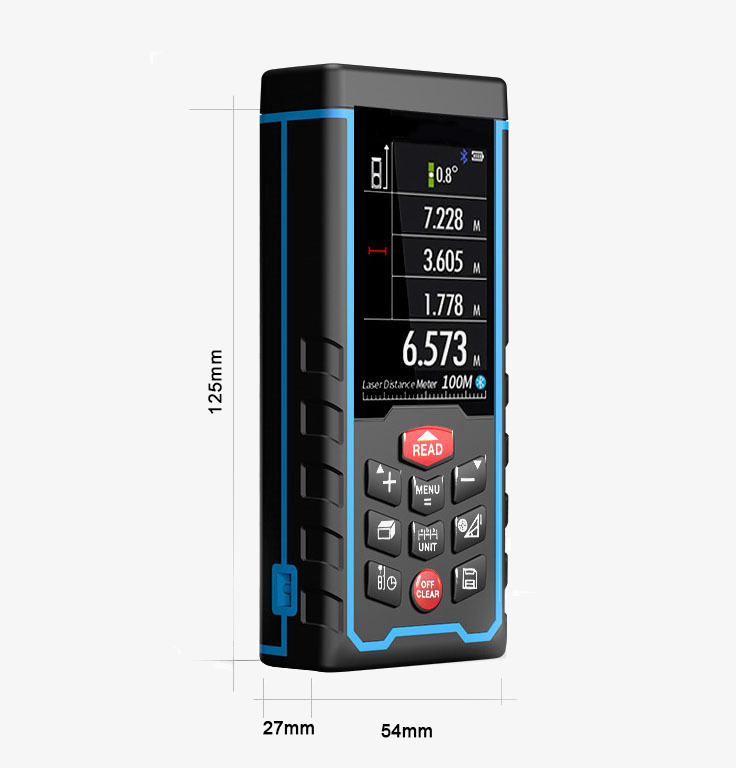

Dimension Unit (mm)

Laser distance meter with camera dimension

Application

Laser distance meter is widely used in terrain measurement, battlefield measurement, ranging of tanks, aircraft, ships and artillery to targets, measuring the height of clouds, aircraft, missiles and artificial satellites, etc. It is an important technical equipment to improve the accuracy of high tanks, aircraft, ships and artillery. As the price of laser distance meter continues to drop, industry is also gradually starting to use laser distance meter, which can be widely used in industrial measurement and control, mining, ports and other fields.

Application of laser distance meter

Specs



Basic Specification
Model SISCO-DM-S120
Laser measure 120m (393Ft)
Accuracy ±2mm
Automatically Cut Off Laser 20s
Automatic Shutdown 150s
Storage Temperature -20°C-60°C
Working Temperature -0°C-40°C
Storage Humidity 20%~ 80%RH
Battery NiMH
Ingress Protection IP54
Weight (including battery) 320g
Dimension 125* 54* 27mm
Certificate CE
Functions
Camera Yes
Continuous Measurement Function Yes
Max. Storage 100 Units
Area Measurement Function Yes
Volume Measurement Function Yes
Triangle Leg Measurement Yes
Add and Subtract Measurement Function Yes
Min/Max Measurement Yes
LCD Display Yes
Area and Volume Addition/Subtraction Yes
Outer Line Yes
Addition/Subtraction Yes
Delay Measurement Yes


Packing List

  • 1 x Laser Rangefinder
  • 1 x Bag
  • 1 x Wrist Lapel
  • 1 x USB Charging Cable
  • 1 x English User Manual
  • 3 x Rechargeable Batteries
  • 1 x Retail Box
  • 1 x Reflector
FAQs

Q1: Is laser distance meter accurate?
A1: The laser measure is accurate to within 1/8" and measures to 50 feet. It makes this measuring tool more accurate, easier and faster than a tape measure.

Q2: How do I choose a laser distance meter?
A2: Most lasers measurers are easy to fit into the palm of your hand, but some are bigger than others. If you have small hands and want a small unit that is easily controlled, or if you have big hands and need a larger laser for ease of use, check on the exact size of any model you are considering.

Q3: Do laser distance meter work outside?
A3: If you work outside, an optical scope or digital point finder is a must. Without a scope or a point finder, you can see a laser point at a maximum distance of about 30 feet on a bright day. Chances are, if you are measuring outside, 30 feet isn't going to cut it.

Tips: What are the types of laser distance meters?

Laser rangefinder is divided into handheld laser rangefinder and telescopic laser rangefinder.

  • Hand-held laser distance meter: The measurement distance is generally within 200 meters, and the accuracy is about 2mm. In addition to the function to measure the distance, it can also generally calculate the volume of the measured object.
  • Cloud service laser rangefinder: The measurement data on the laser rangefinder is transmitted to mobile terminals such as cell phones and tablet PCs in real time through Bluetooth; the data can be transmitted to the cloud server through wifi networking, and the measurement data can be shared in real-time by the construction partners at remote locations.
  • Telescopic laser rangefinder: The measurement distance is relatively long, and the general measurement range is about 3.5m-2000m, and there are also rangefinding telescopes with a maximum range of about 10km. Due to the collimation requirements of rangefinding telescopes, the blind area is below 3.5m, and the laser telescopes larger than 2000m generally use YAG laser, the wavelength of 1.064 microns, in order to achieve a larger measurement range, so the laser power is larger, it is recommended that users pay attention to laser protection.
