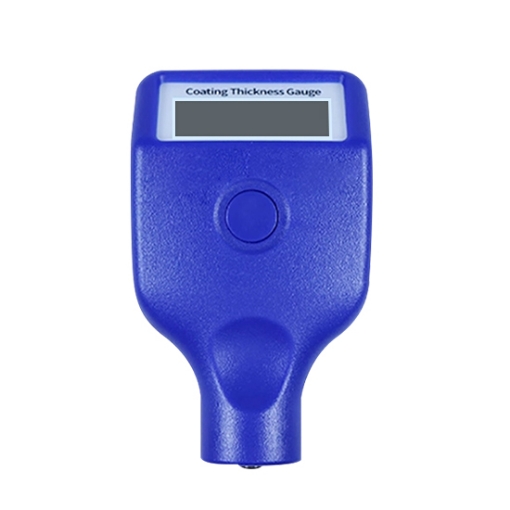

A mini digital coating thickness gauge is a compact, handheld measuring instrument used to determine the thickness of surface coatings applied to materials such as metal. One-hand operation, only one button. "Fe", "NFe", and "Fe/NFe" three measurement modes can be set. Coating gauge is widely used in manufacturing, metal processing, the chemical industry, and other fields.

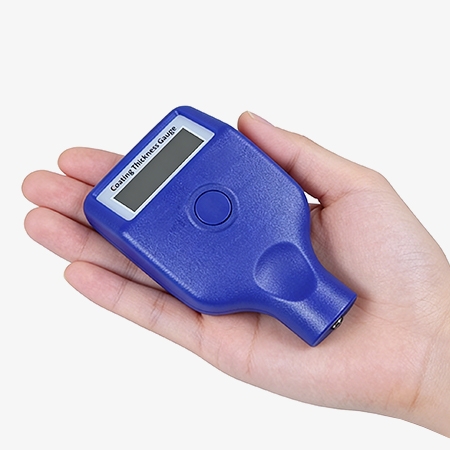

Small and Portable
- High Portability and Convenience. A small-sized coating thickness gauge is lightweight and easy to carry, making it ideal for engineers and inspectors who need to move frequently between job sites. It fits easily into a pocket or tool bag, reducing the burden of carrying heavy equipment and allowing for quick, on-the-spot measurements.
- Faster Inspection and Higher Work Efficiency. Because compact gauge is easy to handle and quick to position, it helps speed up inspection processes. Users can take measurements rapidly.
- Reduced Operator Fatigue. The ergonomic design and low weight of the small coating thickness meter reduces strain on the hands and wrists.

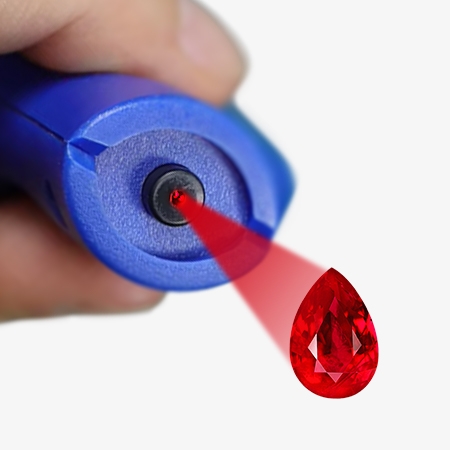

Digital Coating Thickness Gauge Adopts Ruby Probe
- Exceptional Wear Resistance. Ruby is an extremely hard material, second only to diamond. Paint thickness gauge adopts a ruby probe that can withstand repeated contact with metal, painted, or coated surfaces without significant wear.
- High Measurement Accuracy. A ruby probe maintains its shape and surface smoothness over time, it provides stable contact conditions during measurement. It is critical for quality control.
Applications
SISCO's coating thickness gauge is widely used in many industries to measure the thickness of surface coatings accurately. In manufacturing and quality control, it helps ensure paint, plating, or anodized layers meet design and industry standards. In the automotive industry, it is commonly used to check car paint thickness for quality inspection and accident repair assessment. In metallurgy and metal processing, it measures protective coatings such as galvanizing or anti-corrosion layers.

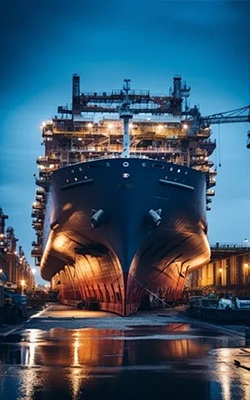

Shipbuilding Industry

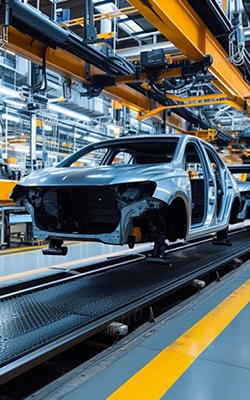

Automobile Manufacturing
Metal Processing
Aviation Industry
| Model | SISCO-DCTG-XCT325 |
| Probe Tip | Ruby fixed |
| Measuring Principle | Fe: Hall Effect / NFe: Eddy current |
| Probe Type | Built-in integrated probe |
| Measuring Range | 0-5000μm |
| Resolution | 0.1μm: (0μm ~ 99.9μm) 1μm: (100μm ~ 999μm) 0.01mm: (1.00mm ~ 5.00mm) |
| Accuracy | ≤±(3%H+2μm), H is the standard value |
| Unit | μm / mil |
| Measuring Interval | 0.5s |
| Minimum Measuring Area | Ø = 25mm |
| Minimum Curvature | Convex: 5mm / concave: 25mm |
| Minimum Substrate Thickness | Fe: 0.2mm / NFe: 0.05mm |
| Display | 128×48 dot matrix LCD |
| Power Supply | 2*1.5V AAA alkaline battery (not included) |
| Supply Voltage | DC 3V |
| Operating Current | 20mA |
| Operating Power Consumption | 60mW |
| Operation Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Dimension | 101*62*28 mm |
| Net Weight | 79g |
| Gross Weight | About 0.6kg |

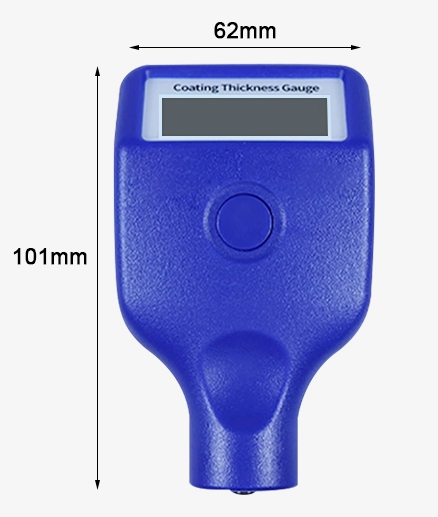

Dimension:
Q1: What is a coating thickness gauge?
A1: A coating thickness gauge is a measuring instrument used to determine the thickness of a coating applied to a surface, typically metal. It is commonly used to measure paint, powder coating, plating, anodizing, or varnish without damaging the material.
Q2: What is the measurement range of this mini digital coating thickness gauge?
A2: The coating thickness meter has a measurement range of 0–5000 μm, making it suitable for a wide variety of applications. Whether you are inspecting automotive paint, industrial coatings, or protective layers on machinery, this gauge delivers precise readings, ensuring reliable quality control.
Q3: What is the operating temperature range of this coating thickness meter?
A3: The operating temperature range of this mini digital coating thickness gauge is from 0 °C to 50 °C. This means the device is designed to function accurately and reliably within typical indoor and moderate outdoor conditions. Using the gauge outside this range may affect its performance and measurement accuracy.
Tips: What should be noted when using this coating thickness tester?
- The measurement should be point contact. It is strictly forbidden to slide the probe on the surface of the object.
- During the measurement, the probe should be kept at the center of the point to be measured.
- Keep away from strong magnets (magnets, stereos, etc.) and strong electromagnetic fields.(transformers, induction cookers, etc.)
- Zero adjustment is recommended before the gauge is used.
- Please ensure that the surface of the object under test is clean, dust and dirt on the surface to be tested will affect the measurement accuracy.
