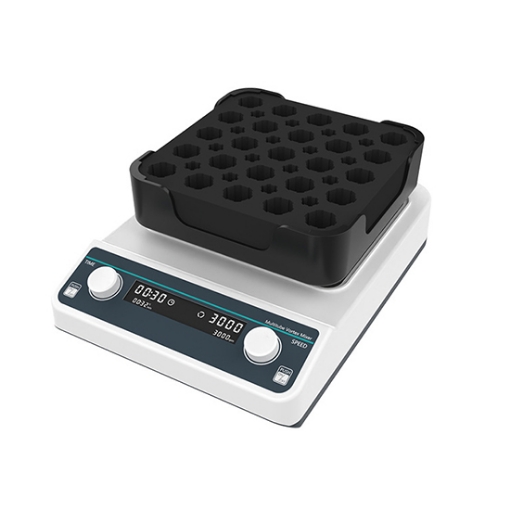

SISCO's multi-tube vortex mixer redefines high-throughput sample mixing, processing up to 50 samples simultaneously β far exceeding the capacity of conventional single-tube vortex mixers. This dramatically reduces experiment turnaround time and significantly boosts overall laboratory efficiency. The lab mixer also supports quick module swapping, allowing seamless adaptation to different sample types and tube sizes, making it a versatile solution for high-volume laboratory mixing tasks and batch sample processing.
Open Clamp Design with Digital Precision Control

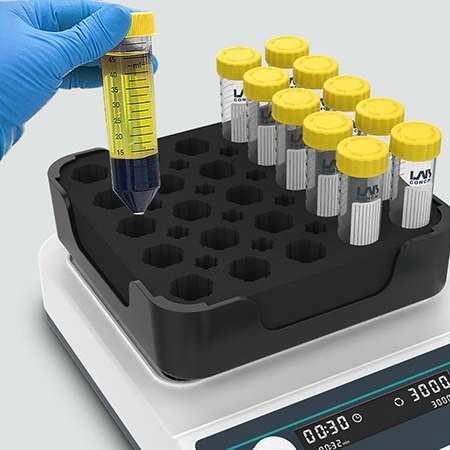

- This vortex mixer features an open-clamp design that allows quick and effortless sample loading and unloading, which significantly improves workflow efficiency, especially in batch processing tasks.

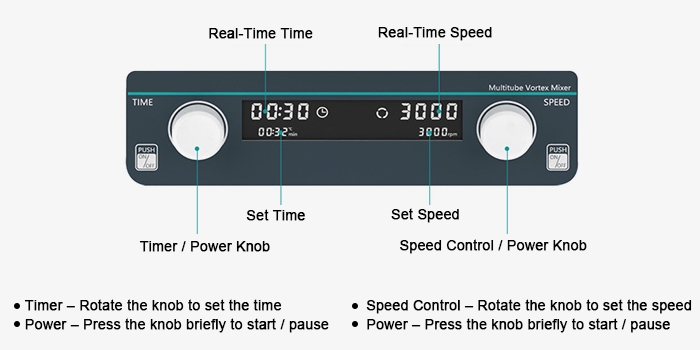

- The control system of the vortex mixer combines a digital display panel with knob adjustment, ensuring clear parameter visibility and precise control.
- Designed for typical laboratory environments (5~40Β°C, β€80% RH) and compatible with an AC 110β220 V power supply, the multi-tube vortex mixer delivers stable performance. The built-in brushless motor ensures low noise, reliable operation, and long service life for continuous lab use.
Flexible Multi-Module Configuration for Versatile Sample Processing

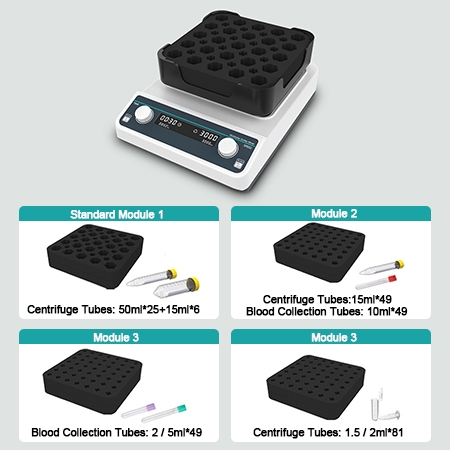

- This multi-tube vortex mixer offers a range of interchangeable modules designed to accommodate various sample container sizes, enabling versatile, high-efficiency mixing across different experimental setups, minimizing downtime, and maximizing laboratory productivity.
- The VM-600Max comes standard with Module 1 (VM601), which includes positions for 50ml*25 + 15ml*16 centrifuge tubes. Three additional optional modules are also available for specific sample processing needs.
- The VM-800Pro includes 3 standard modules and 1 optional module. For detailed module specifications and compatible container types, please refer to the specs table.
Applications
Lab mixers are widely used in biomedical research for cell culture, PCR, and immunoassays, ensuring uniform and reliable mixing of samples. In the chemical industry and scientific laboratories, lab mixing equipment supports catalytic reactions, solution preparation, protein crystallization, and nucleic acid hybridization, improving experimental stability and repeatability. In clinical testing and diagnostics, laboratory vortex mixers are commonly used for preparing blood and urine samples and for antimicrobial susceptibility testing, ensuring accurate and dependable results.
Chemical Industry
Scientific Research
Clinical Testing
Biomedical Research
Β
| Model | SISCO-LM-VM-600Max | SISCO-LM-VM-800Pro |
| Motor Type | Brushless motor | Brushless motor |
| Orbital Amplitude | 4mm | 4mm |
| Speed Range | 1500~3000rpm | 500-3000rpm |
| Speed Increment (Step) | 10rpm | 10rpm |
| Compatible Modules | Standard Module (VM-601): Centrifuge tubes 50ml*25 + 15ml*16 | Standard Module 1 (VM-801): Centrifuge tubes 50ml*15 |
| Optional Module 1 (VM-602): Centrifuge tubes 15ml*49; Blood collection tubes 10ml*49 | Standard Module 2 (VM-802): Centrifuge tubes 15ml*50; Blood collection tubes 10ml*50 | |
| Optional Module 2 (VM-603): Blood collection tubes 2/5ml*49 | Standard Module 3 (VM-803): Centrifuge tubes 1.5/2ml*72; Blood collection tubes 2/5ml*72 | |
| Optional Module 3 (VM-604): Centrifuge tubes 1.5/2ml*81 | Optional Module (VM-804): Centrifuge tubes 50ml*24 | |
| Timing Range | 1min~8h | 1min~24h |
| Module Material | EVA foam | High-density sponge |
| Control Method | Digital display + Knob control | Digital display + Knob control |
| Permissible Ambient Temperature & Humidity | 5~40β, 80% RH | 5~40β, 80% RH |
| Rated Power | 30W | 100W |
| Power Supply | AC110~220V | AC110~220V |
| Product Dimensions | (355Γ260Γ145) mm | (420Γ280Γ335) mm |
| Net Weight | 7.5 kg | 20 kg |
Β
Details
Q1: What are the key advantages of a multi-tube vortex mixer over a standard vortex mixer?
A1: A conventional vortex mixer typically handles only 1β2 samples per run, while SISCO's multi-tube vortex mixer processes up to 50 samples simultaneously, delivering a substantial leap in throughput. Combined with its interchangeable module system, the instrument accommodates a wide variety of tube sizes and container formats β making it especially well-suited for high-volume labs, batch sample processing, and applications where consistent, parallel mixing is essential.
Q2: What types of sample containers are compatible with this vortex mixer?
A2: The mixer supports multiple interchangeable modules designed to fit various centrifuge tube sizes and other common laboratory containers. For example, the VM-600Max model's standard module accepts 50 ml and 15 ml centrifuge tubes, while the VM-800Pro's 3 standard modules cover an even broader range of sample formats. For a full list of compatible container types by model, please consult the specs table.
Q3: What are the environmental and power requirements for this lab vortex mixer?
A3: This vortex mixer is designed for standard laboratory environments, operating within an ambient temperature range of 5~40Β°C and relative humidity of β€80% RH. It supports a wide-range AC 110~220 V power input, ensuring compatibility with electrical standards across different countries and regions β no additional converter required for most global lab settings.
Tips: How to choose the right module configuration for your laboratory needs?
Before purchasing, it helps to take stock of the sample container sizes you use most frequently β particularly centrifuge tube volumes and the number of tubes processed per run. Cross-referencing this with each model's module configuration table will help you identify the best fit.
If your lab works with a diverse range of sample types and tube formats, the VM-800Pro is the stronger choice: its three standard modules plus one optional module provide broad, out-of-the-box coverage for varied experimental workflows. If your work centers primarily on 50 ml and 15 ml centrifuge tubes, the VM-600Max with its standard module will meet most day-to-day needs, and its three optional add-on modules leave plenty of room to expand as requirements evolve.
