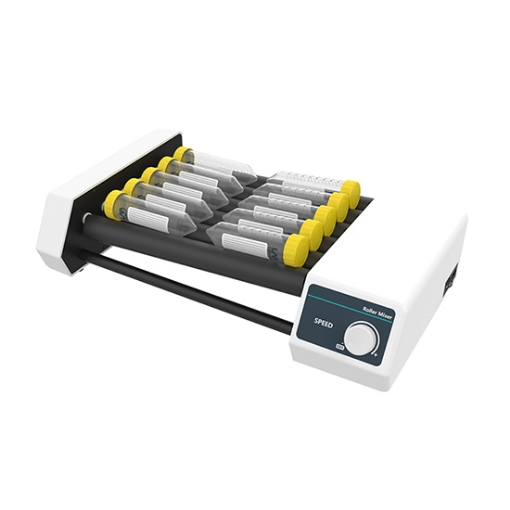

This high-low axis roller mixer is engineered for reliable performance and smooth, consistent mixing. The high-quality silicone rollers are wear-resistant and gentle on tube surfaces, while the combined rocking-and-rolling motion ensures thorough, homogeneous sample mixing throughout each run. With built-in timer and speed-control functions and a brushless motor for stable, low-maintenance operation, this roller mixer delivers the durability and precision that professional laboratories demand.

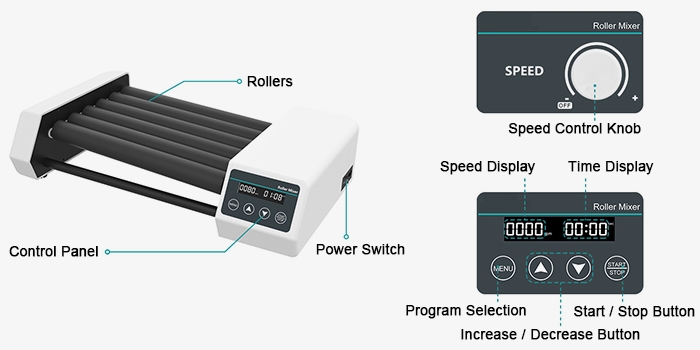

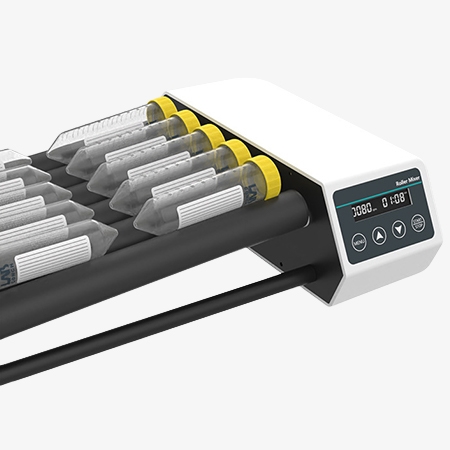

Digital Control with Flexible Roller Configuration
- This lab roller mixer features an optional LCD with electronic control, allowing precise adjustment of speed and time while providing real-time parameter monitoring.
- The intuitive touch interface ensures easy operation and accurate control, helping users quickly understand the working status of the instrument.
- Available in 6-roller or 8-roller designs, the roller mixer can flexibly accommodate different tube sizes and quantities, making it suitable for both low-volume and high-throughput laboratory workflows.

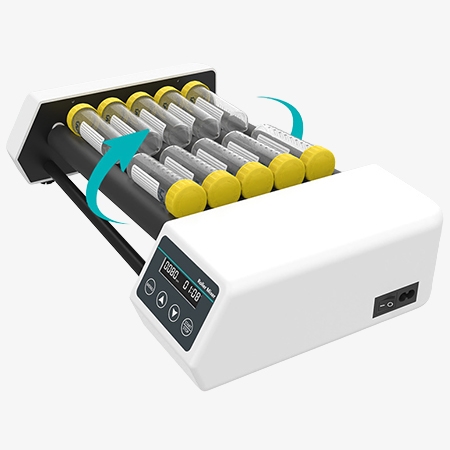

Smooth Silicone Rollers with Anti-Jamming Design
- The rollers of the lab mixer are made of premium silicone material, ensuring smooth rotation and gentle handling of sample tubes during operation.
- The combined rocking and rolling motion allows samples to continuously tumble and mix evenly, resulting in improved mixing performance.
- In addition, the internal structure has been optimized with an anti-jamming design, which reduces friction during operation and ensures smooth, stable performance even during extended use. This enhances reliability and minimizes interruptions in laboratory mixing processes.
Applications
Lab mixers are widely used in biomedical research for cell culture, PCR, and immunoassays, ensuring uniform and reliable mixing of samples. In the chemical industry and scientific laboratories, lab mixing equipment supports catalytic reactions, solution preparation, protein crystallization, and nucleic acid hybridization, improving experimental stability and repeatability. In clinical testing and diagnostics, laboratory vortex mixers are commonly used for preparing blood and urine samples and for antimicrobial susceptibility testing, ensuring accurate and dependable results.
Chemical Industry
Scientific Research
Clinical Testing
Biomedical Research
| Model | SISCO-LM-RM-6 | SISCO-LM-RM-6Pro | SISCO-LM-RM-8Pro |
| Motion Type | Rocking & Rolling | Rocking & Rolling | Rocking & Rolling |
| Motor Type | Brushed Motor | Brushless Motor | Brushless Motor |
| Speed Range | 20~80 rpm | 20~80 rpm | 20~80 rpm |
| Number of Rollers | 6 | 6 | 8 |
| Max. Load Capacity | 10 × 50 ml centrifuge tubes / 0.5 kg | 10 × 50 ml centrifuge tubes / 0.5 kg | 14 × 50 ml centrifuge tubes / 0.7 kg |
| Roller Length | 280 mm | 280 mm | 280 mm |
| Roller Center Spacing | 34 mm | 34 mm | 34 mm |
| Applicable Tube Diameter | φ6~34 mm | φ6~34 mm | φ6~34 mm |
| Timer Range | None | 1 min~23h59 min | 1 min~23h59 min |
| Control Mode | Knob | Digital Display + Button | Digital Display + Button |
| Ambient Temp. & Humidity | 5~40°C, 80% RH | 5~40°C, 80% RH | 5~40°C, 80% RH |
| Power Supply | AC 100~220 V | AC 100~220 V | AC 100~220 V |
| Rated Power | 25 W | 25 W | 25 W |
| Product Dimensions | (440 × 255 × 105) mm | (440 × 255 × 105) mm | (430 × 320 × 100) mm |
| Net Weight | 3 kg | 3 kg | 4 kg |
Details
Q1: What is the practical difference between the non-digital and digital display models?
A1: The non-digital roller mixer offers a straightforward, cost-effective solution well-suited to routine mixing tasks where precise speed or time control is not a critical requirement. The digital display model, by contrast, features an LCD touch screen for exact parameter input and real-time data monitoring — making it the preferred choice for laboratories that need to replicate specific mixing conditions, maintain detailed experimental records, or ensure strict reproducibility across runs. For research-grade or regulated environments, the digital model provides a clear advantage in traceability and operational consistency.
Q2: Can this roller mixer handle sample tubes of different diameters at the same time?
A2: Yes. Any sample tube with a diameter within the φ6–34 mm range can be placed between the rollers and run simultaneously. For the most consistent mixing results, it is advisable to group tubes of similar diameter within the same batch, as this ensures even contact pressure across all samples. If your workflow involves a wide range of tube sizes, consider the spacing differences between the 6-roller and 8-roller models when selecting the most suitable configuration.
Q3: Will the lab roller mixer experience jamming or unusual noise during long-term operation?
A3: This mixer features an internally optimized, anti-jam drive structure that effectively minimizes mechanical friction, ensuring smooth, stable operation under normal working conditions. Should any unusual noise occur, we recommend checking that all sample tubes are seated flat and evenly between the rollers, and that the instrument is placed on a stable, level surface. The built-in brushless motor further reduces mechanical wear, supporting reliable long-term performance with minimal maintenance.
Tips: How should I choose between the 6-roller and 8-roller mixers?
The right choice comes down to the tube sizes and throughput requirements of your typical experiments.
- The 6-roller mixer offers wider spacing between rollers, making it better suited for larger-diameter tubes — such as big centrifuge tubes or containers holding viscous liquids — where more clearance makes loading and unloading easier.
- The 8-roller mixer, on the other hand, can accommodate more small-diameter tubes simultaneously, such as blood collection tubes or compact centrifuge tubes, and is the stronger choice for high-throughput batch mixing workflows. If your laboratory regularly works with a variety of tube sizes and sample types, the combination of the digital display model and the 8-roller configuration offers the best balance of adaptability and parameter reproducibility — helping you get the most out of your roller mixer investment.
