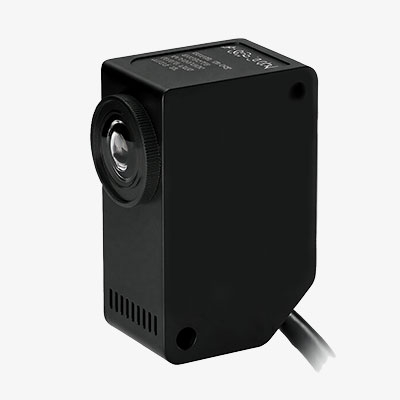

SISCO photoelectric color light sensor uses a three-color LED light source with 640/525/470 nm wavelengths. It features a 4-digit red LED display, adjustable sensitivity, 1–500 ms timer function, and ECO mode. Output 2 provides reverse action, with short-circuit protection. The PBT body, polycarbonate display, silicone rubber buttons, and glass lens ensure durability and stable detection.
Dual-Mode High-Speed and High-Precision Detection
- Color mark mode automatically selects one of R/G/B colors, achieving an ultra-fast 45 μs response.
- RGB three-color light is used simultaneously in color mode, judging color marks by the R·G·B ratio with high accuracy.
- Detection distance reaches 7–13 mm, with a spot size of about 1×5 mm at 10 mm for fine mark recognition.
- Sensitivity adjustment supports 2-point teach, full-auto teach, 1-point teach, and fine-tuning for stable detection.
Industrial-Grade Digital Output and Flexible Integration
- NPN or PNP signal output is available, with Output 2 acting as the reverse action of Output 1.
- 12–24 VDC operation includes short-circuit protection for industrial control voltages.
- IP67 protection, a PBT housing, and a glass lens provide resistance to environmental interference.
- A 4-digit red LED display, 1–500 ms timer function, and external teach input enable flexible setup.
Applications

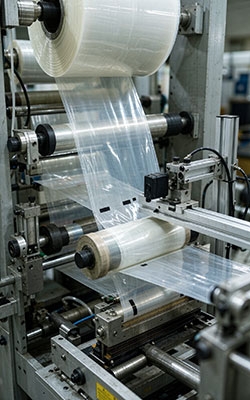

SISCO photoelectric color light sensor is ideal for packaging machine color mark detection, copper foil tape inspection, film pattern recognition, and PLC-based automation lines, ensuring fast and accurate color discrimination in industrial environments.
Color Mark

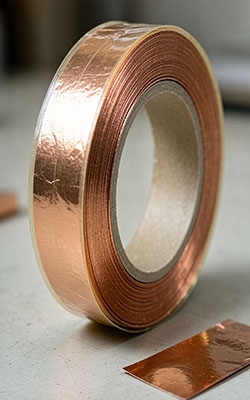

Copper Foil
Film Pattern

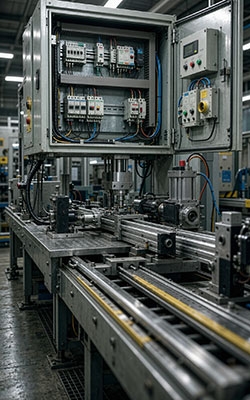

PLC Line
| Model | SISCO-CS-FGS-31N | SISCO-CS-FGS-31P |
| Output | NPN | PNP |
| Detection Distance | 7–13 mm | |
| Light Source Type | RGB three-color light | |
| Spot Size | Approx. Φ15 mm (at 100 mm) | |
| Power Supply Voltage | 12–24V DC, +10% / −10% | |
| Power Consumption | Normal mode: ≤750 mW (at 24V DC, current consumption ≤30 mA) ECO mode: ≤600 mW (at 24V DC, current consumption ≤25 mA) |
|
| Teaching Input | Low (ON): 0–2V DC, output current ≤0.5 mA, input impedance approx. 10 kΩ; High (OFF): 5–V+ DC |
|
| Output 1 (OUT) | Maximum load current: 50 mA (Note 1); external supply voltage < 30 V DC; Residual voltage between OUT1 and 0 V < 1.5 V (when load current is 50 mA, Note 1) |
|
| Output 1 Operation | Color mode: Light ON / Dark ON (automatically set during teaching); Color mark mode: Same color ON / Different color ON (set during teaching) |
|
| Output 1 Short-Circuit Protection | Equipped | |
| Output 2 (Reverse Output) (OUT) | Maximum load current: 50 mA; external supply voltage ≤30V DC (between OUT2 and 0V); Residual voltage < 1.5 V (when load current is 50 mA) |
|
| Output 2 Operation | Reverse operation of Output 1 | |
| Output 2 Short-Circuit Protection | Equipped | |
| Response Time | Color mode: ≤45 μs; Color mark mode: ≤150 μs | |
| Weight | Approx. 120 g | |
| Counter Function | Equipped; timer delay/timer OFF delay/timer mode available Preset time: 1–500 ms, adjustable in 9 stages |
|
| Digital Display | 4-digit red LED display | |
| Sensitivity Adjustment Method | Color mode: 2-point teaching / full-auto teaching; Color mark mode: 1-point teaching | |
| Sensitivity Setting Confirmation Function | Equipped | |
| Protection Structure | IP67 (IEC) | |
| Operating Ambient Temperature | −10 to +55°C (no condensation or freezing); storage: −20 to +70°C | |
| Operating Ambient Humidity | 35–85% RH; storage: 35–85% RH | |
| Light-Emitting Element | Red/green/blue composite LED (emission wavelengths: 640 nm / 525 nm / 470 nm) | |
| Cable | 0.2 mm², 4-core, PVC-insulated, 2 m cable | |
| Material | Main housing: PBT; display cover: polycarbonate; operation button: silicone rubber; lens: glass | |

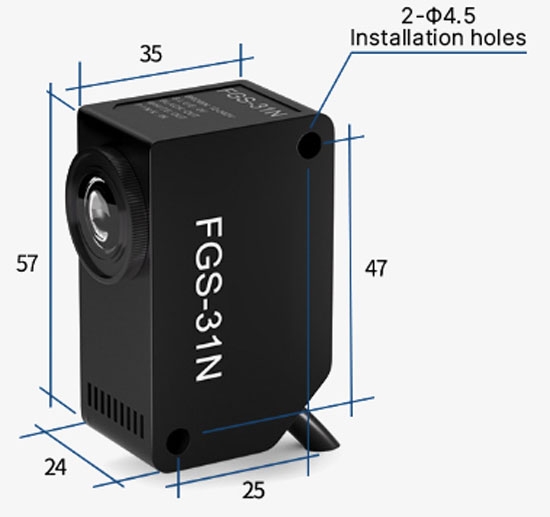

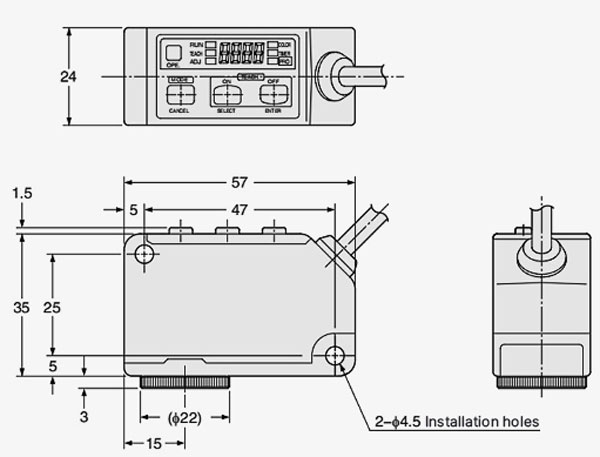

Dimensions (unit: mm)

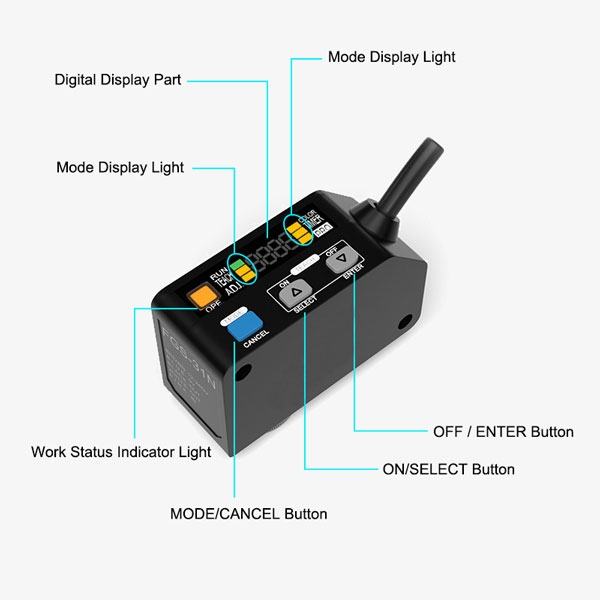

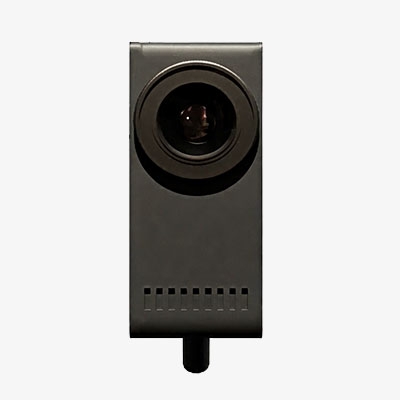

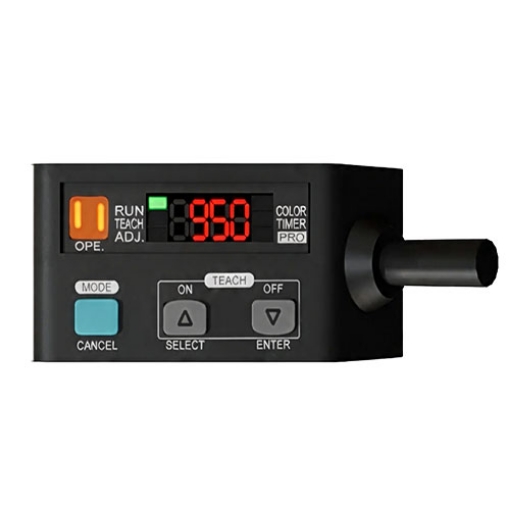

Details

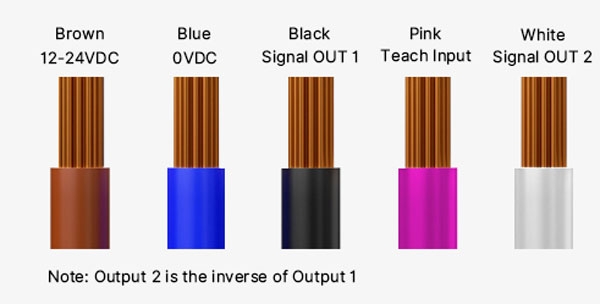

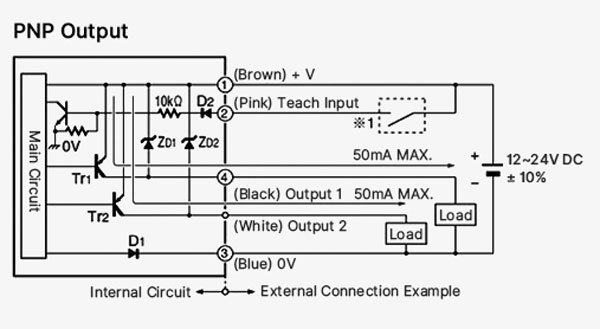

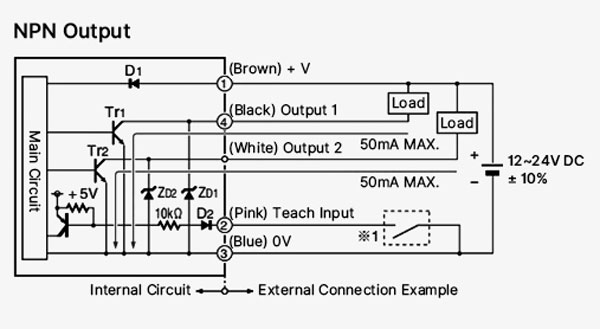

Wiring Method
Q1: What is the detection distance and spot size of the photoelectric color light sensor?
A1: With a detection range of 7–13 mm, this photoelectric color light sensor projects a spot of about 1×5 mm at 10 mm, enabling precise color mark detection.
Q2: How fast does the photoelectric color light sensor respond in different modes?
A2: Response time reaches 45 μs in color mark mode and 150 μs in color mode, allowing the photoelectric color light sensor to support high-speed, high-precision color discrimination.
Q3: What signal output and protection does the photoelectric color light sensor provide?
A3: Featuring NPN or PNP output with reverse action on Output 2, this photoelectric color light sensor also includes short-circuit protection, 12–24 VDC operation, and IP67 protection for industrial integration.
Tips: What factors affect the accuracy and stability of a photoelectric color light sensor?
- Detection distance outside 7–13 mm or misalignment of the 1×5 mm spot at 10 mm can reduce signal stability.
- Similar background colors or patterned marks may require color mode, which uses RGB ratio for higher discrimination.
- Incorrect teach settings or sensitivity adjustment can lead to false triggers or missed marks.
- Strong ambient light, reflective surfaces, dust on the lens, unstable 12–24 VDC power, or incorrect NPN/PNP wiring may cause unreliable output.
