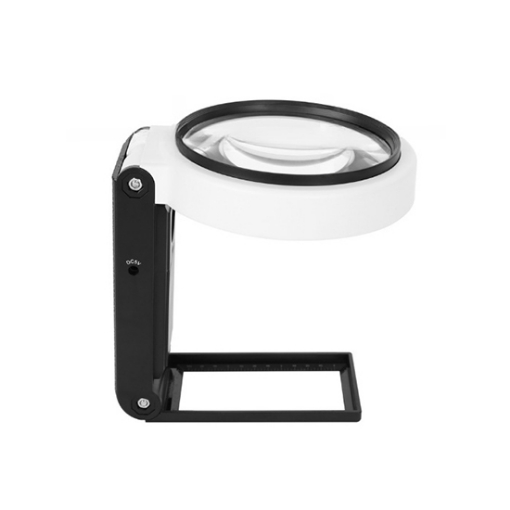

This portable folding magnifying glass is ergonomically designed for use as both a desktop magnifying glass and a handheld magnifier. The head features built-in UV and LED lights, allowing flexible switching for different tasks. Whether you are reading books, authenticating antiques, or performing jewelry appraisals, this lighted magnifying glass provides clarity and convenience in every scenario.
Clear Vision & Dual Power Supply

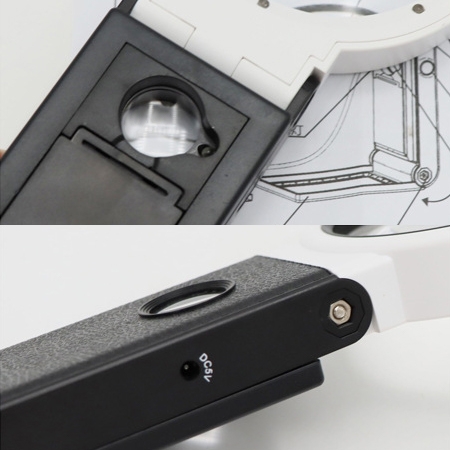

- Featuring an 80~110mm large optical lens, this portable folding magnifying glass delivers a wide field of view and sharp image quality. It supports dual power options: an external power supply (AC 110–250V, 50/60Hz, DC 5V, 500mA) – safe and efficient, suitable for global voltage standards.
- The magnifier also supports 3 × AAA batteries – automatically activated when unplugged, ensuring flexible and portable use anytime.
3 Lighting Modes & Multi-Functional Design

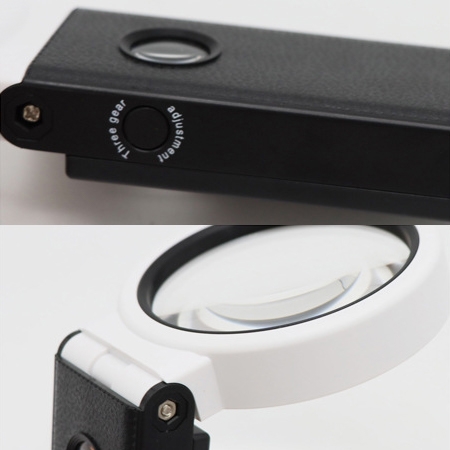

- The magnifying hand lens comes with a 3-stage light switch: 5 LED lights for comfortable reading, 2 UV lights for gemstone inspection, currency verification, and jewelry authentication, and one high-power LED light focused on the dual-lens area for detailed close-up work.

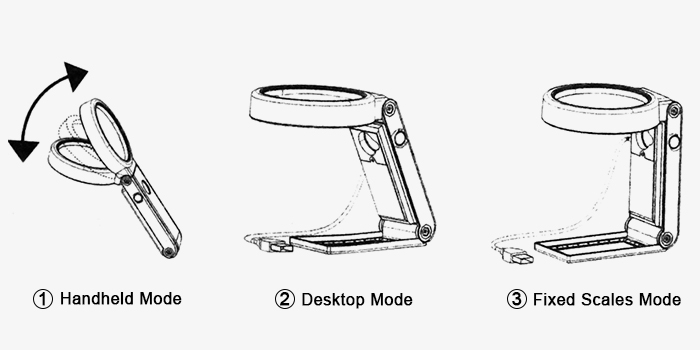

- Additionally, the 90° rotating hinge allows the foldable magnifying glass to transform into handheld mode, desktop mode, or fabric inspection mode, adapting to different work environments with ease.
Applications
A magnifying glass is a versatile inspection tool for electronics repair, helping technicians view tiny components and circuit lines with precision. As a reading aid, it assists people with poor eyesight in reading books and newspapers clearly. For children’s exploration, a handheld magnifier reveals insects, plants, and the microscopic world, inspiring curiosity. In drawing, blueprint reading, and fine crafting, a desk magnifier or loupe makes intricate details easier to see, enhancing accuracy across various tasks.
Reading Books & News
Children's Exploration
Drawing & Blueprints
Electronics Repair
Â

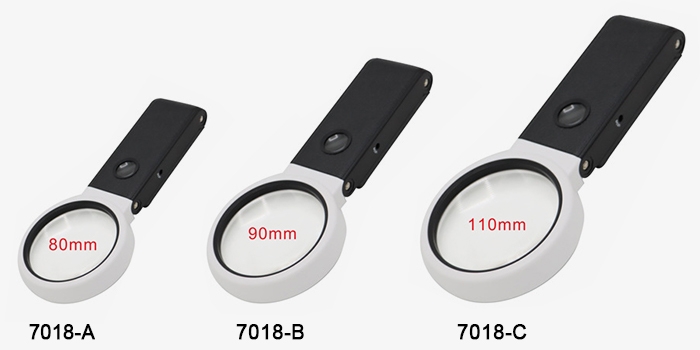

| Model | SISCO-MG-7018-A | SISCO-MG-7018-B | SISCO-MG-7018-C |
| Magnification | Large lens 6X / Small lens 25X | Large lens 5X / Small lens 25X | Large lens 3.5X / Small lens 25X |

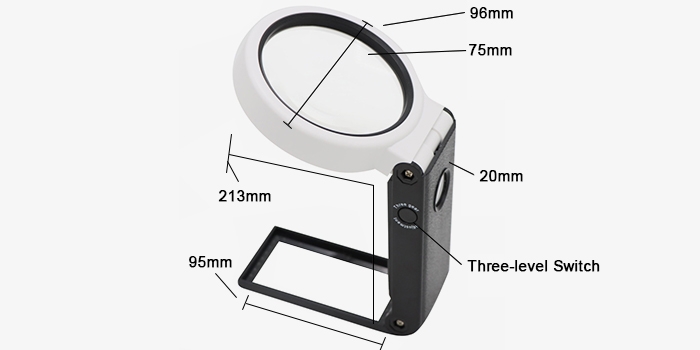

| Effective Lens Diameter | Large lens 80mm / Small lens 20mm | Large lens 90mm / Small lens 20mm | Large lens 110mm / Small lens 20mm |
| Product Size | 215Ă—95Ă—26 (mm) | 226Ă—107Ă—26 (mm) | 245Ă—128Ă—26 (mm) |
| Net Weight | 150g | 177g | 217g |
| Material | ABS, Acrylic Optical Lens | ||
| Battery Type | 3 Ă— AAA batteries (not included) | ||
| Light Source | 6 LED lights + 2 UV lights | ||
Â
Details
Q1: In what situations can this portable folding magnifying glass be used?
A1: This versatile magnifying hand lens is ideal for a wide range of tasks, such as reading books, newspapers, or documents with enhanced clarity; inspecting jewelry, antiques, stamps, or coins for authentication; assisting in electronics repair and precision handicrafts; and even serving as a temporary light source during outdoor activities with its built-in LED lights. Its dual design—desktop mode and handheld mode—adapts easily to different needs.
Q2: How do I switch between the different lighting modes, and what are they used for?
A2: The folding magnifying glass features a three-stage power switch: the first mode activates 5 LED white lights for everyday reading and general observation; the second mode turns on 2 UV lights for jewelry inspection, anti-counterfeit checks, and fluorescence detection; the third mode powers the LED located by the high-magnification lens for detailed, close-up viewing. Press the switch again to turn off all lights.
Q3: How does the magnifier switch between external power and batteries?
A3: When connected to an external power source (AC 110–250V), the portable magnifying glass automatically prioritizes external power while disconnecting the internal batteries to prevent unnecessary drain. For portable use, simply unplug the external adapter, and the magnifier will switch to battery mode (3 AAA batteries) with no extra steps required.
Tips: How to get the best results with the UV light function?
- For jewelry authentication or anti-counterfeit detection, use the UV light in a dark environment to make fluorescence effects more visible.Â
- If the UV light appears dim, replace the AAA batteries or connect to external power for stronger illumination.Â
- Avoid staring directly into the UV beam for long periods—wear protective glasses or observe indirectly to protect your eyes.
