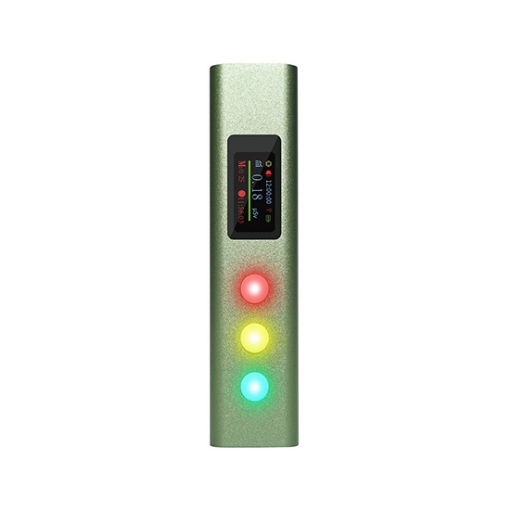

The Geiger counter radiation detector uses professional counters as the core sensors which can accurately detect β γ And X updated once per second. This digital radiation detector features a 0.96-inch OLED display screen and can generate a data document that can store up to 50,000 sets of data. SISCO radiation detector is widely used in existing ionizing radiation environments such as home decoration, radiation production, nuclear power plants, petrochemicals and geological surveys etc.

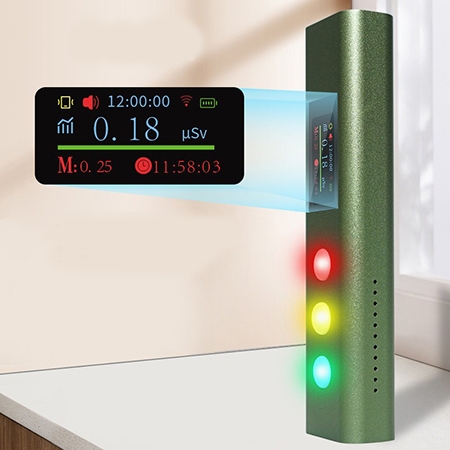

Automatic Day/Night Display Mode
- Automatic Day/Night Display Mode: The detector intelligently switches between bright day mode and low-glare night mode according to ambient light conditions. This ensures clear visibility whether you are conducting inspections outdoors under strong sunlight or checking radiation levels in dim indoor environments.
- Adaptive Backlight Adjustment: The screen brightness adjusts in real time to prevent reflections in daylight and reduce eye strain in the dark, providing a comfortable and accurate reading experience in any lighting situation.
- Enhanced Readability in All Environments: With its high-contrast interface and adaptive display, the detector maintains excellent readability during fieldwork, emergency response, or nighttime monitoring tasks.
- Energy-Efficient Display Control: The automatic brightness system helps reduce unnecessary power consumption, extending battery life during long outdoor operations or extended monitoring sessions.

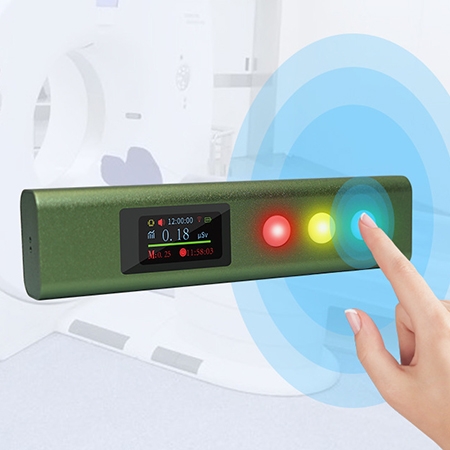

One-Button Power-On, Easy to Use
- One-Button Power-On: Designed for quick use, the detector turns on instantly with a single button press, making radiation checks fast and effortless.
- Simple and User-Friendly Operation: The intuitive control layout allows beginners and professionals to operate the device easily without complex setup steps.
- Quick Start for Immediate Measurement: The detector begins reading radiation levels within seconds after powering on, ideal for rapid inspections and on-the-go safety checks.
Dimension
Applications
SISCO radiation detector is a device used to detect and measure ionizing radiation, such as alpha, beta, gamma rays, and neutrons. Radiation detectors are used in medical imaging, industrial safety, environmental monitoring, and security to measure ionizing radiation. They help ensure safe radiation levels, detect contamination, and prevent the unauthorized transport of radioactive materials. They’re also crucial in scientific research for studying radiation effects.
Environmental
Security
Industrial
Medical
| Model | SISCO-RD-HZ-002 |
| Sensor Type | Energy-compensated GM tube |
| Measurable Type | β-rays, γ-rays, X-rays |
| Energy Range | 20keV~3.0keV≤±30% (137Cs-) |
| Sensitivity | 80cpm/μSV/(Co-60) |
| Resolution | 0.01μSV/h |
| Measurement Range | 9999μSV/h |
| Real-time Error | ≤3% |
| Power Supply | 5V/USB 3.7V lithium battery/500 mAh |
| Charging Time | 1~2 hours |
| Dimensions | 110*27*16mm |
| Weight | 60g |
Q1: What is a radiation detector?
A1: A radiation detector is a device designed to detect and measure ionizing radiation, such as alpha, beta, gamma rays, and neutrons. These detectors work by sensing the interaction of radiation with matter, often producing an electrical signal that correlates with the intensity or type of radiation present. Radiation detectors come in various types, including Geiger-Müller counters, scintillation detectors, and solid-state detectors, each tailored to detect different forms of radiation or provide varying levels of sensitivity.
Q2: Do radiation detectors need calibration?
A2: Yes, radiation detectors need regular calibration to ensure accurate and reliable measurements. Calibration involves adjusting the detector to account for any changes in its performance over time, which can be caused by factors such as aging components, environmental conditions, or variations in detector sensitivity. Regular calibration helps maintain the accuracy of the readings and ensures that the detector provides precise data for assessing radiation levels. Calibration is typically performed using known radiation sources and may be required by regulatory standards to ensure compliance and safety.
Q3: Can radiation detectors detect non-ionizing radiation?
A3: Most radiation detectors are designed to detect ionizing radiation, such as alpha, beta, gamma rays, and neutrons. Non-ionizing radiation, which includes radio waves, microwaves, infrared, and visible light, requires different types of sensors. For example:
- Radio frequency (RF) meters and electromagnetic field (EMF) meters are used to measure non-ionizing radiation like radio waves and microwaves.
- Photodetectors (such as photodiodes) measure visible light, while infrared sensors detect infrared radiation.
Tips: Can I use the nuclear radiation detector to check building materials?
Yes, a portable nuclear radiation detector can be used to check building materials for elevated radiation levels. Materials such as granite, marble, ceramics, tiles, and certain concrete mixes may naturally contain trace amounts of radioactive elements like uranium, thorium, or potassium-40. By placing the detector close to the surface, you can identify whether the material emits radiation above typical background levels.
However, keep in mind that while the detector can detect increased radiation, it cannot provide detailed chemical analysis or identify the exact radioactive isotopes present. For precise testing, laboratory-grade equipment would be required.
