The radiation monitor is a professional nuclear radiation measurement instrument capable of simultaneously monitoring three different types of radiation—nuclear radiation, electric field strength, and magnetic field strength—in real time. It is suitable for various settings, including homes, offices, cars, and outdoors.
Multi-range Nuclear Radiation Detection
- Utilizing an energy-compensated GM tube (Geig counter tube) as the detector, it can detect dose rates from 0.01 uSv/h to 999.99 uSv/h, with a sensitivity of 80 CPM/uSv.
- In addition to real-time dose rate measurement, it also features cumulative dose measurement, recording cumulative dose equivalents from 0.00 uSv to 500.0 mSv, with an energy response range of 48 keV to 1.5 MeV.
- Users can freely set the measurement units as needed. Nuclear radiation units can be selected as uSv/h, uGy/h, mR/h, CPS, CPM, etc.; magnetic field units can be selected as μT, mG, etc.
Intelligent Combined Alarm

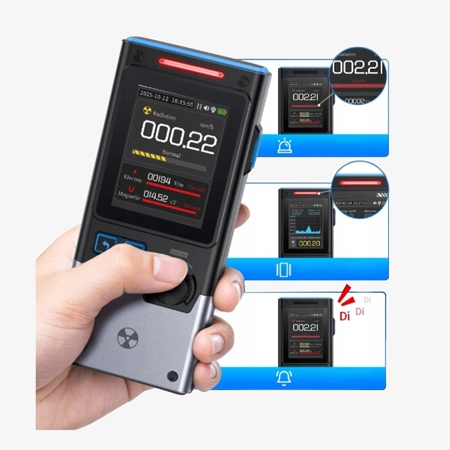

- Three alarm modes—sound, vibration, and light—can be freely combined and set; the instantaneous nuclear radiation dose, cumulative dose alarm thresholds, and electromagnetic field (electric field, magnetic field) intensity alarm thresholds can be automatically adjusted.
- The device has a built-in alarm logging function that automatically records the time, type (e.g., nuclear radiation, electric field, magnetic field), and measurement data for each alarm triggered.

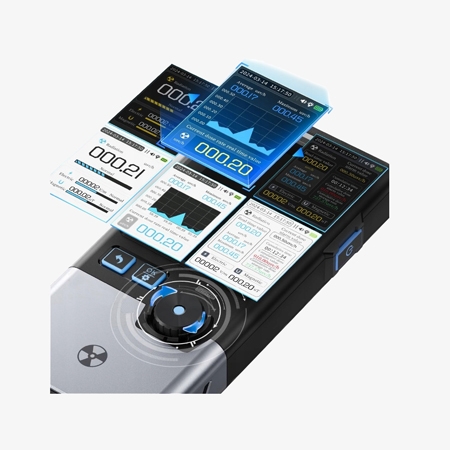

- A 2.4-inch high-definition color screen displays various measurement values, units, and hazard assessments in real time on the main interface. A rotary knob allows switching between the main interface, data curve interface, and data list interface.
Applications
Radiation detectors have a wide range of applications: they can detect radiation leakage from industrial equipment (such as high-frequency heating), assess the power frequency electric field strength of high-voltage power facilities, monitor the electromagnetic environment compliance around communication base stations, and be used for environmental background surveys and acceptance testing in the field of safety and environmental protection, providing comprehensive protection for environmental and personnel safety.
High-voltage Power
Equipment Operation
Protection Testing
Communication Station
| Model | SISCO-RD-GC03 |
| Screen Material | 2.4-inch color screen |
| Backlight | Brightness Adjustable |
| Power Supply | TYPE-C(5V/1A) |
| Battery | 1500mAh |
| Product Size | About 138mm×63mm×32mm |
| Net Weight | 141g |
Structural Diagram

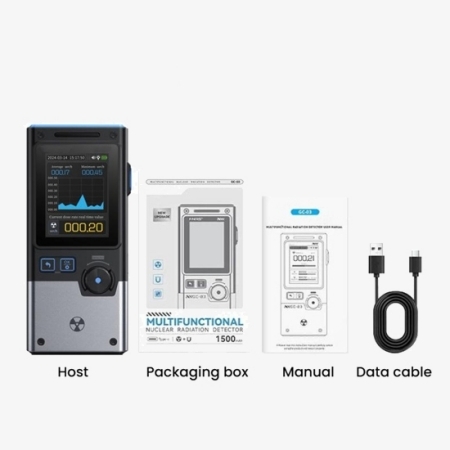

Packaged List
Q1: What is a radiation detector?
A1: Radiation Detector is an instrument used to detect or identify high-energy particles, such as those produced by nuclear decay, cosmic radiation, or reactions in a particle accelerator.
Q2: How does a personal radiation detector work?
A2: Personal radiation detectors are very sensitive, designed to detect changes in the gamma radiation level slightly above the background with a fast response time. Most PRDs provide a digital display of the exposure rate and a visual, auditory, or vibratory alarm at preset thresholds.
Q3: What should I look for in a radiation detector?
A3: The selection considerations for radiation detectors include: Type(s) of radiation for which exposure is expected (alpha, beta, gamma, neutron, X-rays, etc.) Desired functions – is the use to measure total radiation dosage over time (as with a dosimeter), or is a more detailed measurement needed?
Tips: Will this radiation detector device continue to consume power if it is not in use?
The radiation detection equipment supports automatic shutdown settings (such as 5 minutes, 10 minutes, 15 minutes), which can help you effectively save power so you don't have to constantly remember to turn it off.
