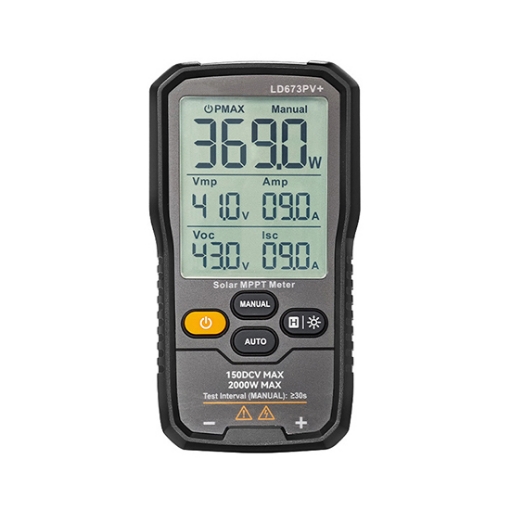

SISCO solar MPPT meter measures key parameters including maximum power, voltage, current, open-circuit voltage, and short-circuit current, helping technicians identify the Maximum Power Point (MPP) of a solar panel. Compatible with MC4 connections, it is well suited for solar installers, photovoltaic maintenance technicians, electrical contractors, and renewable energy professionals in the USA and other markets.

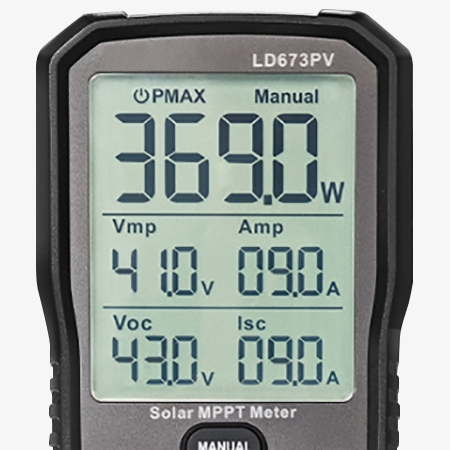

Multi-Parameter Display for Fast PV Fault Diagnosis
- Features a multi-parameter display that allows key solar panel measurements to be viewed on one screen for convenient monitoring.
- Displays multiple electrical parameters simultaneously, helping technicians quickly evaluate photovoltaic module performance.
- Provides a clear and intuitive interface for comparing voltage, current, and power readings during field testing.
- Enables fast identification of abnormal PV module conditions, reducing troubleshooting time and improving maintenance efficiency.
- Ideal for solar panel installation, commissioning, inspection, and troubleshooting in residential, commercial, and industrial photovoltaic systems.

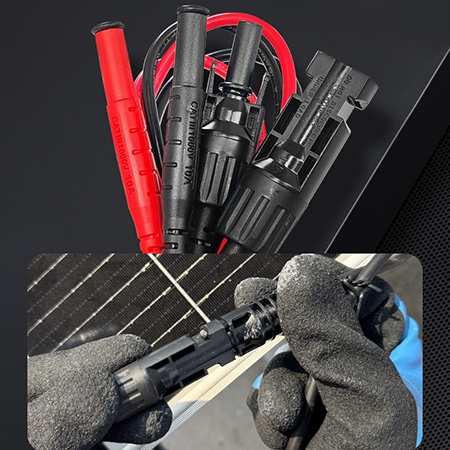

MC4 Test Leads for Convenient PV Testing
- Comes standard with MC4 test leads, allowing direct connection to solar panels equipped with standard MC4 connectors.
- Clearly marked positive (+) and negative (−) terminals help ensure correct polarity connections during measurement.
- The dedicated test leads provide a secure and reliable connection, reducing the risk of loose contacts during field testing.
- Plug-and-play design makes solar panel voltage, current, and power measurements faster and more convenient.
- Ideal for PV installation, solar panel inspection, commissioning, and maintenance applications.
Application
SISCO solar panel testers are used to evaluate the performance and efficiency of photovoltaic (PV) panels and solar systems. They are widely used in the solar energy, electrical, renewable energy industry and manufacturing. The are also applied in manufacturing and quality control, construction projects, and research institutions to evaluate panel performance, ensure system safety, and verify product quality.
Electrical
Renewable Energy Industry
Manufacturing
Solar Energy
| Model | SISCO-SPT-LD673PV | SISCO-SPT-LD673PV+ |
| Technical Specifications | ||
| Maximum Power | 1000 W | 2000 W |
| Maximum Voltage | 12–80 V | 12–150 V |
| Maximum Current | 35 A | 45 A |
| Open-Circuit Voltage | 12–80 V | 12–150 V |
| Short-Circuit Current | 35 A | 45 A |
| Display | 3.2-inch Large Screen | 3.2-inch Large Screen |
| Manual / Automatic Measurement | ✓ | ✓ |
| Buzzer Alert | ✓ | ✓ |
| Backlight | ✓ | ✓ |
| Auto Power-Off | ✓ | ✓ |
| Low Battery Indicator | ✓ | ✓ |
| Data Hold | ✓ | ✓ |
| Reverse Input Protection | ✓ | ✓ |
| Power Supply | AAA 1.5V × 3 | AAA 1.5V × 3 |
| Product Dimensions | 143 × 76 × 32 mm | 143 × 76 × 32 mm |
| Product Weight | 390 g | 460 g |
| Certifications | CE / EMC / RoHS | CE / EMC / RoHS |
| Standard Accessories | ||
| MC4 Test Leads | Dedicated MC4 test leads | |
| Batteries | 2.7 V batteries × 3 | |
| User Manual | Included | |
| Carrying Case | Included | |
| Probe Tools | 2 sets | |
| Test Clip | 1 set | |
Q1: What is a solar panel tester?
A1: A solar panel tester is a device used to evaluate the performance and functionality of solar panels. It measures various parameters to indicate the health and efficiency of the solar panel to ensure that it is working properly and providing the expected power output. The solar panel tester is an essential tool for solar panel installers, maintenance technicians and those involved in the solar industry.
Q2: How to use a solar panel tester?
A2: To use a solar panel tester, follow these steps:
- Safety First: Ensure you’re wearing appropriate safety gear and that the solar panel system is de-energized if necessary.
- Connect the Tester: Attach the test leads of the solar panel tester to the positive and negative terminals of the solar panel.
- Set the Tester: Choose the appropriate settings on the tester, such as voltage, current, or power measurements.
- Take Readings: Read the measurements displayed on the tester. Compare these readings with the manufacturer’s specifications or performance expectations.
- Analyze Results: Use the results to assess the efficiency of the solar panel and identify any issues that may need attention.
- Disconnect and Record: Once testing is complete, disconnect the tester and record your findings for future reference.
Q3: Can a solar panel tester detect all types of problems?
A3: A solar panel tester can identify issues related to voltage, current, and power output but might not detect all types of problems, such as internal panel damage. For comprehensive diagnostics, additional testing or professional inspection might be needed.
Tips: What is a solar MPPT meter?
