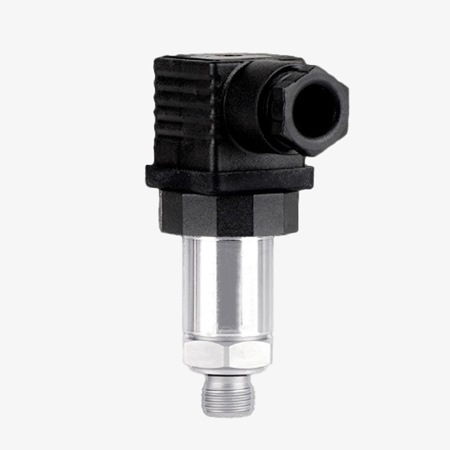

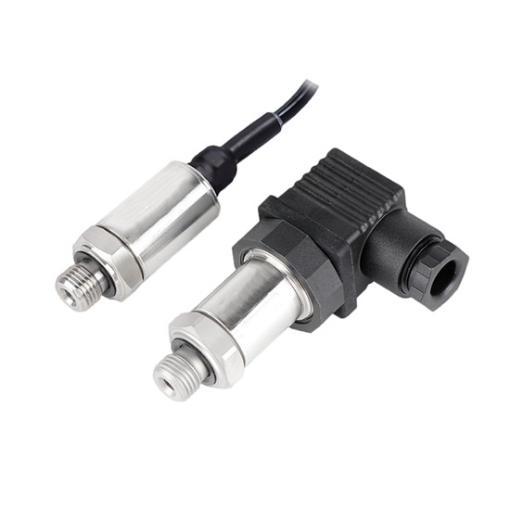

The ultra high pressure sensor measures gauge pressure from 0 to 600 bar and provides a 4–20 mA signal for easy integration with compatible control systems. Its operates on 9–30 VDC and features IP65 protection, a 300%FS overpressure rating, and a 500%FS burst pressure rating for demanding high-pressure applications.
- High-Temperature Glass Micro-Melt Technology: Ultra high pressure sensor adopts glass micro-melt technology capable of withstanding high temperatures above 500℃.
- Wide Temperature Adaptability: Suitable for extreme low and high temperature environments from -40℃ to 125℃. All internal components are temperature-resistant, with wide-range temperature compensation for stable output under variable temperature conditions.
- High Ingress Protection: IP65 protection grade with Hirschmann connector. Dust-proof and splash-proof design, ideal for measuring water pressure, air pressure, oil pressure, and hydraulic pressure.
- Reliable EMC Circuit Protection: The ultra high pressure sensor has a built-in EMC protection circuit. Supports short-circuit & reverse polarity protection, lightning surge protection, RF resistance, and electromagnetic interference suppression.

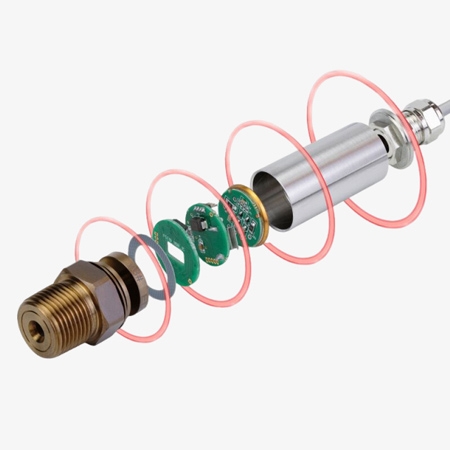

- Digital Circuit Board with Strong Anti-Interference Capability: Built with a digital circuit board for stable signal processing and strong interference immunity. It effectively suppresses electromagnetic noise and ensures reliable pressure signal output even in complex industrial environments.
- Shock & Surge Resistant Damping Design: Adopts stamping damping structure. Withstands instantaneous pressure impact and prevents damage caused by sudden overload.
Applications
This ultra high pressure sensor with a high-sensitivity sensing core is compatible with four media, including water, air, oil, and hydraulic fluid. It is widely deployed in hydraulic & pneumatic systems, coal mining machinery, pressure machines, gas dispensers, constant-pressure water supply, water treatment, and water pump supporting systems to deliver stable and accurate pressure monitoring for diverse industrial measurement projects.
Air Pressure
Oil Pressure
Hydraulic Pressure
Water Pressure
| Model | SISCO-PS-BRW800-2000 |
| Pressure Type | Gauge Pressure |
| Pressure Range | 0 ~ 6 ~ 600 bar |
| Accuracy | ±0.5%FS |
| Output Signal | 4~20mA |
| Supply Voltage | 9~30 VDC |
| Long-term Stability | ≤0.2%FS/year |
| Temperature Compensation Range | -10 ~ +70℃ |
| Operating Temperature | -20 ~ +85℃ |
| Overpressure | 300%FS |
| Burst Pressure | 500%FS |
| Storage Temperature | -40 ~ +125℃ |
| Protection Class | IP65 |
| Pressure Connection | M20×1.5, G1/4 |
| Electrical Connection | Hirschmann connector (customizable options available) |

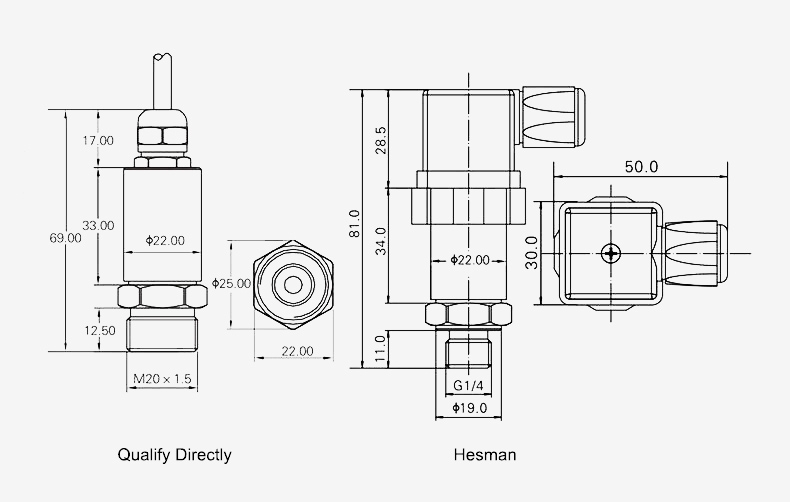

Dimensions (unit: mm)

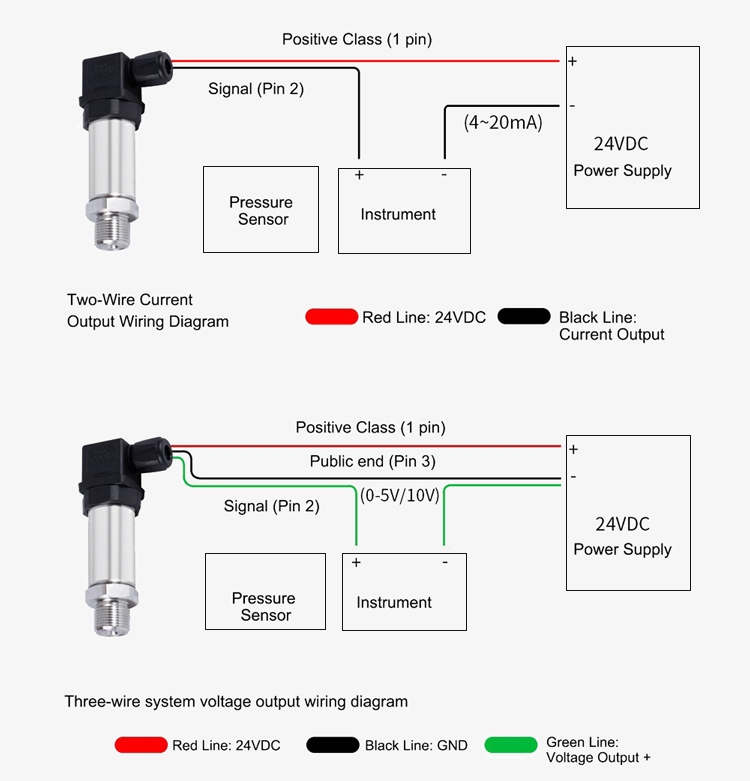

Wiring Diagram
Q1: What type of pressure does this ultra high pressure sensor measure?
A1: This ultra high pressure sensor measures gauge pressure, which is pressure relative to the surrounding atmospheric pressure. It is suitable for applications that require gauge pressure monitoring rather than absolute pressure measurement.
Q2: Can this ultra high pressure sensor connect to a PLC?
A2: Yes, this ultra high pressure sensor can connect to a compatible PLC through its 4–20 mA analog output. It operates on a 9–30 VDC power supply and transmits pressure readings to the PLC for real-time monitoring and industrial process control.
Q3: What is the operating temperature range of this ultra high pressure sensor?
A3: The sensor's operating temperature range is -20°C to +85°C. Its temperature compensation range is -10°C to +70°C, within which temperature-related measurement effects are compensated according to the manufacturer's specifications.
Tips: What is the long-term stability of this pressure sensor?
This ultra high pressure sensor has a specified long-term stability of ≤0.2%FS per year. This means its output drift is limited to the stated percentage of full scale per year under specified conditions.
