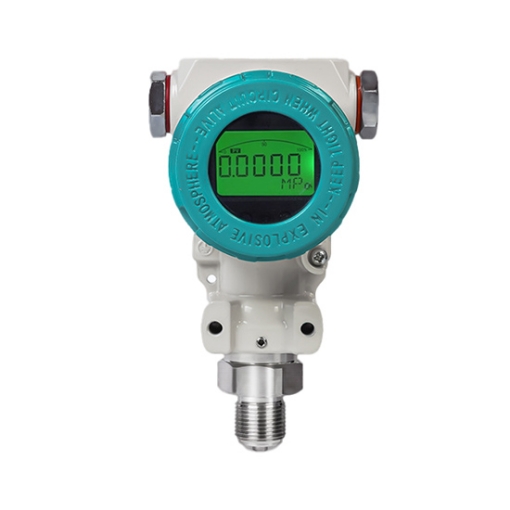

Smart pressure sensor is designed for industrial pressure measurement, with a 10–1200 Hz response frequency and selectable accuracy of ±0.5%FS or ±0.2%FS. Supporting standard media temperatures from -20°C to 80°C, it is suitable for compatible pressure monitoring and process control systems.
- High-Quality Diffused Silicon Sensor Chip: The smart pressure sensor uses a diffused silicon sensing chip for fast response, stable performance, and reliable pressure measurement.

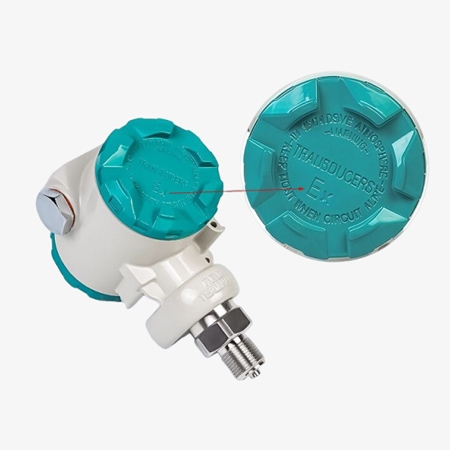

- Explosion-Proof Cast Aluminum Housing: Features a durable cast aluminum enclosure designed for hazardous environments, with an Ex db IIC T6 Gb rating to support safe operation in compatible explosive gas atmospheres.

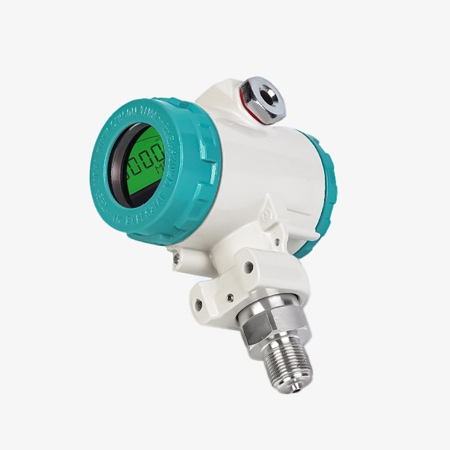

- Integrated Digital Display: Displays real-time pressure readings locally, making on-site monitoring, equipment inspection, and system commissioning more convenient.
- Multiple Pressure Measurement Types: This smart pressure sensor supports gauge, absolute, and sealed pressure measurement to meet different industrial monitoring requirements.
Applications
This smart pressure sensor is widely used in the petroleum, chemical, metallurgy, power, and environmental protection industries for accurate measurement of gauge pressure and absolute pressure of corrosive gas, liquid, and steam.

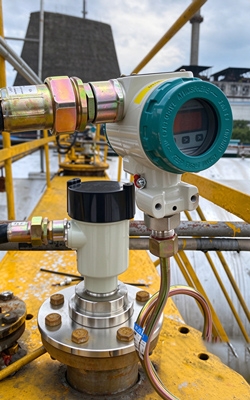

Construction Machinery

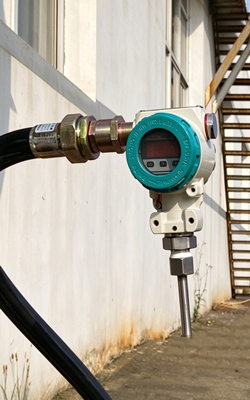

Water Supply

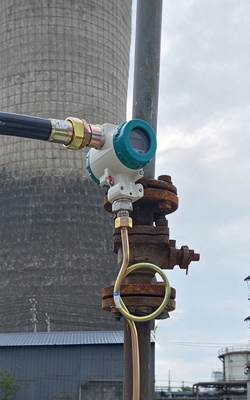

Gas Monitoring

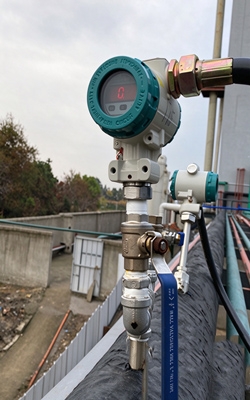

Water Treatment
| Model | SISCO-PS-YAY001 |
| Suitable Media | Water, oil, gas, liquid |
| Media Temperature | Standard: -20℃ ~ 80℃ |
| Output Signal | 4-20mA (HART optional), 0-5V |
| Temperature Drift | ±0.5%FS, ±0.2%FS |
| Power Supply | 24V DC |
| Response Frequency | 10~1200 Hz |
| Accuracy Class | ±0.5%FS, ±0.2%FS |
| Housing Material | Cast Aluminum Alloy |
| Measuring Range | -100kPa ~ +100kPa, 0~60MPa (Customizable range) |
| Pressure Type | Absolute Pressure, Gauge Pressure, Sealed Pressure |
| Explosion-proof Rating | Ex d IIC T6 Gb |

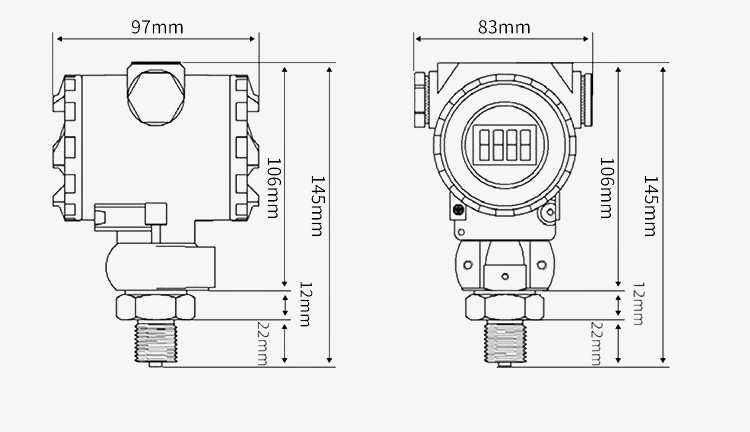

Dimensions (unit: mm)

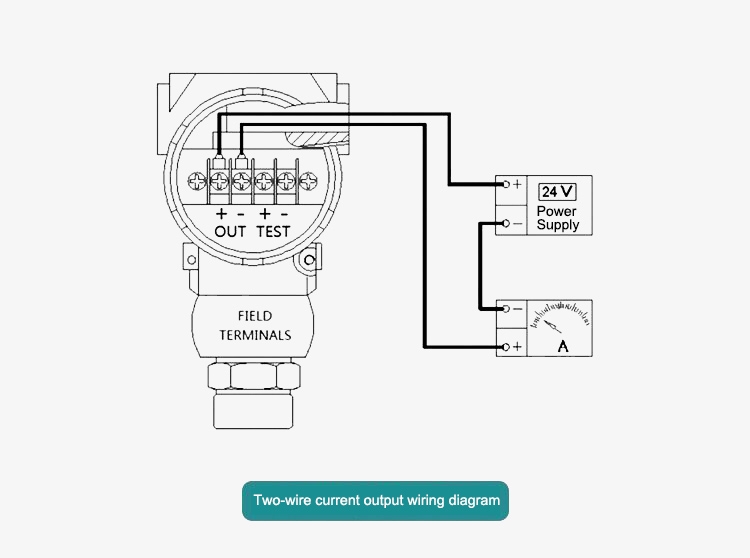

Wiring Diagram
Q1: Does this smart pressure sensor support HART communication?
A1: Yes. HART communication is available as an option for the 4–20 mA output version. It allows compatible devices to exchange digital information over the analog current loop. Confirm the HART option and compatibility with your control system before purchase.
Q2: Is this smart pressure sensor suitable for hydraulic systems?
A2: Yes, it can be considered for hydraulic pressure monitoring when the selected measuring range, pressure type, output signal, and overpressure capability match the system requirements. For hydraulic circuits with pressure surges, check the allowable overpressure and transient pressure limits before installation.
Q3: What is the operating temperature range of this smart pressure sensor?
A3: The smart pressure sensor standard media temperature range is -20°C to 80°C. Ensure that the actual process temperature remains within this range to support reliable operation and measurement performance.
Tips: How do I select the right accuracy for my pressure measurement application?
Choose the accuracy based on your measurement requirements. This smart pressure sensor offers ±0.2%FS and ±0.5%FS accuracy options. The ±0.2%FS version is suitable for applications requiring higher measurement precision, while ±0.5%FS is often sufficient for general industrial pressure monitoring. Consider the measuring range and the manufacturer's accuracy specifications when selecting a model.
