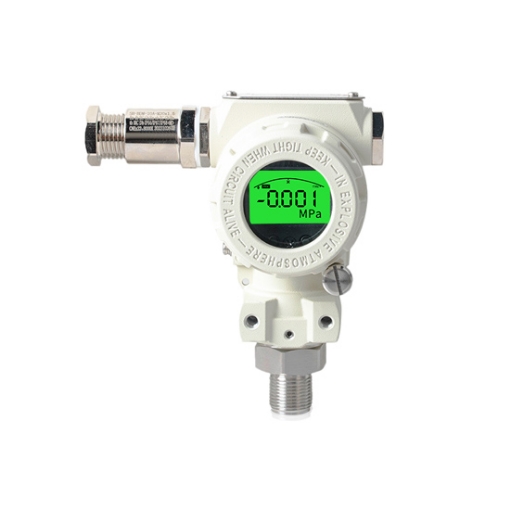

SISCO pressure transducer with digital display provides clear pressure readings for industrial monitoring and control applications. It supports gauge, absolute, and sealed pressure measurement, with accuracy options of 0.2, 0.25, and 0.5. With a rated power of 3 W and an explosion-proof design, it is suitable for pressure monitoring in industrial equipment and demanding operating environments.
- High-Definition LCD Digital Display: This pressure transducer with digital display comes with a clear green backlit LCD screen. It shows real-time pressure readings directly, enabling fast, intuitive on-site observation and pressure monitoring.
- Explosion-Proof Aluminum Alloy Housing: Built with a heavy-duty explosion-proof aluminum alloy shell, this digital pressure transducer works reliably in explosive, flammable and hazardous industrial environments.

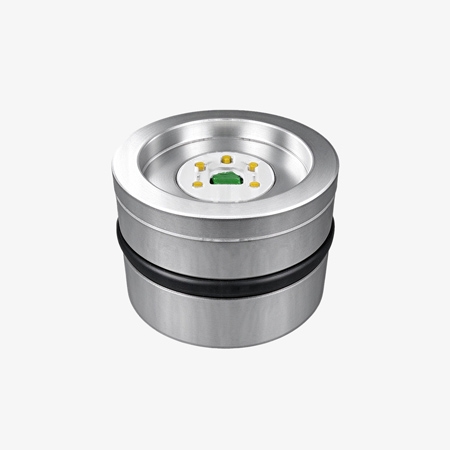

- High-Performance Diffused Silicon Piezoresistive Sensor: Fitted with a premium diffused silicon piezoresistive sensing core, the digital pressure transmitter provides highly stable, precise pressure measurement for long-term industrial use.
- Insulated Material Connector: The insulated interface connector of this pressure transducer effectively isolates dust and moisture, offering reliable sealing and better environmental adaptability.
- Grounding Screw for Anti-Interference: A built-in grounding screw reduces signal interference, protects the circuit, and greatly boosts the durability and operational stability of the digital pressure transducer.
Applications
This pressure transducer is suitable for special working conditions, including plants with explosive gas atmospheres. It is widely adopted for process control, petroleum, chemical, electric power, metallurgy, and the food industry, delivering reliable pressure monitoring and measurement in diverse industrial environments.

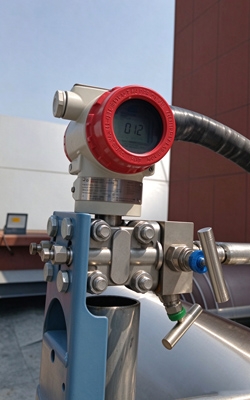

Petroleum

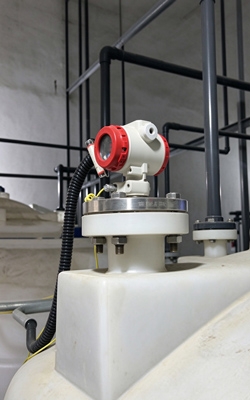

Chemical Industry

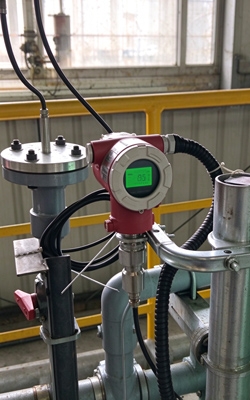

Power Industry

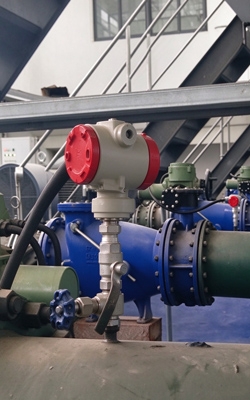

Process Control System
| Model | SISCO-PS-MIK |
| Measured Pressure Type | Gauge pressure, Absolute pressure, Sealed pressure |
| Measuring Range | -100kPa ~ 0…10kPa ~ 60MPa |
| Transmitter Output & Load Resistance RL | 4~20mA (No display); RL ≤ (U-9V)/0.02A |
| 4~20mA (With display); RL ≤ (U-13V)/0.02A | |
| 0~5 | |
| 1~5V; RL ≥ 5kΩ | |
| 0~10V | |
| Note: U = Supply Voltage (V) | |
| Communication Output | RS485 interface, Modbus protocol |
| Supply Voltage | 4~20mA (No display): 9~32V |
| 4~20mA (With display): 12~32V | |
| 4~20mA + RS485 (With display): 10~32V | |
| Rated Power | 3W |
| Electrical Connection | M20×1.5 Cable Gland |
| Accuracy Class | 0.2 / 0.25 / 0.5 |
| Long-term Stability | ±0.2%FS / year |
| Response Time | Current & Voltage output: T90 ≤ 10ms |
| RS485 output: T90 ≤ 100ms | |
| Thermal Drift | 10kPa ≤ Range ≤ 60kPa: 2%FS (Within temperature compensation range) |
| 60kPa ＜ Range ≤ 60MPa: 1.5%FS (Within temperature compensation range) | |
| Compensated Temperature | 10kPa ≤ Range ＜ 25kPa: (0~60)°C |
| 25kPa ≤ Range ≤ 60kPa: (0~70)°C | |
| 60kPa ＜ Range ≤ 60MPa: (-10~70)°C | |
| Insulation Resistance | 20MΩ, 250VDC |
| Protection Grade | IP65 |
| Explosion-proof Grade | ExdbⅡCT6 |
| Overpressure Capacity | (0.035~10)MPa: 150%FS |
| (10~60)MPa: 125%FS | |
| Medium Temperature | (-20~85)°C |
| Ambient Temperature | (-20~40)°C |
| Relative Humidity | ≤95% |

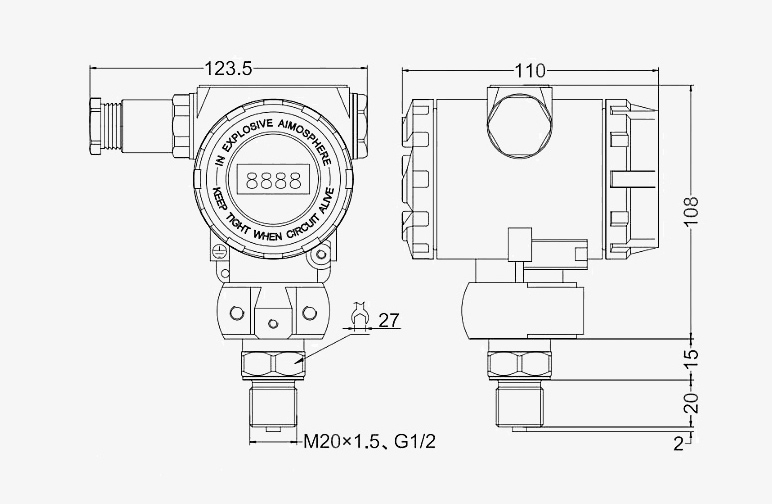

Dimensions (unit: mm)

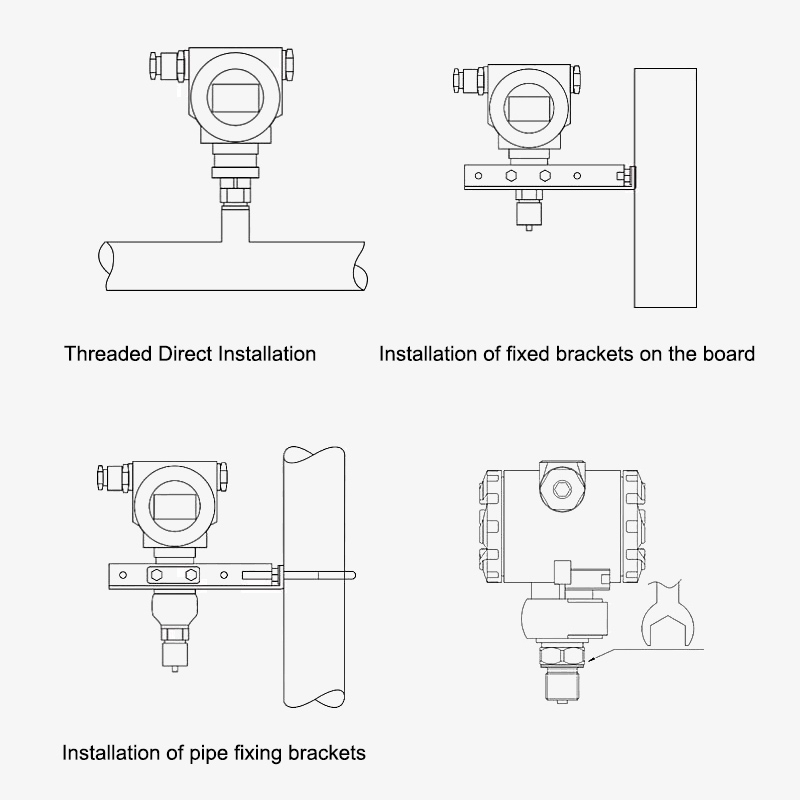

Installation
Q1: What types of pressure can this digital pressure transducer measure?
A1: This digital pressure transducer measures gauge pressure, absolute pressure, and sealed pressure. Gauge pressure is measured relative to atmospheric pressure, absolute pressure is measured relative to a perfect vacuum, and sealed pressure is referenced to a sealed reference pressure.
Q2: Which industries use pressure transducers with digital displays?
A2: Pressure transducers with digital displays are widely used in the petroleum, chemical processing, electric power, metallurgy, and food processing industries. They provide real-time pressure readings for equipment monitoring, process control, and industrial automation, helping operators monitor system pressure and maintain stable operating conditions.
Q3: What is the protection rating of this digital pressure transducer?
A3: This digital pressure transducer has an IP65 protection rating, protecting against dust ingress and water jets from any direction under specified test conditions. It is suitable for many industrial environments but is not designed for continuous water immersion.
Tips: Is this pressure transducer suitable for hazardous industrial areas?
Yes, this pressure transducer is designed for compatible hazardous industrial areas and has an Ex db IIC T6 explosion-proof rating. It is suitable for applicable explosive gas environments, including certain petroleum and chemical processing applications. Before installation, verify the product's explosion-proof certification and ensure it meets the site's hazardous-area classification and local safety requirements.
