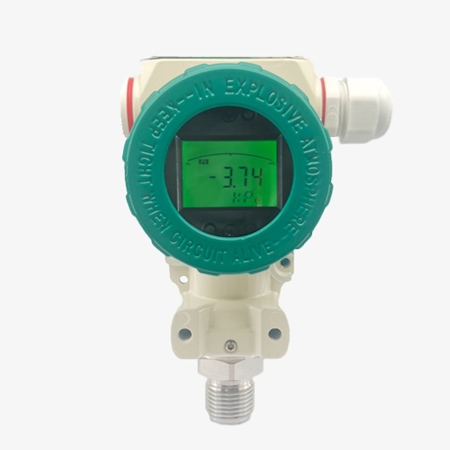

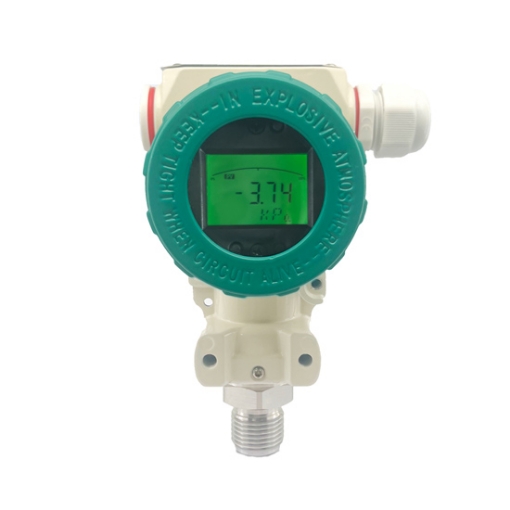

Digital pressure transmitter combines precise sensing with convenient system integration for industrial pressure monitoring. It supports 4-20 mA and RS485 output signals, allowing connection to compatible PLCs, monitoring instruments, and data acquisition systems. A low-power LCD enables clear on-site pressure readings.

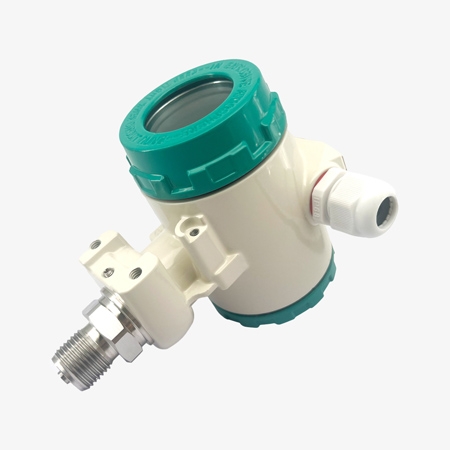

- High-Sealing 2088 Cast Aluminum Housing: The digital pressure transmitter features a durable 2088 cast aluminum housing with a dual-chamber design for enhanced sealing performance. It helps protect internal components against moisture and harsh industrial conditions, supporting stable, long-term pressure monitoring in demanding environments.
- Ultra-Fast Response Time: With a response time of ≤2 ms, this digital pressure sensor quickly detects pressure changes and delivers rapid signal feedback. It is suitable for dynamic pressure monitoring, industrial process control, and applications that require fast pressure response.
- High-Precision Diffused Silicon Sensor Core: Equipped with a high-performance diffused silicon pressure sensor, the digital pressure transducer provides stable, repeatable pressure measurements for compatible gas and liquid media. Its sensing technology supports precise pressure monitoring in industrial automation and process measurement systems.
- Low-Power LCD Display for On-Site Monitoring: The integrated low-power LCD provides clear, real-time pressure readings directly at the installation site. It simplifies on-site monitoring and parameter adjustment, helping users check pressure values and perform routine calibration more conveniently.
Applications
This digital pressure transmitter is widely used for pressure monitoring and measurement across multiple industrial sectors, including the petroleum & chemical industry, power and marine shipping, food & pharmaceutical production, as well as paper-making and textile processing. It delivers reliable and precise pressure data to support stable operation of process systems in these fields.
Marine Industry
Pharmaceutical Industry
Textile Industry
Petrochemical Industry
| Model | SISCO-PS-YF-P101 |
| Measuring Range | Optional range from 0 ~ 60MPa |
| Overload Pressure | 2 x rated pressure |
| Pressure Type | Gauge pressure or Absolute pressure |
| Wetted Media | Gas or liquid compatible with 316L stainless steel |
| Accuracy | ±0.5%FS (default); ±0.25%FS; ±0.15%FS |
| Long-term Stability | ≤ ±0.2%FS / year |
| Operating Temperature | -40℃ ~ 100℃ |
| Zero Temperature Coefficient | Typical: ±0.02%FS/℃; Max: ±0.05%FS/℃ |
| Span Temperature Coefficient | Typical: ±0.02%FS/℃; Max: ±0.05%FS/℃ |
| Power Supply | 9~32VDC, typical 24VDC |
| Output Signal | 4-20mA / RS485, customized available |
| Load Resistance | ≤ [(U-6.5V)/0.02A] Ω |
| Shock Resistance | 100g, half-sine 11ms, continuous |
| Vibration Resistance | ≤ ±0.01%FS (X, Y, Z axis, 200Hz/g) |
| Insulation Resistance | >100MΩ @ 500VDC excitation |
| Response Time | ≤ 2ms |
| Weight | Approx. 500g (excluding cable) |
| Resolution | Theoretically infinite; Typically 1/100000 |
| Pressure Connection | G1/4; G1/2; M20*1.5 |
| Electrical Connection | Cable type |
| Ingress Protection | Connector type IP65; Cable type IP67; Waterproof type IP68 |
| EMC Compliance | EN50081-1; EN50082-2; IEC61000-4-3 |

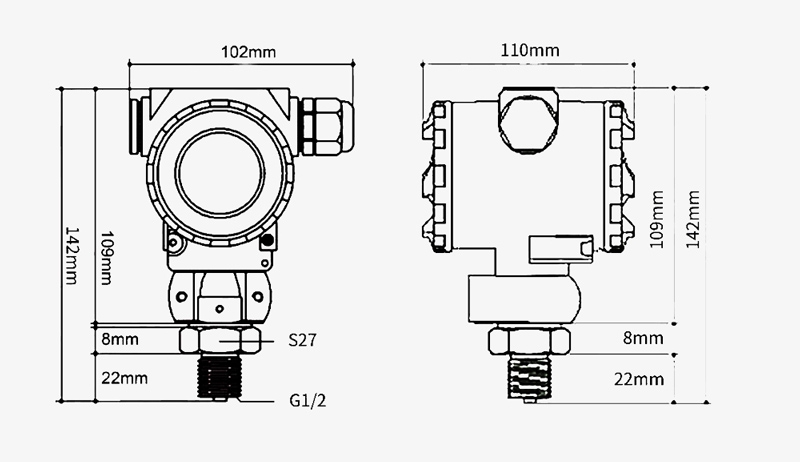

Dimensions (unit: mm)

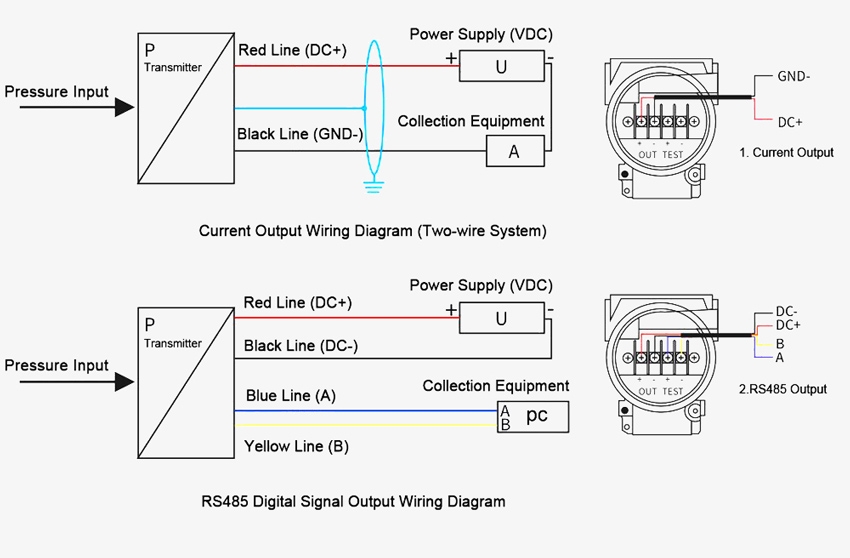

Wiring Diagram
Q1: Can a digital pressure transmitter measure high-pressure applications?
A1: Yes. The digital pressure transmitter supports optional measuring ranges from 0 to 60 MPa, making it suitable for many high-pressure industrial applications. With an overload pressure rating of 2 times the rated pressure, it provides reliable pressure monitoring for compatible gas and liquid media.
Q2: How does a digital pressure transmitter work?
A2: A digital pressure transmitter detects pressure through a sensing element, such as a diffused silicon sensor, and converts the resulting signal into a usable electrical output. The output can be transmitted to compatible monitoring equipment or control systems for pressure display, data recording, and process control.
Q3: What output signals does the digital pressure transmitter support?
A3: The digital pressure transmitter supports 4–20 mA analog output and RS485 digital output. The 4–20 mA interface is widely used in industrial control systems, while RS485 supports digital communication with compatible equipment. Verify the specific communication protocol and interface requirements before integration.
Tips: What causes unstable readings from a digital pressure transmitter?
Unstable readings can result from actual pressure fluctuations, electrical interference, an unsuitable power supply, loose wiring, vibration, temperature changes, or incorrect configuration. Check the process conditions and electrical connections first, then compare the transmitter output with a calibrated reference instrument to help identify the source of the problem.
