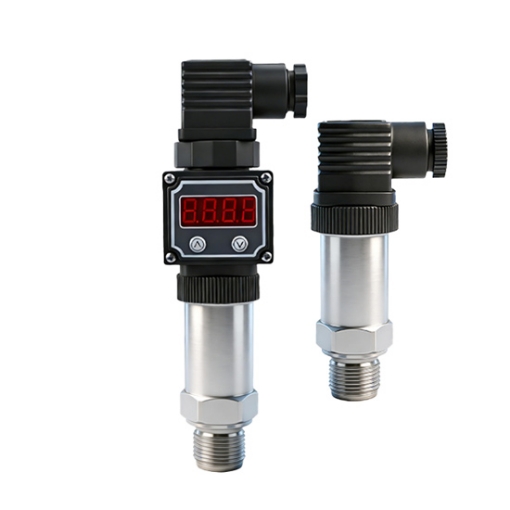

SISCO high accuracy pressure sensor supports RS485, 0–5 V, 0–10 V, and 4–20 mA outputs for flexible system integration. Operating from -20°C to 80°C, it is suitable for various industrial environments. Compatible with fluids suitable for 316L stainless steel.

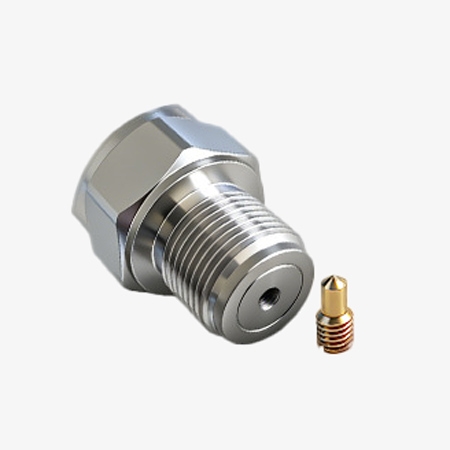

- Damping Buffer Structure, 304 Stainless Steel Housing: Built with premium damping buffer technology, this high accuracy pressure sensor effectively absorbs pressure pulsation and mechanical shock. The robust 304 stainless steel body prevents overload damage, delivering stable, precise pressure readings for industrial pressure measurement.

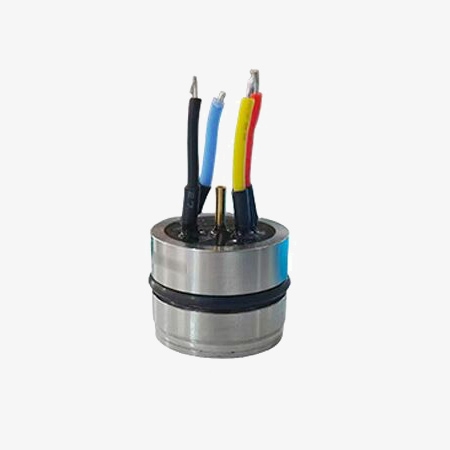

- High Precision Diffused Silicon Sensing Core: Equipped with an industrial-grade diffused silicon pressure chip, this diffused silicon pressure sensor features excellent long-term stability and outstanding durability, ideal for accurate gas and liquid pressure monitoring.
- 4-Digit LED Digital Display: This high accuracy pressure sensor comes with a clear LED digital screen for direct, instant pressure value visualization. Easy on-site reading without extra display instruments.
- Strong Anti-Interference Capability: Excellent anti-vibration and anti-shock performance, with built-in protection against RF interference. Reliable operation for complex and harsh industrial working conditions.
Applications
High accuracy pressure sensor can be widely used in various fields of hydraulic and pneumatic control systems such as urban water supply and drainage, sewage treatment, and river and reservoir systems.

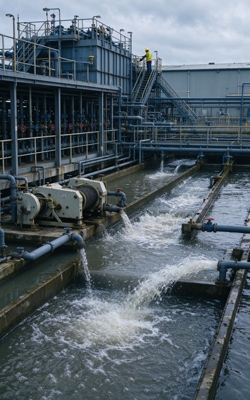

Wastewater Treatment

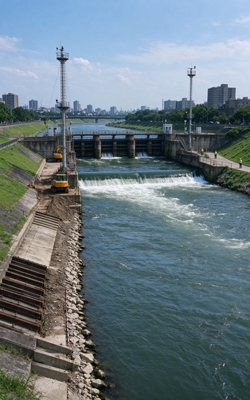

River System
Reservoir System

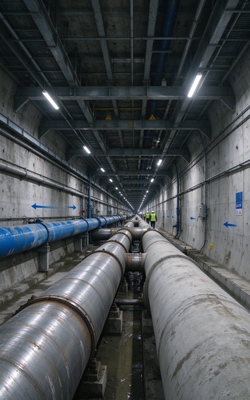

Urban Water Supply System
| Model | SISCO-PS-JRPr2024 |
| Measuring Range | -100~4kPa ~ 100MPa (customizable within the range) |
| Pressure Type | Gauge pressure (default), Absolute pressure, Sealed pressure |
| Output Signal | RS485, 0-5V, 0-10V, 4-20mA |
| Power Supply | 2~24VDC (default) |
| Accuracy Class | 0.5%FS (default), 0.2%FS, 0.1%FS |
| Compensated Temperature | -10~70°C |
| Operating Temperature | -20~80°C |
| Zero Thermal Drift | Max. 0.5%FS |
| Sensitivity Thermal Drift | Max. 0.5%FS |
| Overpressure | 2 times for range below 10MPa; 1.5 times for range above 25MPa |
| Mechanical Vibration | 20G (20-5000Hz) |
| Sampling Rate | 2400 times per second |
| Long-term Stability | <0.2%FS/year |
| Insulation Resistance | 100MΩ / 250VDC |
| Protection Grade | IP65 |
| Response Time | 2ms |
| Media Compatibility | Compatible with all fluids suitable for 316L stainless steel |
| Mounting Thread | M20×1.5 (customizable upon request) |

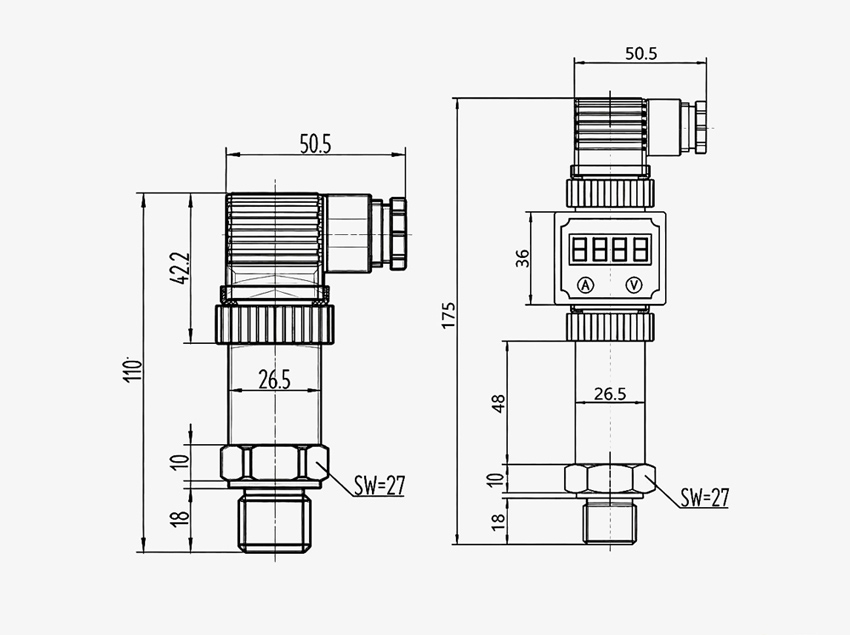

Dimensions (unit: mm)

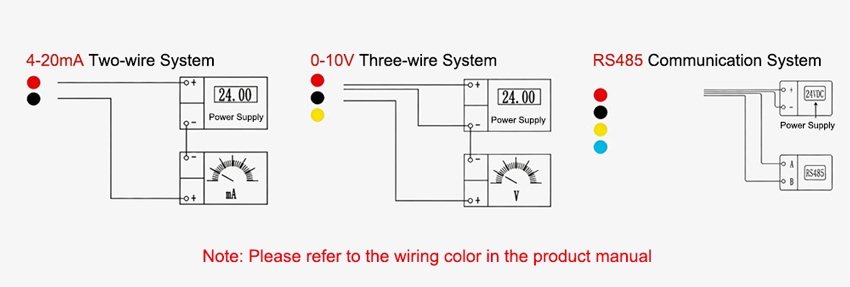

Wiring Diagram
Q1: Can this high accuracy pressure sensor monitor pressure in rivers and reservoirs?
A1: Yes, it can be used for river and reservoir pressure monitoring if the selected model meets the required pressure range, media compatibility, and environmental protection requirements. For continuous water-level monitoring, confirm that the sensor is suitable for submersion and prolonged outdoor exposure before installation.
Q2: What output signals are available for this high accuracy pressure sensor?
A2: This high accuracy pressure sensor offers four output options: RS485, 0–5 V, 0–10 V, and 4–20 mA. These outputs support integration with compatible PLCs, industrial controllers, and data acquisition systems. Choose the appropriate signal based on your system requirements and monitoring equipment.
Q3: What is the operating temperature range of this high accuracy pressure sensor?
A3: The high accuracy pressure sensor operates in temperatures ranging from -20°C to 80°C, making it suitable for various industrial pressure monitoring applications. Ensure the operating conditions remain within this range for reliable performance.
Tips: How do I choose the right high accuracy pressure sensor for my application?
Start by identifying the normal and maximum operating pressure, required measurement accuracy, pressure type, output signal, supply voltage, operating temperature, and fluid compatibility.
Also check the process connection and installation environment to ensure the sensor meets your system requirements.
