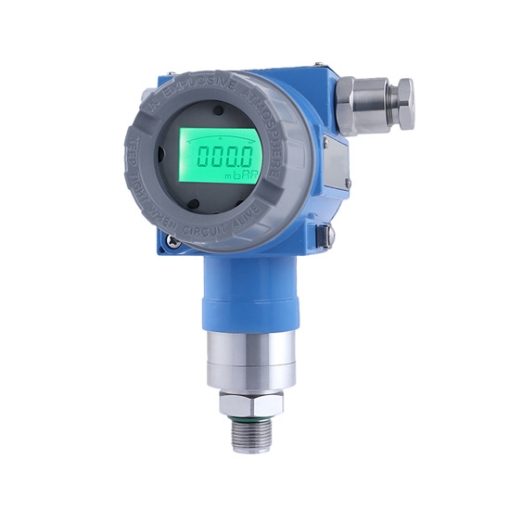

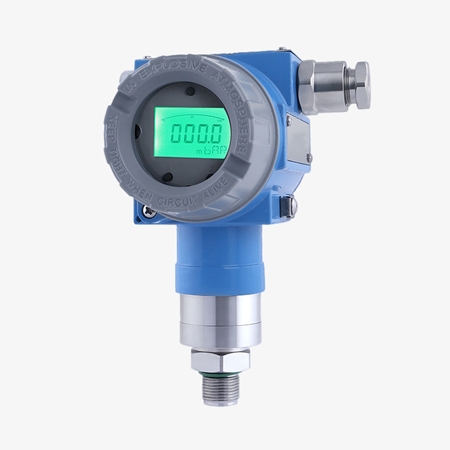

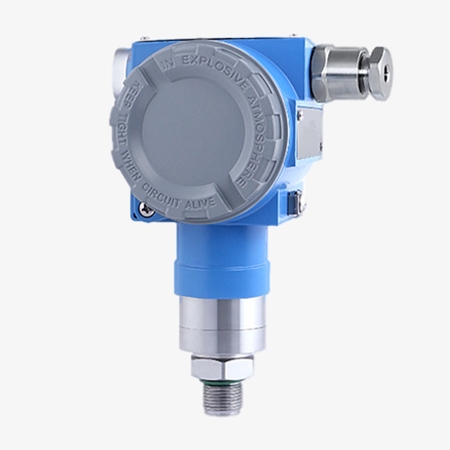

Ceramic capacitive pressure sensor delivers reliable pressure measurement with 0.1% or 0.25% FS accuracy. It supports a pressure range of -0.1 to 7 MPa, measures liquids or gases, and offers multiple output options, including 4-20mA, HART, RS485, and voltage signals. With IP66 protection and excellent long-term stability, it is suitable for a wide range of industrial pressure monitoring applications.
- Ceramic Capacitive Sensing Core: Uses a ceramic capacitive pressure sensing element for reliable pressure measurement and stable performance.
- Integrated Chip Design: Features an integrated chip and wide-range power supply for convenient integration into various pressure measurement systems.
- Strong Anti-Interference Protection: Incorporates frequency cutoff design, electromagnetic interference resistance, and lightning protection for reliable operation in demanding environments.
- Multiple Electrical Protections: Includes current limiting, voltage limiting, and reverse polarity protection to improve electrical safety and operational reliability.
- High Precision and Pressure Resistance: Delivers high-precision pressure measurement with excellent resistance to high pressure and vacuum conditions, suitable for a wide range of industrial applications.
Applications
Our ceramic capacitive pressure sensor provides stable and accurate pressure measurement across a wide range of industrial applications. It is suitable for hydraulic systems in machine tools, die-casting machines, and injection molding machines; industrial gas systems, including cryogenic storage tanks, gas supply networks, and fire protection systems; and general industrial equipment such as blowers, packaging machines, and air compressors. It also supports HVAC applications in ventilation, heating, solar energy, and heat station systems, as well as water and wastewater applications, including constant-pressure water supply, sewage treatment, and water level and oil level monitoring.
Industrial Gas
Industrial Equipment

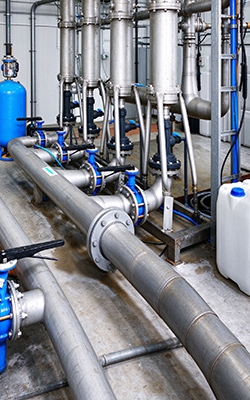

Water And Wastewater
Hydraulic System
| Model | SISCO-PS-CYYZ501C |
| Measurement medium | liquid or gas (compatible with contact materials) |
| Pressure range | -0.1~0~7MPa |
| Pressure methods | gauge pressure, absolute pressure, negative pressure |
| Medium temperature | -40~85 ℃ |
| Output | 4-20mA, 4-20mA Hart, RS485, 0-10VDC, 0-5VDC, 1-5VDC |
| Power supply | 9-28VDC, 15-28VDC, 13-28VDC, 15-24VDC |
| Connection time | 20ms |
| Stability performance | ± 0.1% FS/year |
| Temperature drift | ± 0.01% FS/℃ (within temperature compensation range) ± 0.05% FS/℃ (outside temperature compensation range) |
| Temperature compensation | -20~80 ℃ |
| Explosion proof type | Ex db Ⅱ C T6 Gb |
| Explosion proof dust type Ex tb IIIC T80 ℃ Db | |
| Intrinsically safe Ex ia IIC T6 Ga (limited to 4-20mA/4-20mA Hart output only) | |
| Dust Intrinsically Safe Ex iaD 20 T80 ℃ (limited to 4-20mA/4-20mA Hart output only) | |
| Note: Intrinsic safety must be powered by safety barriers or intrinsic safety power sources | |
| Protection level | IP66 |
| Note: The above protection levels refer to the level achieved after the electrical connection is complete | |
| Accuracy level | 0.1% FS, 0.25% FS |
| Meter accuracy | 0.05% FS liquid crystal (LCD with backlight) display |
| Response frequency | Analog signal output ≤ 30Hz Digital signal output ≤ 5Hz Hart communication ≤ 10Hz |
| Overall weight | No display ≈ 1.25kg, with display ≈ 1.4kg |
| Resolution | Analog output 0.01% FS, digital output 0.05% FS |

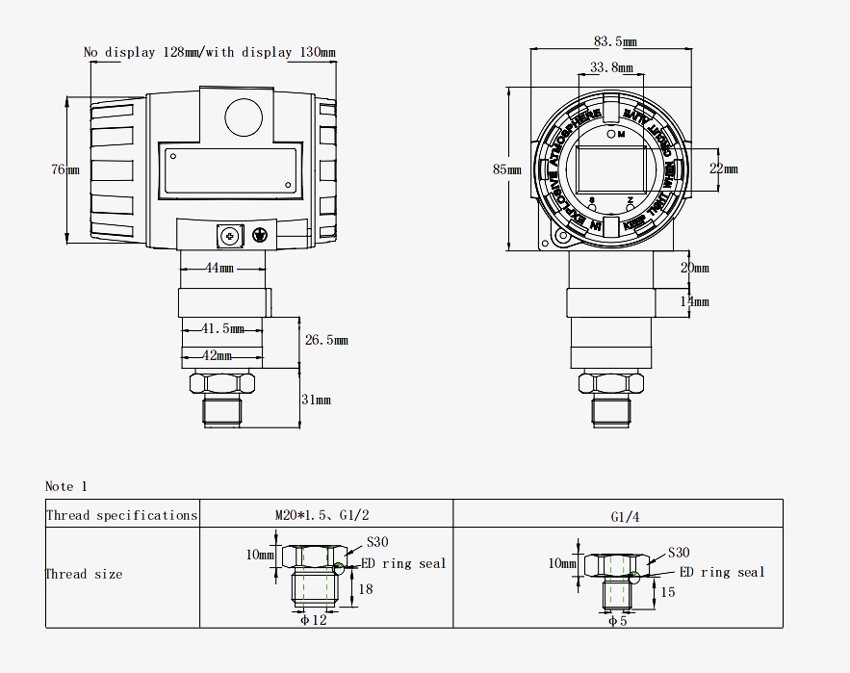

Dimensions (unit: mm)

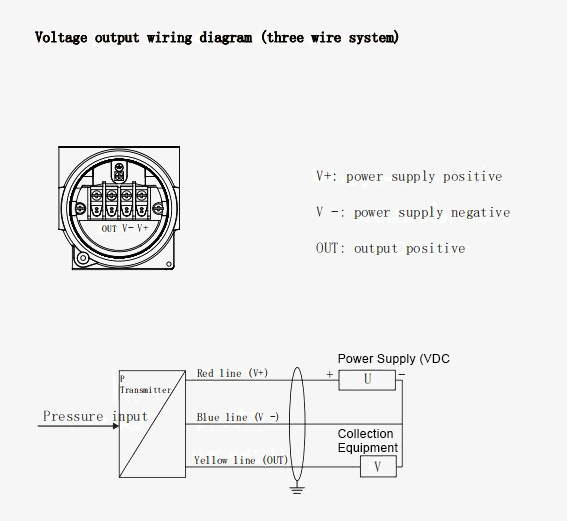

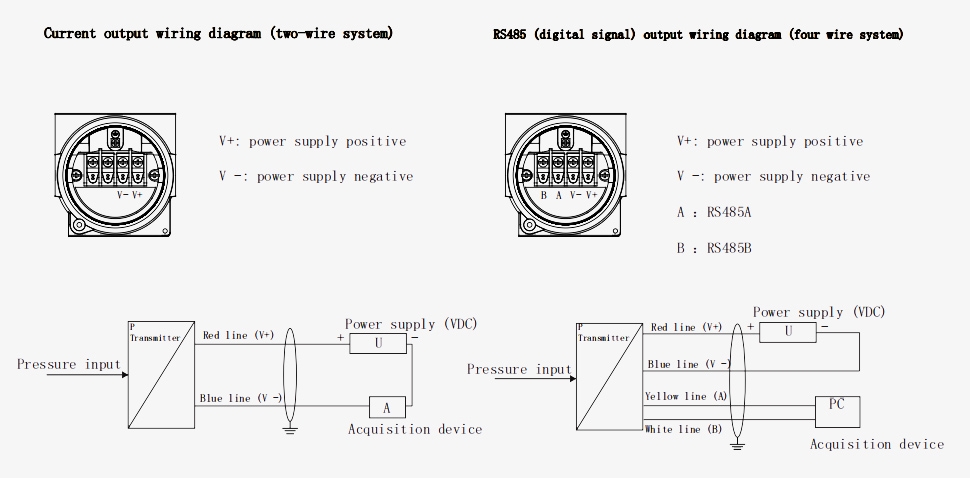

Wiring Diagram
Q1: Can this pressure sensor be used in an air compressor system?
A1: Yes. This ceramic capacitive pressure sensor can be used in air compressor systems to monitor compressed air pressure for industrial control and equipment operation.
Q2: What is the maximum pressure a ceramic capacitive pressure sensor can measure?
A2: The ceramic capacitive pressure sensor can measure pressures up to 7 MPa, depending on the selected model and pressure range configuration. For applications requiring negative pressure measurement, ranges down to -0.1 MPa are also available. Refer to the pressure range selection table to choose the appropriate model for your operating conditions.
Q3: Is a ceramic capacitive pressure sensor suitable for high-temperature applications?
A3: Yes, within its specified temperature limits. This ceramic capacitive pressure sensor supports medium temperatures from -40°C to 85°C, with a temperature compensation range of -20°C to 80°C. For high-temperature applications, ensure the process temperature remains within the rated range and consider the effects of temperature drift on measurement accuracy. For temperatures above 85°C, select a pressure sensor specifically rated for higher-temperature operation.
Tips: What factors affect pressure sensor measurement accuracy?
Several factors can affect pressure sensor measurement accuracy, including temperature fluctuations, pressure range selection, long-term drift, installation conditions, power supply stability, and signal interference. To maintain reliable measurements, select the appropriate pressure range, operate within the specified temperature limits, ensure correct wiring and installation, and perform periodic calibration when required.
