SISCO portable temperature and humidity data logger with high sensitivity detector to pick up temperature and humidity with quick response and high precison this device can review the readings of the current 、max、min、up limit、low limit. This temperature data logger combines the functions of signal-sampling, display, storage and analysis, which is widely be applied in the industries of medicine, food processing, agricultural research, laboratory, electronics, air-conditioning, weather service, archives management, etc.

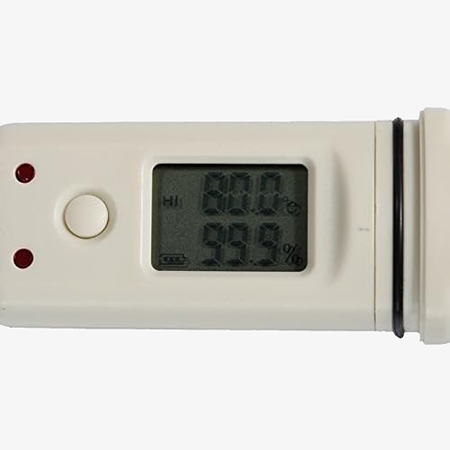

Equipped with a Compact LCD Screen
- Equipped with a Compact LCD Screen: The USB temperature and humidity data logger features a compact LCD screen that clearly displays real-time temperature and humidity readings, allowing users to quickly check environmental conditions without connecting the device to a computer.
- Clear and Easy-to-Read Display: The LCD screen presents key information such as current temperature, humidity level, and device status in a clear format, making it easy to read data at a glance.
- Instant Monitoring in the Field: With the built-in display, users can instantly view environmental data during monitoring, which is especially useful for warehouses, laboratories, cold chain logistics, and storage facilities.

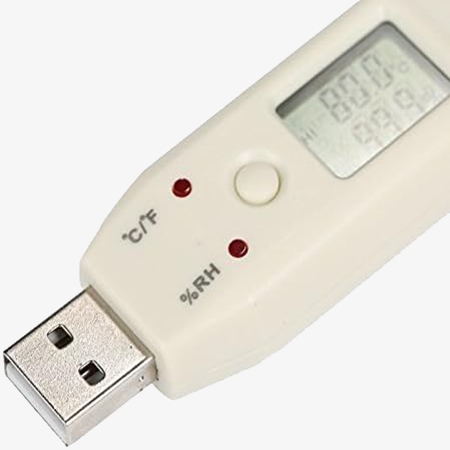

Equipped with Plug-and-Play USB Interface
- Plug-and-Play USB Interface: The built-in USB interface allows the temperature and humidity data logger to connect directly to a computer without additional cables or adapters. Simply plug the device into a USB port to quickly access and download recorded environmental data.
- Easy Data Export and Analysis: After connecting to a computer via the USB port, users can easily export recorded temperature and humidity data for further analysis, reporting, or long-term environmental monitoring.
- No External Reader Required: Unlike traditional data loggers that require a separate reader, the integrated USB design eliminates extra equipment, making data retrieval faster and more convenient.
- Efficient Data Management: The USB connection enables quick data transfer and device configuration, allowing users to manage logging intervals, alarm settings, and monitoring records efficiently.

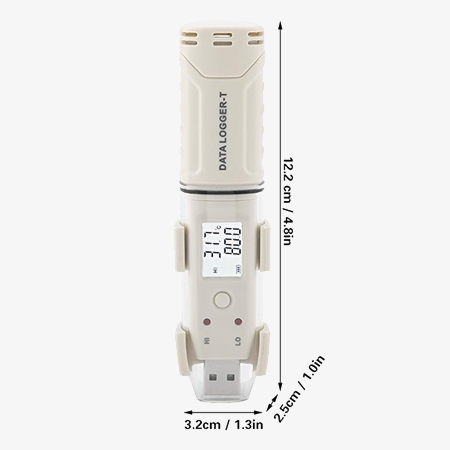

Dimension
Applications
Suitable for use in pharmacy storage, cold chain transportation, agricultural cultivation, and equipment room monitoring, it records temperature changes in real time to ensure environmental stability and safeguard the safety of medicines, food, crops, and equipment. Its precise data recording and alarm functions provide reliable environmental monitoring support for various industries.
Agricultural Cultivation
Data Center Monitoring
Pharmacy Storage
Cold Chain Transportation
| Model | SISCO-TDL-GM1365 |
| Temperature Range | -30°C ~ 80°C |
| Humidity Range | 0 ~ 100% RH |
| Temperature Accuracy | ±0.3°C |
| Humidity Accuracy | ±2% RH |
| Data Storage Capacity | 32,256 Records |
| Max / Min Recording | Yes |
| High Alarm Limit Setting | Yes |
| Low Alarm Limit Setting | Yes |
| USB Interface | Yes |
| Alarm Setting Function | Yes |
| LED Alarm Indicator | Yes |
| Sampling Interval Setting | Adjustable |
| Low Battery Indicator | Yes |
| Dimensions | 126 * 28 * 22 mm |
| Power Supply | 1/2 AA 3.6V Lithium Battery (Not Included) |
| Weight | 50 g |
Q1: What is a temperature data logger?
A1: A temperature data logger is one of the types of temperature measuring instruments. With the popularization and wide application of computers, temperature data recorders have been produced. And because of its more accurate data recording, more convenient data storage, and more convenient data analysis functions, it has been widely used. Paperless temp data logger with USB interface also greatly facilitates the downloading and saving of data.
Q2: What are the functions of temperature data loggers?
A2: Measurement: Built-in temperature sensor or connectable external temperature sensor to measure temperature.
Record Storage: Automatically record and store measured temperature values.
Data transfer: transfer or download the saved measurement data to the computer through the USB interface.
Programming: such as setting sampling rate, data transmission method and interval, selecting temperature sensor type, alarm setting, etc.
Analysis: Perform the necessary analysis on the temperature data through the built-in software.
Q3: What are the advantages of temperature data loggers?
A3: The portable temperature and humidity data logger can regularly collect and record temperature and humidity parameters according to the configured time interval, and can transmit the collected and recorded data to the computer for processing and drawing charts. It is widely used in environmental protection, health and epidemic prevention, warehousing and transportation, museums, greenhouses and other fields. This recorder is powered by high precision sensors and high-energy lithium batteries. It is designed with low-power technology and requires no external power supply. It is small in size, low in power consumption, and high in precision. It can work continuously for more than three years.
Tips: How does a USB temperature humidity data logger work?
A USB temperature humidity data logger works by continuously measuring, recording, and storing environmental temperature and humidity data over time. It combines sensors, memory storage, and a USB interface to make environmental monitoring simple and efficient.
First, the device uses built-in temperature and humidity sensors to detect the surrounding environmental conditions. These sensors measure changes in temperature and relative humidity and convert them into digital signals that the device can process.
Next, the internal processor records the measured values according to a preset logging interval. Users can usually set the recording frequency, such as every 10 seconds, 1 minute, or 10 minutes, depending on monitoring needs. Each recorded measurement is stored in the logger’s internal memory, creating a complete historical record of environmental conditions.
When data analysis is needed, the USB data logger can be connected directly to a computer via a USB port. Using the accompanying software, users can download the recorded data, view temperature and humidity trends, and generate reports or charts for documentation and analysis.
Because of this automatic recording capability, USB temperature and humidity data loggers are widely used in cold chain logistics, pharmaceutical storage, laboratories, greenhouses, warehouses, and food transportation, where continuous environmental monitoring is required.
