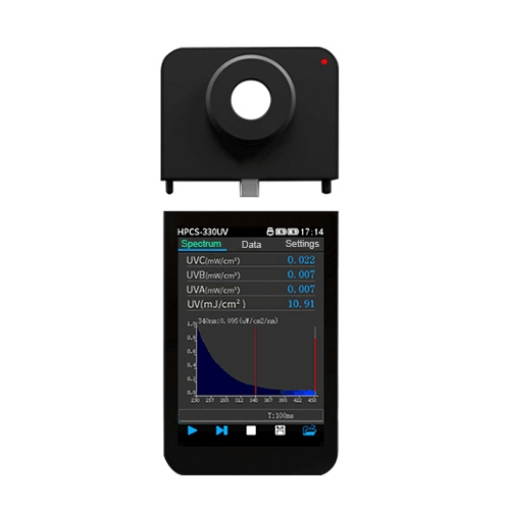

The uv radiometer adopts a magnetic design for the probe and main unit, with automatic switching bluetooth/wired 485 connectivity. The uv light meter is suitable for testing LED UV light sources, traditional UV lamps, and both broad-spectrum and narrow-spectrum light sources.

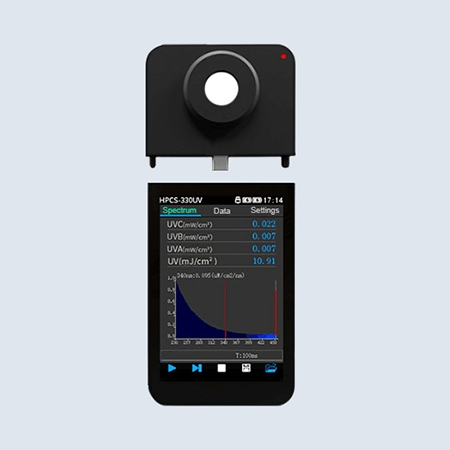

High-Definition IPS touchscreen, automatic zeroing function
- The digital UV meter is equipped with a 3.5-inch high-definition IPS capacitive touchscreen that provides smooth and intuitive operation. Through the touch interface, users can easily view UV measurement data, switch functions, and adjust parameters.
- The uv light tester's main unit is compact and lightweight, making it convenient to carry, while a single full charge offers several hours of continuous operation—ideal for long-duration testing.
- The uv light measurement device features an automatic zeroing function, eliminating the need for manual zero-point calibration before use and greatly enhancing overall convenience.
Probe bluetooth connection, USB connection for PC data analysis
- The UV light meter uses a magnetic, detachable design for the probe and main unit, supporting automatic switching between Bluetooth and USB modes. The probe can connect wirelessly via Bluetooth for long-distance measurements, with a maximum range of 10 meters; even with obstacles present, stable measurement is maintained within 3–5 meters.

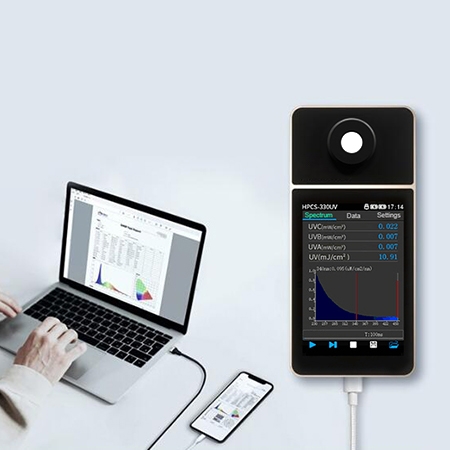

- The ultraviolet light meter includes large-capacity internal storage and supports USB connection to PC software for data synchronization and communication, as well as exporting PDF test reports.
- When ultraviolet radiometer paired with PC software, the UV measurement data can be analyzed and processed efficiently, ensuring excellent linearity and high measurement accuracy.

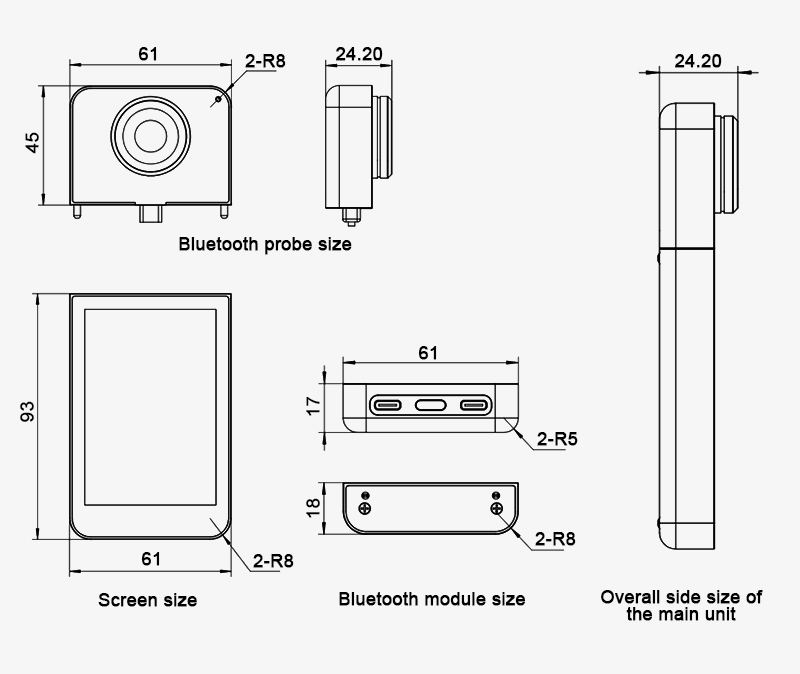

UV Light Tester Size
Application
UV light meters can be used in different UV detection applications in life, such as in the printing industry, household disinfection and sterilization, the medical field, atmospheric UV radiation level detection, etc.
Home Disinfection
Medical Device
PV Testing
Printer
| Model | SISCO-UVM-HPCS-330UV |
| Wavelength | 230-450 nm |
| Spectrometer Platform | Compact Cross Asymmetrical CT Spectrometer System |
| Sensor | High-precision CCD |
| Photodetector | Φ12mm Cosine Corrector |
| Wavelength Accuracy | ±1nm |
| Irradiance Accuracy | Level 1 ±8% |
| Spectral Bandwidth (FWHM) | 4nm |
| Integration Time | 50us-10000ms |
| Display Screen | 3.5-inch HD Touchscreen |
| Data Interface | Bluetooth/USB Type C |
| Bluetooth Communication Distance | 0 ~ 10m (unobstructed) |
| Host Storage Capacity | 512MB (Usable capacity 480MB) |
| Dimensions (L x W x H) | 138*61*23.4 mm |
UV Light Tester User ManualQ1: What is a UV energy meter?
A1: A UV energy meter is a high-precision instrument specifically designed to measure the energy of ultraviolet radiation. It receives ultraviolet radiation through a specific detector and converts it into electrical signals for processing, thereby calculating the energy value of ultraviolet radiation.
Q2: What is the working principle of a UV energy meter?
A2: Based on the photoelectric effect and the fluorescent reaction of ultraviolet rays to certain specific materials (such as fluorescent agents). When ultraviolet rays are irradiated on the detector, the material inside the detector absorbs ultraviolet energy and emits visible light (fluorescence). The UV energy meter receives these fluorescent radiations through a built-in detector or directly detects the changes in electrical signals caused by ultraviolet radiation, and then measures and calculates the strength of ultraviolet energy.
Q3: What are UV energy meters used for?
A3: The printing industry used to monitor the energy output during UV curing to ensure the quality of printed products. The medical industry uses energy monitoring of ultraviolet disinfection equipment to ensure disinfection effectiveness. The photovoltaic industry, used for ultraviolet energy monitoring during the production of solar panels. Laboratory research, used for ultraviolet energy measurement and research in optics, chemistry, and other fields.
