    What is a Digital Manometer?

    In the world of pressure measurement, precision and ease of use are paramount. Enter the manometer, a modern tool designed to measure pressure accurately across various applications. Whether you're an HVAC technician, a laboratory scientist, or an industrial engineer, understanding the functionality and benefits of a digital manometer can significantly enhance your work efficiency and accuracy. Let's delve into what a digital manometer is, how it works, and why it might be the right tool for your pressure measurement needs.


    A digital manometer is an electronic manometer that measures the pressure of a liquid or gas and converts it into a digital signal for reading and processing. It usually includes components such as a sensor, an analog-to-digital converter (ADC), a microprocessor, and a display.

    The sensor is the core component of a digital manometer, which is used to convert pressure into an electrical signal. Different sensor technologies can include piezoresistive, piezoelectric, millimeter-wave radar, etc., each of which has its own applicable application scenarios and accuracy requirements.

    The ADC is responsible for converting the analog electrical signal output by the sensor into a digital signal for further processing and display. The microprocessor is responsible for processing and analyzing the digital signal and providing pressure readings through a display or other interface.

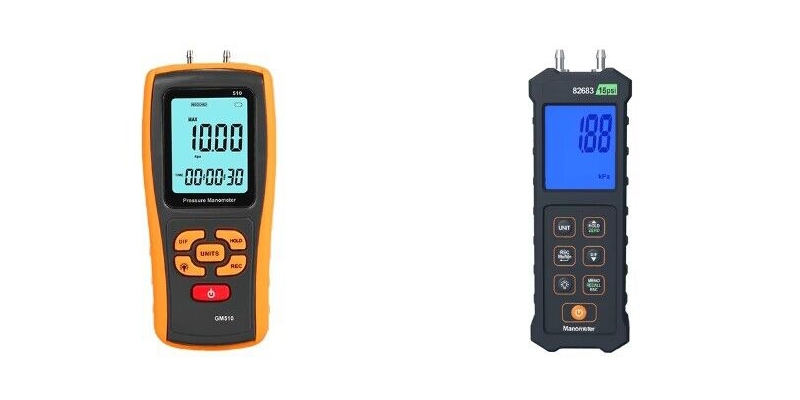

    Digital manometer

    Digital Manometer Working Principle

    The core part of the digital pressure gauge is the sensor. Common sensors include piezoresistive sensors and magnetic sensors. Their working principles are based on the effect of pressure changes on sensor resistance or voltage. Under the action of pressure, the pressure sensed inside the sensor is converted into a corresponding electrical signal through a converter, which is then processed by a digital circuit and finally displayed on the display. Among them, the piezoresistive sensor converts pressure into an electrical signal based on the principle that the resistance of a metal sheet changes when it is deformed, while the magnetic sensor converts the changing magnetic field signal into an electrical signal based on the magnetoelectric effect. Here’s a detailed breakdown of its operation:

    1. Pressure Sensing
      The core component of a digital manometer tester is the pressure transducer, which is responsible for sensing pressure. This transducer is exposed to the pressure source, which can be in the form of gas, liquid, or a combination of both.
    1. Signal Conversion
      Once the pressure transducer is exposed to the pressure source, it converts the applied pressure into an electrical signal. This process is known as the piezoelectric effect, where certain materials generate an electric charge in response to mechanical stress.
    1. Signal Processing
      The electrical signal generated by the transducer is often weak and requires amplification and conditioning. The manometer’s internal circuitry processes this signal to enhance its accuracy and stability. This step involves filtering out noise and compensating for any temperature variations that might affect the reading.
    1. Display
      The processed electrical signal is then converted into a readable pressure value, which is displayed on the digital screen. This display provides a clear and precise reading, often with options to switch between different units of measurement such as psi, Pa, and bar.

    Key Features of Digital Manometers

    Digital manometers come with a variety of features that make them superior to their analog counterparts:

    • High Accuracy and Reliability

      Digital pressure gauges have high measurement accuracy and reliability, and can provide accurate and stable pressure readings. They usually have low nonlinear errors, temperature effects and long-term stability, and are suitable for applications with high pressure requirements.

    • Programmability and Flexibility

      Digital pressure gauges are programmable and flexible, and can be set and adjusted according to different needs. Users can select units, sampling rates, data storage methods, etc. by setting parameters, and configure alarm and control functions. This makes digital pressure gauges suitable for various application scenarios and working environments.

    • Convenient Data Processing and Connection

      Digital pressure gauges have convenient data processing and connection functions, making data acquisition and transmission more convenient. Through digital interfaces (such as USB, RS-485, Ethernet, etc.), digital pressure gauges can be connected to computers or other devices to achieve real-time monitoring, recording and analysis of data. Some digital pressure gauges also have built-in memory, which can save the collected data on the device itself and view and export it at any time.

    • Various Forms and Applications

      Digital pressure gauges have received widespread attention for their various forms and applications. They can be handheld portable devices suitable for field testing and debugging; they can also be panel-mounted custom instruments for industrial automation and control systems; in addition, some digital pressure gauges are also explosion-proof and waterproof, suitable for application requirements in special environments.

    • Highly Customizable

      Digital pressure gauges are usually highly customizable. Users can choose different ranges, accuracy levels, and output signal types according to their needs. Some digital pressure gauges also provide additional options such as temperature compensation, remote display, multi-point calibration, etc. to meet the requirements of specific applications.

    Applications of Digital Manometers

    Digital manometers are versatile instruments widely used across various industries due to their accuracy, reliability, and advanced features. Let’s explore some of the key applications where digital manometers play a crucial role:

    1. HVAC Systems:
      In the heating, ventilation, and air conditioning (HVAC) industry, digital manometers are essential for measuring and balancing air pressure. HVAC technicians use these devices to ensure proper airflow and pressure in ducts, vents, and HVAC equipment.
    2. Industrial Processes:
      Digital manometers find extensive use in industrial settings to monitor pressure in pipelines, tanks, and machinery. Engineers rely on these instruments to maintain optimal pressure conditions for safe and efficient operation of industrial processes.
    3. Laboratory Research:
      In scientific laboratories, precise pressure measurement is crucial for experiments and research. Digital manometers provide accurate readings required for various scientific studies, ensuring consistency and reliability in experimental conditions.
    4. Automotive Industry:
      Automotive technicians use digital manometers to measure and calibrate tire pressures. Maintaining proper tire pressure is essential for vehicle safety, fuel efficiency, and optimal performance.
    5. Medical Equipment:
      In medical applications, digital manometers are used to measure pressures in medical devices such as respiratory equipment, anesthesia machines, and blood pressure monitors. Accurate pressure readings are critical for patient safety and treatment effectiveness.
    6. Environmental Monitoring:
      Environmental scientists use digital manometers for monitoring atmospheric pressure and water pressure in environmental studies. These instruments help assess changes in pressure that may affect weather patterns, ocean currents, and ecological systems.
    7. Process Control and Quality Assurance:
      In manufacturing and production facilities, digital manometers play a critical role in process control and quality assurance. They ensure that pressure levels meet specifications and maintain consistency in manufacturing processes.
    8. Aerospace and Aviation:
      Digital manometers are used in the aerospace and aviation industries to measure cabin pressure in aircraft. Accurate pressure monitoring ensures passenger comfort and safety at high altitudes.

    How to Choose a Digital Manometer

    Selecting the right digital manometer involves considering key factors to ensure it meets your specific needs:

    1. Measurement Range and Accuracy
      Choose a manometer with a suitable measurement range and high accuracy for precise pressure readings in your application.
    2. Display and User Interface
      Opt for a clear digital display and intuitive controls for easy operation, especially in different lighting conditions.
    3. Units of Measurement
      Ensure the manometer supports relevant pressure units (psi, Pa, bar) for your industry or application standards.
    4. Data Logging and Storage
      Look for data logging capabilities to record and analyze pressure readings over time. Check compatibility with data export formats like PDF or CSV.
    5. Portability and Durability
      Select a compact, durable model if you need to use the manometer in various environments. Consider resistance to dust, water, and impact.
    6. Additional Features
      Evaluate alarm functions for safety alerts, connectivity options for data transfer (Bluetooth, USB), and battery life for extended use.
    7. Calibration and Maintenance
      Choose a manometer that is easy to calibrate and maintain for consistent accuracy. Consider self-calibration features or included calibration certificates.
    8. Application-Specific Considerations, tailor your choice based on industry needs:
      • HVAC: Ensure suitability for air pressure measurement.
      • Industrial: Opt for robust designs for harsh environments.
      • Laboratory: Prioritize accuracy for scientific experiments.
      • Automotive: Select models for tire pressure and diagnostics.

    By considering these factors, you can choose a digital manometer that enhances efficiency, accuracy, and reliability in your pressure measurement tasks.

    Digital manometers represent a significant advancement in pressure measurement technology, offering precision, convenience, and versatility. Whether for professional or personal use, these devices provide reliable and accurate pressure readings, making them indispensable tools across various fields. As technology continues to evolve, digital manometers will likely become even more integrated into our daily operations, ensuring that we measure pressure with confidence and accuracy. If you want to know more about digital manometer, please enter!
