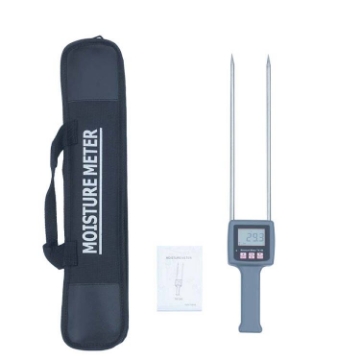

Portable Wood Moisture Meter, Pin Type, LCD Display

Portable wood moisture meter is used for measuring sawdust, bamboo powder, etc. Digital moisture tester, pin type, provides 0-80% measuring range, LCD display, 5-90% humidity and high sensitivity sensor, accuracy and reliability.
SKU: SISCO-MM-TK100W
$189.46
i h
Overview


Digital wood moisture meter, pin type, for sale online. It provides a 0-80% measuring range, LCD display, and 5-90% humidity. Handheld moisture tester can measure wood sawdust and bamboo powder quickly and accurately.

Features

  1. Digital wood moisture tester has a wide measuring range of moisture, high precision, clear display, rapid measurement, stable performance, small size, and can be carried in the field for rapid detection and easy to use.
  2. The time of moisture measurement is shortened, the whole process is operated for less than a minute, and the measured value is displayed in real-time.

Digital grain moisture tester details

LCD display/Operation area

  • Portable wood moisture meter with a backlight LCD technology clear display, and low power consumption.
  • Microprocessor control, wood moisture tester built-in program automatic protection measures, good stability.
Grain moisture details

Probe type sensor/Power Supply

  • Wide working range, probe type sensor can be used for in-depth measurement of materials.
  • The power supply of the wood moisture detector is equipped with 4 No.7 batteries.


Applications

The moisture meter, also known as the moisture detector, is an instrument that can quickly measure the moisture content. The wood moisture meter is suitable for measuring the moisture content of all kinds of wood, particleboard, fiberboard, veneer, plywood, bamboo board, wood fiber, shavings, etc. It is also suitable for measuring the moisture content of lignocellulosic substances such as bamboo products, woodware, tobacco, cotton, paper and other non-conductive substances.

Digital wood moisture meter applications

Specs
  • Model: SISCO-MM-TK100W
  • Display: 4 Digital LCD
  • Measuring Range: 0%-80%
  • Resolution: 0.1 um
  • Humidity: 5%-90%
  • Temperature: 0-60°C
  • Accuracy: ±0.5%n
  • Power Supply: 4x1.5 AAA Size (UM-4) Battery
  • Operation: Electrical resistance method, automatic temperature compensation
  • Dimensions: 460mm x 75mm x 35mm
  • Weight: 203g (Not Including Battery)
FAQs

Q1: How does a moisture meter work?
Q2: The portable moisture detector is composed of a capacitance sensor, C/V conversion circuit, A/D converter and LCD digital display circuit. After the capacitance sensor is scooped into the tested grain, the medium is a variety of different grains tested. Since the dielectric constant of water is much larger than that of general substances, a small change in the measured grain water content will cause a large change in the capacitance of the sensor. Through the C/V conversion circuit and A/D converter, the LCD digital circuit directly shows the percentage of the measured grain water content.

Q1: What are the types of moisture meters?
A2: A moisture meter (moisture tester)  is a measuring instrument for moisture content that can quickly determine the moisture content of a substance. Commonly used moisture meters include chemical moisture meters, paper moisture meters, infrared moisture meters, grain moisture meters, building materials moisture meters, mortar moisture meters, crack moisture meters, soil moisture meters and wood moisture meters.

Q3: Why need a digital wood moisture meter?
A3: When using a wood moisture meter, you can accurately assess the problems that a given sample of wood may encounter, such as cracking, shrinkage, splitting, mold growth, etc. When the moisture content of the wood is too high/low, the quality of the product suffers. Using a hygrometer can help you ensure that the moisture content of the wood material you are using is in the correct range to avoid some problems.

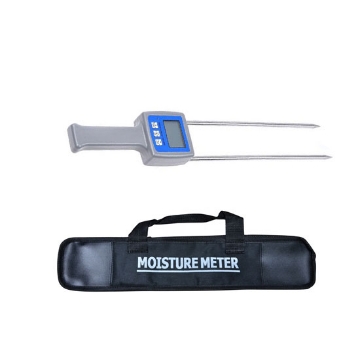

A portable grain moisture meter is a high-precision moisture detector, it can be the real-time measurement of the whole package of grain moisture, and can be measured in kinds of grains, including wheat, flax, corn, paddy, and oats.

Tips: Types of wood moisture meter

Wood moisture meters can be divided into pin-type wood moisture meters and induction-type wood moisture meters.

  • The pin-type wood moisture meter includes a diode display wood moisture meter and a digital display wood moisture meter.
  • The inductive wood moisture meter includes an external sensor wood moisture meter and a built-in sensor wood moisture meter. The built-in sensor wood moisture meter can be divided into digital built-in sensor wood moisture meter and pointer built-in sensor wood moisture meter.
