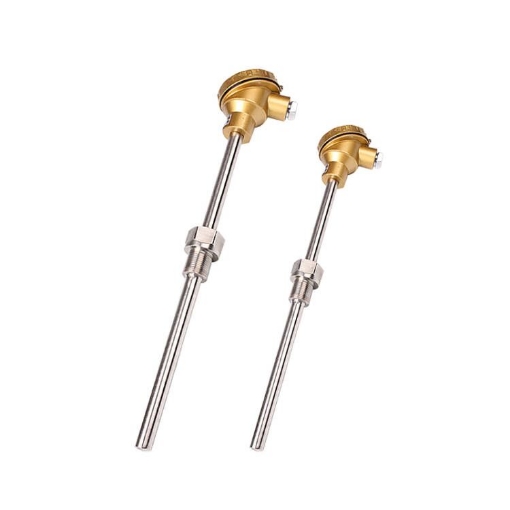

    300 mm K Type Thermocouple

    K type thermocouple for sale online. Thermocouple thermometer is used for temperature measurement of liquid temperature, and gas temperature, and are widely used in the chemical industry, petroleum, machinery, shipbuilding, power generation, etc. 300mm thermocouple equipped with a high-temperature resistant thermocouple head for temperature resistance 0-1000°C and a waterproof and rust-proof junction box, more stable, strong, durable, and long service life.
    SKU: SISCO-KTT-300
    $105.89
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    The provided thermocouple is a K type thermocouple, designed for temperature measurement of liquid temperature, and gas temperature. Thermocouple thermometer comes with a 300mm length, 0~1000°C measuring range, and a waterproof and rust-proof junction box. Use with display instruments, recording instruments and electronic regulators, K-type thermocouple is widely used in the chemical industry, petroleum, machinery, shipbuilding, power generation, etc.

    K type thermocouple details

    K-type thermocouple is used for temperature measurement of liquid temperature, and gas temperature, and are widely used in the chemical industry, petroleum, machinery, shipbuilding, power generation, textile, printing and dyeing, etc.

    • The 300mm thermocouple is the most commonly used temperature detector in medium and low-temperature areas, equipped with a high-temperature resistant thermocouple head, high-frequency anti-interference, and temperature resistance 0-1000°C.
    • The thermocouple has a waterproof and rust-proof junction box, stable, strong, durable, and long service life.
    • The interior of the thermocouple thermometer uses high-frequency magnetic beads for more precise use.
    • Both a two-wire system and a four-wire system can be selected, and the measurement is more stable.
    • The German back cover technology is adopted, and the thermocouple thermometer is shock-resistant and pressure-resistant.

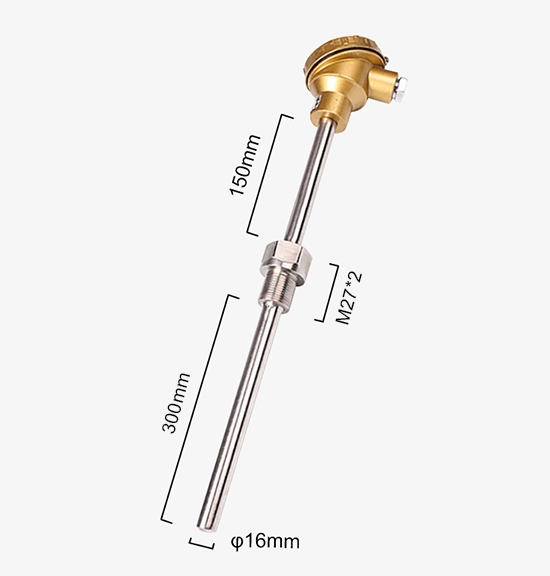

    Dimension

    300mm thermocouple size

    Applications

    SISCO K type thermocouples are widely used in science and industry, including temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.

    Thermocouple applications

    Specs
    • Model: SISCO-WRN-230-K300
    • Range: 0-1000°C
    • Thread: M27*2
    • Length: 300mm
    • Even Wire Diameter: Default 2.5mm
    • Installation Method: Fixed Thread device
    • Protective Tube Diameter: Default 16mm
    • Protective Tube Material: Default 304

    Note:

    • Thread, insertion depth and cold end length can all be customized. If necessary, please contact us.
    • Use 2520 high-temperature resistant material or 310 stainless steel protection tube for long-term temperature measurement above 1000 degrees, and the diameter of the dual wire is 2.5mm or 3mm.
    FAQs

    Q1: What is a thermocouple?
    A1: A thermocouple is a commonly used temperature-measuring component in a temperature-measuring instrument. It directly measures the temperature and converts the temperature signal into a term electromotive force signal, which is converted into the temperature of the measured medium by an electric meter (secondary meter). The shape of various thermocouples is often very different due to the needs, but their basic structure is almost the same, usually composed of the hot electrode, insulating sleeve protection tube and junction box, etc., usually with a display instrument, recording instrument and electronic adjustment Used in conjunction with the device.

    Q2: What is a K-type thermocouple used for?
    A2: As a transmitter for measuring temperature, industrial K-type thermocouples are usually used in conjunction with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of liquid, vapor and gaseous media and solids ranging from 0°C to 1000°C in various production processes.

    Q3: How does a thermocouple work?
    A3: A thermocouple is the connection of two different conductors or semiconductors into a closed circuit. When the temperature of the two junctions is different, an electromotive force will be generated in the circuit. This phenomenon is called the hot spot effect, also known as the Seebeck effect. The end directly used to measure the temperature is called the working end, and the other end is called the cold end. The cold end is directly connected to the instrumentation or supporting equipment, and the display instrument will point out the electromotive force generated by the thermocouple.

    Tips: What is a K type thermocouple?

    SISCO K type thermocouple is a kind of temperature sensor, which is usually used in conjunction with display instruments, recording instruments and electronic regulators. K-type thermocouple is composed of main components such as temperature sensing element, installation fixture and junction box.
