Q1: What is a thermocouple?

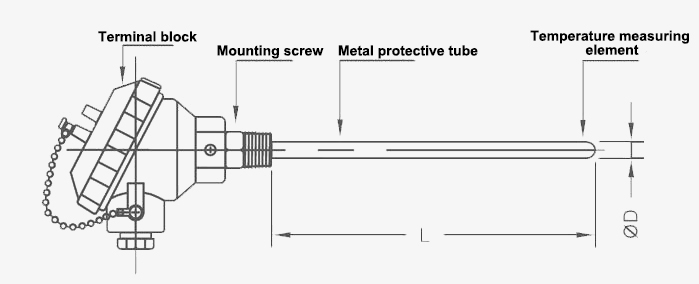

A1: A thermocouple is a commonly used temperature-measuring component in a temperature-measuring instrument. It directly measures the temperature and converts the temperature signal into a term electromotive force signal, which is converted into the temperature of the measured medium by an electric meter (secondary meter). The shape of various thermocouples is often very different due to the needs, but their basic structure is almost the same, usually composed of the hot electrode, insulating sleeve protection tube and junction box, etc., usually with a display instrument, recording instrument and electronic adjustment Used in conjunction with the device.
Q2: What is a K-type thermocouple used for?
A2: As a transmitter for measuring temperature, industrial K-type thermocouples are usually used in conjunction with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of liquid, vapor and gaseous media and solids ranging from 0°C to 1000°C in various production processes.
Q3: How does a thermocouple work?
A3: A thermocouple is the connection of two different conductors or semiconductors into a closed circuit. When the temperature of the two junctions is different, an electromotive force will be generated in the circuit. This phenomenon is called the hot spot effect, also known as the Seebeck effect. The end directly used to measure the temperature is called the working end, and the other end is called the cold end. The cold end is directly connected to the instrumentation or supporting equipment, and the display instrument will point out the electromotive force generated by the thermocouple.
Tips: 6 Thermocouple Types - Fixture Type

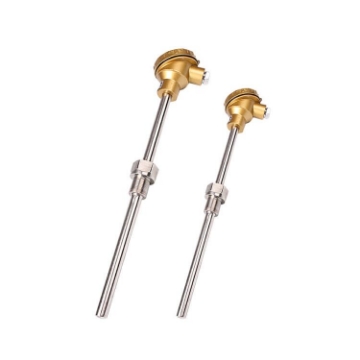

As the main means of temperature measurement, thermocouples are widely used, so there are various requirements for fixing devices and technical performance. Therefore, the fixing devices of thermocouples are divided into six types: no fixing device type, thread type, fixed flange type, movable flange type, movable flange square type, and tapered protective tube type. SISCO K-type thermocouples are threaded fixed installations.
