This air particle monitor is suitable for both home users concerned about respiratory health and environmental research scenarios, making it a powerful tool for accurate air quality measurement.
Dual-parameter Precise Particle Measurement
- Simultaneously measures the particle number and mass concentration of PM2.5 and PM10. The high resolution of 1 µg/m³ accurately captures subtle fluctuations in concentration, helping users comprehensively understand air quality.
- While monitoring particulate matter concentration, it integrates temperature and humidity detection functions, with a temperature measurement range of 0~50℃ and a humidity range of 0~100%RH, making environmental regulation more scientific.
- A Bluetooth 4.0 communication interface allows for real-time transmission of measurement data to mobile devices such as smartphones. This feature allows users to view data at any time and perform more in-depth analysis and recording.
Flexible Sampling, Automatic Power-off for Energy Saving
- The sampling time can be set as needed (30 seconds to 5 minutes), and automatic power-off time settings are supported (3/10/30 minutes or no automatic power-off), effectively saving power.
- Built-in storage space can save up to 5000 sets of measurement data. Users can quickly view historical records through the device interface or shortcut keys.

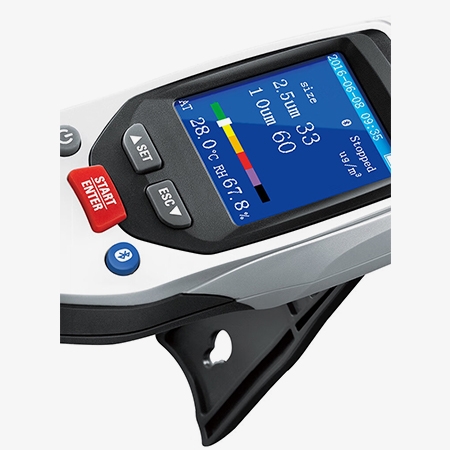

- A 2.0-inch TFT color LCD screen supports real-time display of particulate matter concentration, temperature, and humidity data, a real-time clock, and analog bar indicators. An alarm switch can be set to alert the user when particulate matter concentration exceeds the standard, and a temperature unit (℃/℉) switching function is also provided.
Applications
The particle counter is a precision instrument used to measure the number and size distribution of suspended particles in the air. The application of particle counters not only improves production efficiency and product quality, but also helps to protect the health and safety of workers, and also plays a positive role in environmental protection. It has a wide range of applications in many fields.
Dust Free Workshop
Epidemic Prevention Station
Laboratory
Clean Room
| Model | SISCO-PC-DT96B | |
| Particle Concentration | ||
| Particle Size Channel | 2.5μm, 10μm | |
| PM2.5: 0~2000ug/m3 | ||
| Mass Concentration Range | PM10: 0~2000ug/m3 | |
| Resolution | lug/m3 | |
| Air Temperature and Humidity | ||
| Temperature Range | 0~50℃/32~122℉ | |
| Resolution | 0.1℃/℉ | |
| Resolution Accuracy | ±1℃/2℉ | |
| Humidity Range | 0~100%RH | |
| Resolution | 0.1%RH | |
| Resolution Accuracy | ±5%RH | 0~20%RH |
| 80~100%RH | ||
| ±3.5%RH | 20~80%RH | |

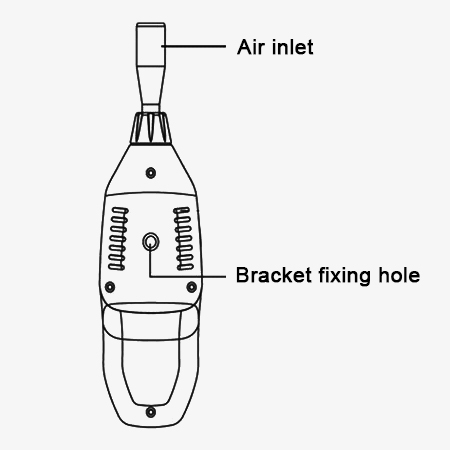

Structural diagram
Q1: How to use the handheld particle counter?
A1: The particle counter is simple to use, first determine the number of test points according to the area of the clean room and distribute the test points evenly in the clean room, then set the measurement time, measurement unit, flow rate, and other parameters of the particle counter, then put the particle counter on the plane of 1~1.2 meters height from the ground in the middle of the sampling point, and finally start to test the sampling and record the data one by one.
Q2: How to change the printing paper of the particle counter?
A2: Generally, the printing part of the particle counter has a cover, some covers can be lifted directly to cover, lift it to replace the printing paper, and some need to use a screwdriver to unscrew the screw, the specific instructions are also introduced, open the cover to follow the thermal printing paper can be replaced.
Q3: How to read the dust particle counter?
A3: The results of the dust particle counter, generally the left column is the particle diameter, and the right column is the number of particles per cubic meter.
Tips: Counterintuitive Points Regarding Air Particle Counter Data Interpretation
- The higher the cleanroom's sophistication, the "uglier" the data appears. High-level cleanrooms are extremely sensitive to small fluctuations, making the data appear "unstable."
- A sudden increase in particles does not necessarily indicate a contamination event, but the absence of a sudden increase could actually suggest sensor malfunction.
- Averaging is the most dangerous statistical method; it masks everything you truly need to pay attention to.
