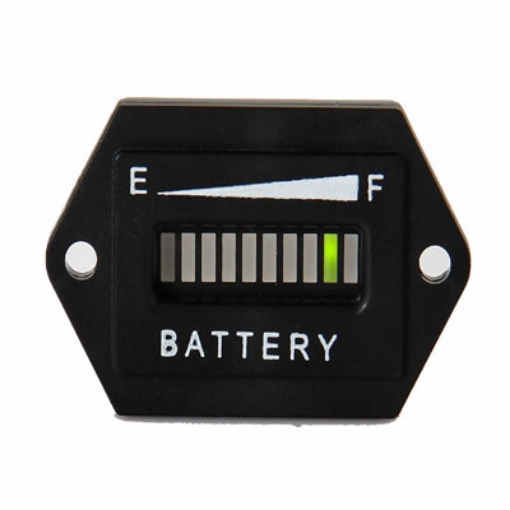

Designed for reliable battery monitoring, this battery charge indicator provides automatic 12V/24V recognition, a stepwise LED battery gauge display, flashing reserve warnings, and power-off memory. The rugged IP65 housing and simple installation suit demanding vehicle and marine applications.
Battery state monitoring and low battery alerts
- Automatically recognizes 12V and 24V lead acid batteries without manual adjustment.

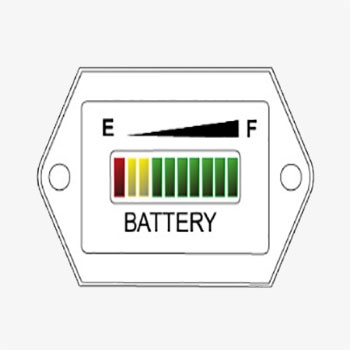

- Displays real-time state of charge with 10-segment tri-color LED bar: green (41-100%), yellow (21-40%), red (≤20%).
- Flashing alerts: the second LED from left flashes for energy reserve; the first and second flash together when the battery is empty and needs replacement.
- Step-down only display shows real discharge from full to empty – no false rise without charging.
Smart memory, charge detection, and rugged design
- Power-off memory remembers the last state of charge after power loss.
- Smart charge detection: 10th LED lights only when voltage >13.5V (12V system), preventing false full readings from surface charge.
- C-Control terminal allows connection to ignition or key switch – gauge runs only when vehicle is on.
- IP65 waterproof rating and wide temperature range from -40°F to 185°F for reliable outdoor use.
Applications
LED battery indicators are used to monitor the state of charge for lead-acid batteries in applications such as trucks, RVs, golf carts, boats, forklifts, electric scooters, solar systems, and any battery-operated equipment.
Trucks
RVs
Golf Carts
Boats
Â
| Model | SISCO-BI-001 |
| Voltage | 12V / 24V auto |
| Display | 10-LED tri-color |
| LED Colors | Green (41-100%), Yellow (21-40%), Red (≤20%) |
| Low Reserve Alert | 2nd LED flashes |
| Empty Alert | 1st & 2nd LEDs flash |
| Charge Start Voltage | >13.5V (12V system) |
| Step-Down Logic | Yes, no false rise |
| Power-Off Memory | Yes |
| C-Control Terminal | Yes (ignition wiring) |
| Waterproof | IP65 |
| Temp Range | -40°F ~ 185°F |
| Housing | ABS |
| Cutout Size | 1.5" x 1" |
| Depth | 1.5" |
| Weight | 45g |

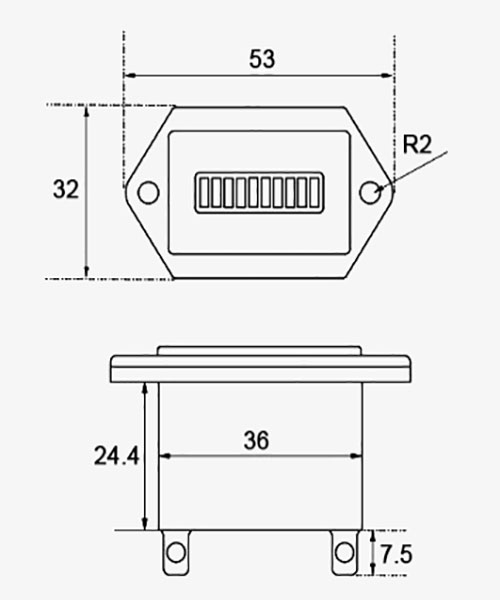

Dimension (unit: mm)

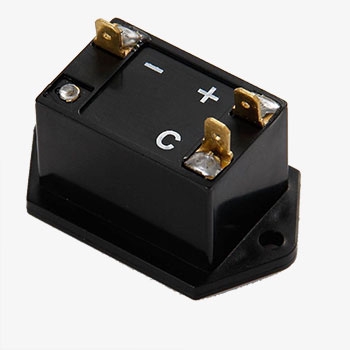

Q1: Does this battery indicator work on both 12V and 24V lead acid batteries?
A1: Yes, it automatically recognizes 12V and 24V lead acid batteries without any manual switches or settings. Simply connect the Pin+ to the battery positive, Pin- to the battery negative, and connect the C-Control terminal to V+ to start the gauge. The voltage recognition is fully automatic based on the battery's actual voltage.
Q2: Why does the display only go down and never go up during use?
A2: This gauge is designed with a step-down only logic to reflect true battery discharge. When a battery is under heavy load (such as climbing a hill in a golf cart), the voltage may temporarily drop, but the actual state of charge hasn't changed. The gauge prevents false readings by not rising without proper charging. Only when a stable charging signal (voltage >13.5V for a 12V system) lasts for a certain period will the gauge show step-up.
Q3: What do the flashing LEDs mean?
A3: The 2nd LED from the left flashes to indicate "energy reserve" – you should charge the battery soon. When both the 1st and 2nd LEDs from the left flash together, it means the battery is "empty" and needs to be replaced with a new one. These alerts help you avoid unexpected breakdowns during operation.
Tips: How to install and use this battery indicator correctly?
The battery indicator is designed for panel mounting on trucks, RVs, golf carts, boats, and other battery-operated equipment. Proper installation and wiring ensure accurate readings and prevent battery drain.
- Choose a dry, vibration-free panel. Connect the C-Control terminal to a key-switched positive wire (ignition) so the gauge only draws current when the vehicle is on, preventing parasitic battery drain.
- The gauge ships with a factory-set “full” memory. After connecting a new battery, keep it powered for at least 2.5 minutes. The gauge will then display the actual battery level and memorize it.
- If the 2nd LED from the left flashes, charge the battery soon. If both the 1st and 2nd LEDs flash together, the battery is empty and needs replacement.
