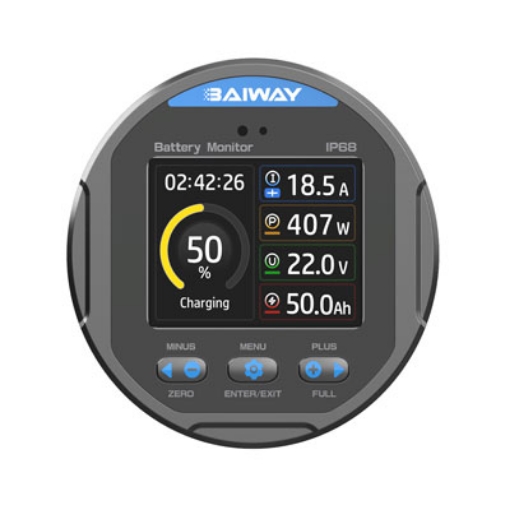

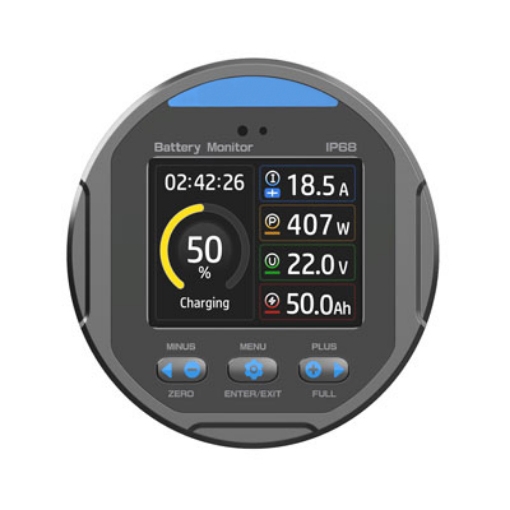

The Electric Battery Capacity Indicator is a battery capacity indicator, battery level indicator, and battery gauge designed to provide a real-time battery indicator display, showing battery charge indicator and battery level meter for accurate power monitoring in different systems.
Precision real-time battery monitoring with full data visibility

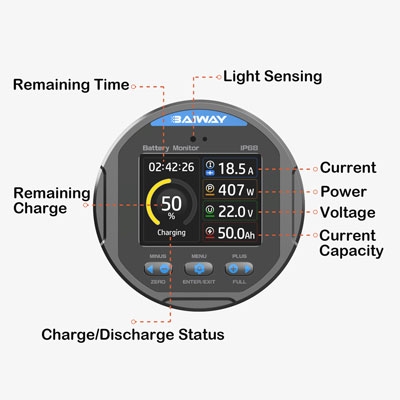

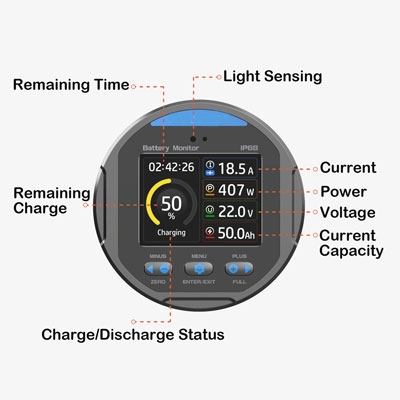

- Simultaneously displays voltage (V), current (A), power (W), and remaining capacity (Ah) – giving you a complete real-time snapshot of battery health, charge/discharge status, and overall system performance.
- Calculates estimated remaining runtime (e.g., 02:08:34) based on real-time load, allowing you to schedule usage, avoid unexpected shutdowns, and maximize efficiency during trips or work shifts.
- Supports a wide capacity range from 0.1 to 1000 Ah and works seamlessly with lithium, LiFePO4, lead-acid, AGM, gel, and NiMH batteries – covering everything from small mobility scooters to large off-grid solar storage systems.
- Offers three shunt options (50A/0-75A, 100A/0-150A, 350A/0-500A) with solid copper construction and gold-plated sockets, ensuring high accuracy and low resistance for e-bikes, golf carts, RVs, marine vessels, and industrial forklifts.
User-friendly interface & flexible installation for any vehicle
- Auto-dimming backlight with a built-in ambient light sensor adjusts brightness automatically for clear visibility in sunlight or darkness. You can also switch to manual dimming via front buttons for personalized preference.
- Dual mounting options are included. Choose the snap-in panel mount for dashboards of RVs, forklifts, and yachts. Alternatively, use the handlebar bracket mount for e-bikes, electric scooters, and mobility carts.
- Features a high-color-gamut LCD screen (72.5×20.75 mm) with wide viewing angles. Intuitive menu navigation (PLUS/MINUS, MENU, ENTER/EXIT) makes setup of capacity, alarm thresholds, and voltage points quick and hassle-free.
- The host has a compact size (15×15×5 cm) and a lightweight build (210-420g). It fits tight spaces without adding bulk. Its low-profile design blends seamlessly into any vehicle or equipment dashboard.

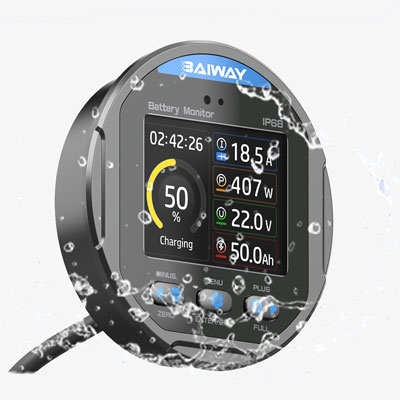

IP68 waterproof engineering & intelligent safety protection
- Rated IP68 waterproof and dustproof. It is fully protected against prolonged immersion and fine particles. This makes it ideal for rainy decks, dusty job sites, outdoor RVs, and marine applications.

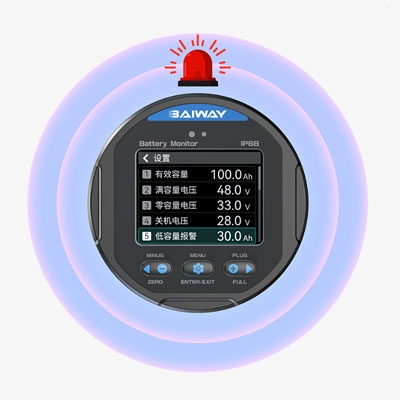

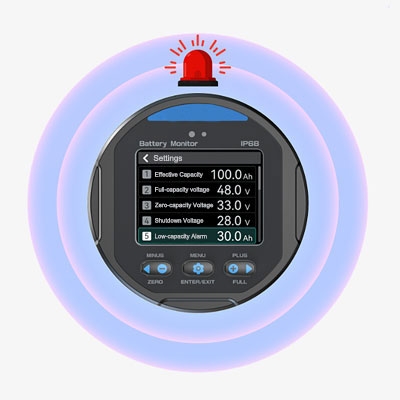

- Features an adjustable low-capacity alarm with a custom threshold (e.g., 30.0Ah) and instant alerts, helping prevent deep discharge that can damage lithium or lead-acid batteries.
- Equipped with precision copper shunts. The 50A shunt includes an insulated back and protective cover to prevent short circuits. All shunts deliver ultra-low resistance and accurate current sensing for reliable overcurrent protection.
- Consumes only 60-250 mW in standby mode. This minimizes parasitic drain on your battery during idle periods. It is essential for long-term storage, solar installations, and weekend camping trips.
Applications
The Electric Battery Capacity Indicator is suitable for a wide range of power management scenarios where stable energy tracking is required. It is commonly used in mobile equipment, backup power systems, and renewable energy setups. The device helps operators maintain efficient energy usage, improve system reliability, and ensure stable battery performance in demanding operating environments.
Electric Vehicles
Forklifts
RVs
Yachts
| Model | SISCO-BI-TR24-50 | SISCO-BI-TR24-100 | SISCO-BI-TR24-350 |
| Shunt Current Range | 0 – 75 A | 0 – 150 A | 0 – 500 A |
| Host Weight | 210 g | 280 g | 420 g |
| Shunt Weight | 27 g | 111 g | 257 g |
| Shunt Dimensions (mm) | 47 × 41 × 13 | 56 × 25 × 30 | 66 × 37 × 35 |
| Shunt Features | Solid copper, gold-plated sockets; aluminum substrate, insulated back, protective cover | Solid copper, gold-plated sockets; transparent base, communication port, copper screws | Solid copper, gold-plated sockets; transparent base, communication port, copper screws |
| Operating Voltage | 8V – 80V (12V/24V/48V compatible) | ||
| Display | LCD high-color-gamut color screen | ||
| Screen Size | 72.5 × 20.75 mm | ||
| Host Dimensions | 15 × 15 × 5 cm | ||
| Standby Power Consumption | 60 mW – 250 mW | ||
| Capacity Range | 0.1 – 1000 Ah (adjustable) | ||
| Waterproof & Dustproof Rating | IP68 | ||
| Compatible Battery Types | Lithium, LiFePO4, Lead-Acid, AGM, Gel, NiMH | ||
| Backlight Control | Auto-dimming (with light sensor) or manual | ||
| Low-Capacity Alarm | Adjustable threshold with visual alert | ||
| Mounting Options | Panel snap-in / Handlebar bracket | ||

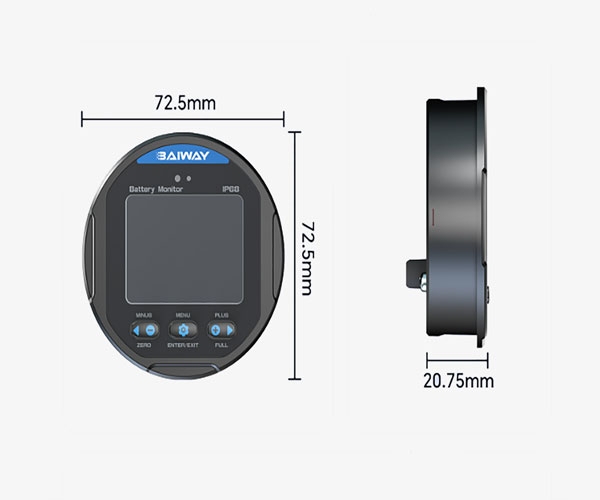

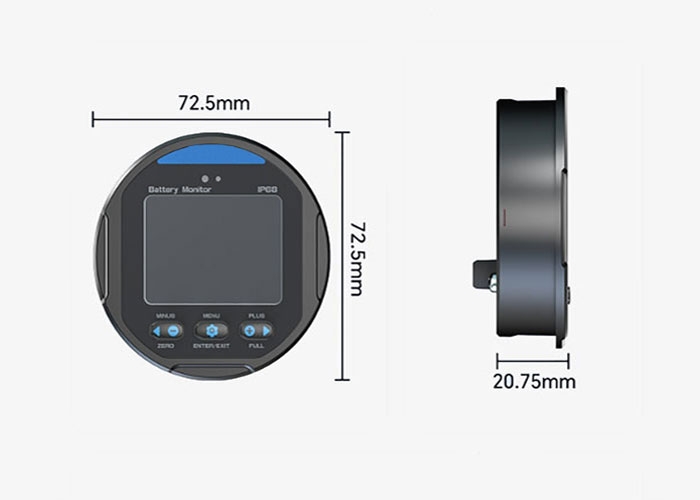

Dimension (unit: mm)

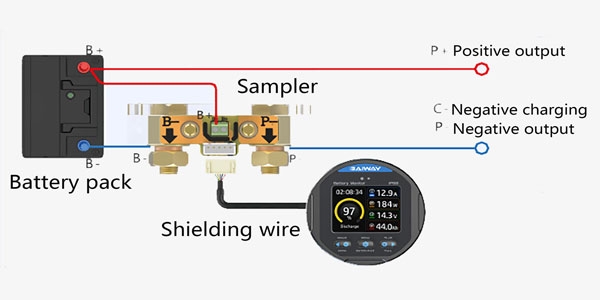

Wiring Method
Q1: What is the Electric Battery Capacity Indicator used for?
A1: The Electric Battery Capacity Indicator is a battery monitor designed to measure and display real-time battery capacity, voltage, current, and state of charge (SOC). It works as a battery gauge and coulometer, helping users clearly understand remaining power, energy usage, and system status. This allows better battery management, prevents over-discharge, and improves overall energy efficiency in daily and industrial applications.
Q2: Which battery systems are compatible with this battery monitor?
A2: This battery capacity indicator supports a wide range of rechargeable battery systems, including lithium batteries, LiFePO4 batteries, lead-acid batteries, and NiMH batteries. It is suitable for both low-voltage and medium-voltage systems and can be used in 12V, 24V, and higher voltage battery setups, making it a flexible solution for various energy storage and power management needs.
Q3: What applications is this battery gauge suitable for?
A3: The device is widely used in RV power systems, marine battery monitoring, electric vehicles, solar energy storage systems, and backup power supplies. It provides reliable SOC battery monitoring and real-time energy tracking, making it ideal for mobile, off-grid, and industrial environments where accurate battery status is critical for system safety and performance.
Tips: How to Choose the Right Electric Battery Capacity Indicator?
- Battery type compatibility. Choose a battery monitor that supports your system, such as a lithium battery, LiFePO4 battery, lead-acid battery, or NiMH battery. Correct compatibility ensures accurate battery capacity indicator reading, stable battery gauge performance, and precise SOC calculation.
- Current range selection. Select an appropriate shunt (50A, 100A, or 350A) based on system load. Low-current systems require smaller ranges, while RV, marine, and industrial systems need higher-range battery monitor configurations for stable battery level indicator and coulometer performance.
- Installation environment. For outdoor, marine, or vehicle applications, IP68 waterproof protection is essential. It ensures the battery capacity indicator operates reliably under vibration, humidity, dust, and temperature changes, maintaining a stable battery level meter and battery gauge performance in harsh conditions.
- Monitoring functions required. Different applications may require different features, such as a battery charge indicator, battery state of charge display, real-time voltage/current monitoring, remaining runtime estimation, and battery level indicator alerts. Choose a battery monitor based on whether basic display or full coulometer functionality is needed.
