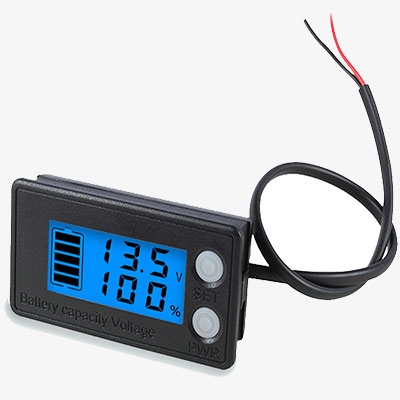

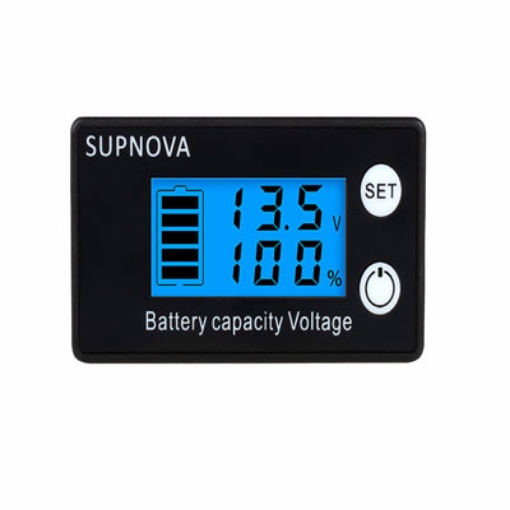

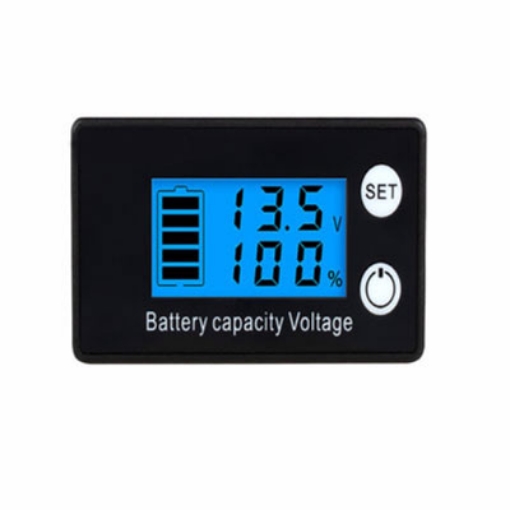

Rugged digital battery gauges are designed for 24V/48V lead-acid or lithium battery banks. It is fully waterproof and easy to install, showing real-time charge level and voltage on a clear blue screen. No complex wiring is required, making it ideal for electric vehicles and other mobile equipment.

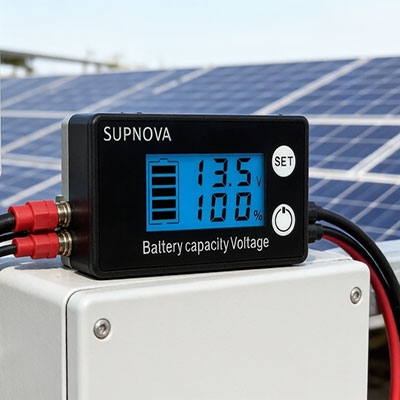

Battery voltage & capacity monitoring
- Measures DC voltage from 7V to 68V (compatible with 12V/24V/36V/48V systems).
- Displays remaining battery capacity (percentage + bar graph) in real time.
- Accuracy of ±1% with a refresh rate of 500ms.

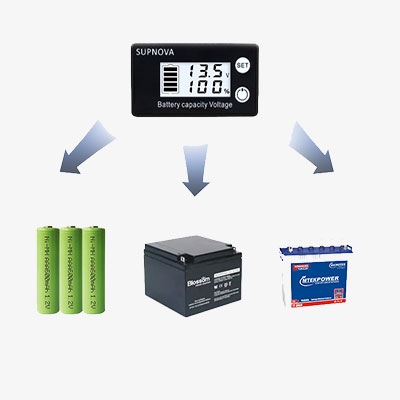

- Works with lead-acid, lithium, LiFePO4, and deep-cycle batteries.
Low resistance fault diagnosis
- Measures low resistance from 0Ω to 0.08Ω.
- Quickly detects loose connections, blown fuses, and poor solder joints.
- Helps identify aging or oxidized battery connectors.
- No need for extra tools – all-in-one device.
Smart calibration & custom settings
- Rear potentiometer hole for manual voltage calibration, ensuring long-term stability.
- On-board button menu: set custom high voltage and low voltage alerts.
- Supports non-standard lithium battery packs (e.g., 7-cell, 13-cell).
- Parameters are automatically saved, and there is no loss after powering off.
Applications
The SISCO waterproof battery indicator is ideal for a wide range of DC systems, including golf carts, boats, RVs, solar installations, and inverters. It also works well with electric vehicles, medical devices, and portable instruments. Reliable and easy to read, it suits both indoor and outdoor use.
Inverters
Golf Carts
RVs
Solar Installations
| Model | SISCO-BI-JX-6133 |
| Voltage Measurement Range | DC 7 – 68 V |
| Resistance Measurement Range | 0 – 0.08 Ω |
| Working Current | ≤15 mA |
| Standby Current | <5 mA |
| Measurement Accuracy | ±1% |
| Refresh Rate | 500 ms |
| Display Type | LCD (blue backlight) |
| Display Content | Battery capacity (bars + percentage) / Voltage (V) |
| Waterproof Rating | PX7 (fully waterproof, anti-corrosion) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Potentiometer Calibration | Yes (rear access hole) |
| Custom Voltage Thresholds | User-programmable high/low alerts |

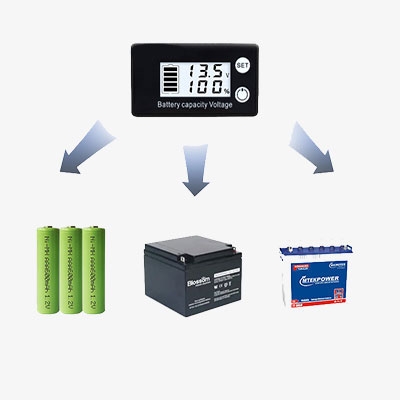

| Battery Compatibility | Lead-acid, Lithium (Li-ion), LiFePO4, Deep cycle |
| System Voltages Supported | 12 V / 24 V / 36 V / 48 V (7–68 V actual) |
| Dimensions (L × W × H) | 61.3 × 33.3 × 13.5 mm |
| Cutout Size | 58.5 × 28.5 mm |
| Weight (waterproof version) | 27 g |
| Cable Length (standard) | 30 cm |
| Cable Length (optional) | 1 m |
| Housing Material | ABS + sealed epoxy |
| Mounting Type | Panel mount (flange) |
| Polarity Protection | Yes (reverse connection safe) |
| Certification | CE, RoHS (pending) |

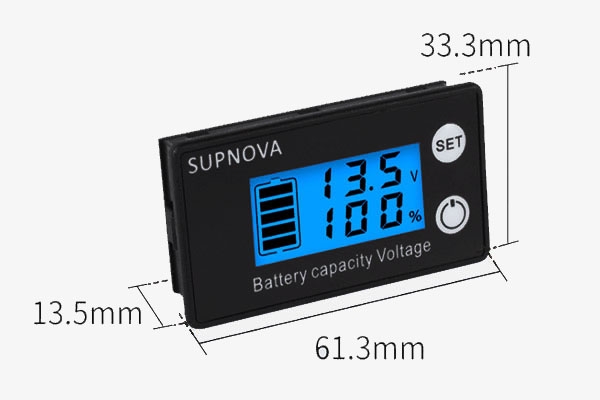

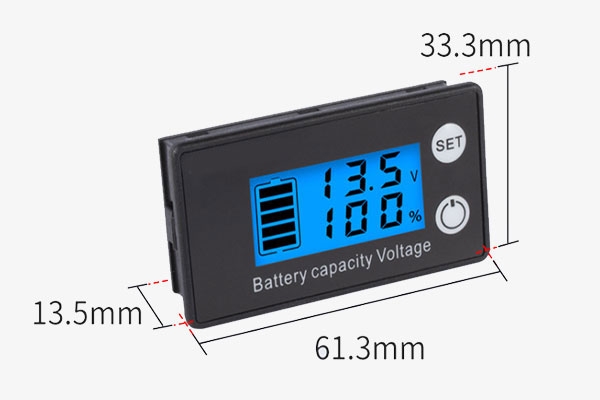

Dimension (unit: mm)
Q1: Can this battery indicator work with both 24V and 48V systems?
A1: Yes. The SISCO waterproof battery indicator measures DC voltage from 7V to 68V, so it fully supports 24V, 48V, as well as 12V and 36V systems. No additional converter is needed.
Q2: Is the device truly waterproof? Can I use it on a boat or in heavy rain?
A2: Yes, it is rated PX7 (fully waterproof and corrosion-resistant). The housing is sealed with epoxy, making it safe for marine environments, golf carts exposed to rain, and outdoor solar installations.
Q3: How do I calibrate the voltage reading if it becomes inaccurate over time?
A3: Use a small screwdriver to adjust the potentiometer through the rear calibration hole while measuring a known stable voltage. The calibration is simple and does not require special tools.
Tip: What does the battery capacity percentage mean?
The percentage shown on the SISCO battery indicator is calculated based on the real-time voltage and your preset low/high thresholds (e.g., 10.5V for empty, 14.6V for full). It is not a coulomb counter, so it works best with lead-acid and lithium batteries that have a stable voltage curve. For accurate readings, make sure to set the correct battery type and calibrate the voltage via the rear potentiometer.
