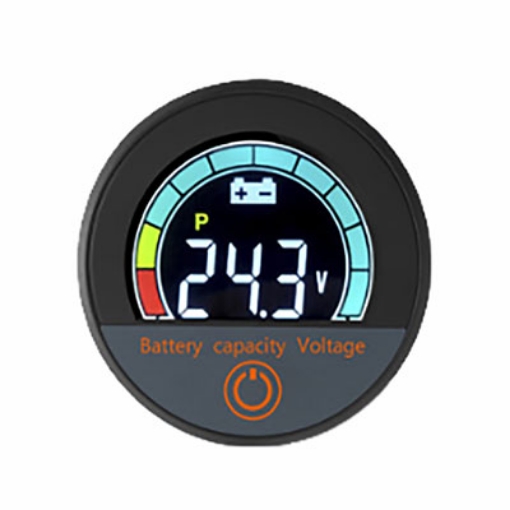

This digital waterproof round battery charge indicator works with lead-acid, lithium, and LiFePO4 from 8V to 100V. Its LCD screen shows state of charge (SOC) and voltage. Low-voltage warning and power-off memory ensure reliable daily use for cars, golf carts, boats, and RVs.
Wide voltage measurement & multi-battery compatibility
- This digital battery charge indicator measures DC voltage from 7V to 100V, covering 12V, 24V, 36V, 48V, 60V, 72V, and 84V systems with a resolution of 0.01V and accuracy of ±0.02%.
- It is compatible with lead-acid, ternary lithium, and LiFePO4 batteries, making it a universal solution for cars, golf carts, boats, RVs, and solar systems.

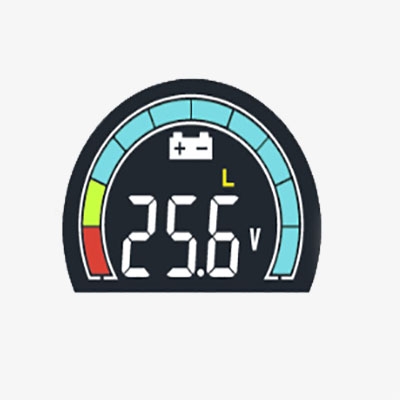

- The wide-angle LCD color screen simultaneously displays state of charge (SOC) as a remaining percentage and real-time voltage, with a working current as low as ≤15mA.
- It features an optional temperature sensor from -20°C to 80°C, allowing users to monitor battery thermal conditions for added safety.
- The meter can be easily switched between different battery types and voltage configurations via a single button, with all settings saved by built-in power-off memory.
Smart power management & reliable protection
- The IP68 waterproof round housing is fully sealed, allowing the meter to operate reliably in rain, dust, and high-humidity environments such as boats, golf carts, and RVs.
- Double-click the button to turn off the display and enter ultra-low power sleep mode, significantly extending battery life when monitoring is not needed.
- It has a built-in low-voltage warning function: when the battery voltage drops below the preset threshold, the screen flashes to alert the user, preventing over-discharge damage.
- The meter automatically saves the last used settings (battery type, voltage range, display preference) after power-off, eliminating the need to reconfigure each time.
- Short-press the button to cycle through display modes; long-press to enter setup mode – all operations are controlled by a single button for simple and intuitive use.
Applications
This battery meter helps prevent unexpected power loss in vehicles and equipment that rely on lead-acid or lithium batteries. It is especially useful for off-grid setups, weekend boating trips, and fleet operations where knowing exact battery status extends runtime and avoids costly downtime.
Boats
Electric Vehicles
Floor Sweepers
Solar Power Systems
| Model | SISCO-BI-5918 |
| Display | Wide-angle LCD color screen |
| Voltage Measurement Range | DC 7V – 100V |
| Voltage Resolution | 0.01V |
| Voltage Accuracy | ±0.02% |
| Resistance Accuracy | ±0.1% |
| Measurement Accuracy | ±(0.01% + 1) |
| Working Current | ≤15mA |
| Standby (Sleep) Mode Current | Negligible (display off) |
| Battery Types Supported | Lead-acid (12V/24V/36V/48V/60V/72V/84V), Ternary lithium, LiFePO4 |
| Low Voltage Warning | Yes (screen flashing) |
| Power-off Memory | Yes |
| Waterproof Rating | IP68 (fully sealed) |
| Operating Temperature | -20°C to 80°C (optional temperature sensor) |
| Mounting Type | Panel / Flush mount |
| Diameter | Approx. 54.5 mm (2.14 in) |
| Thickness | Approx. 17.8 mm (0.70 in) |
| Weight | Approx. 45 g (1.59 oz) |
| Input Power | DC 8V – 100V (directly from monitored battery) |

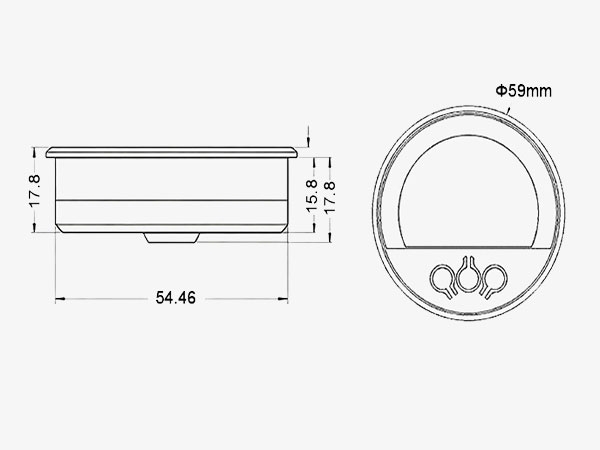

Dimension (unit: mm)
Q1: Can this battery meter work with both lithium and lead-acid batteries?
A1: Yes. It supports lead-acid (12V-84V), ternary lithium, and LiFePO4.The default setting is ternary lithium 3S, but you can easily switch battery types via the button.
Q2: Is the meter truly waterproof?
A2: Yes. The round housing is fully sealed with an IP68 rating, meaning it can withstand rain, splashing, dust, and even short-term immersion. It is designed for outdoor and marine environments.
Q3: Does the meter remember my settings after power is disconnected?
A3: Yes. It has built-in power-off memory that automatically saves your battery type, voltage range, and display preferences. You won‘t need to reconfigure after each power cycle.
Tips: How to get accurate readings and maintain your meter?
Setting the correct battery type before first use is essential because the meter cannot auto-detect your battery chemistry. A wrong setting will cause false capacity readings and incorrect low-voltage alarms. You must manually select lead acid, ternary lithium, or LiFePO4 and match your system voltage or series number. For ongoing accuracy, mount the meter in a dry location away from heat and vibration. If the screen becomes unresponsive, double-click the button to wake it from sleep mode. Clean the housing only with a soft, damp cloth and avoid solvents or high-pressure water to protect the IP68 seal.
